3M Products & Supplies

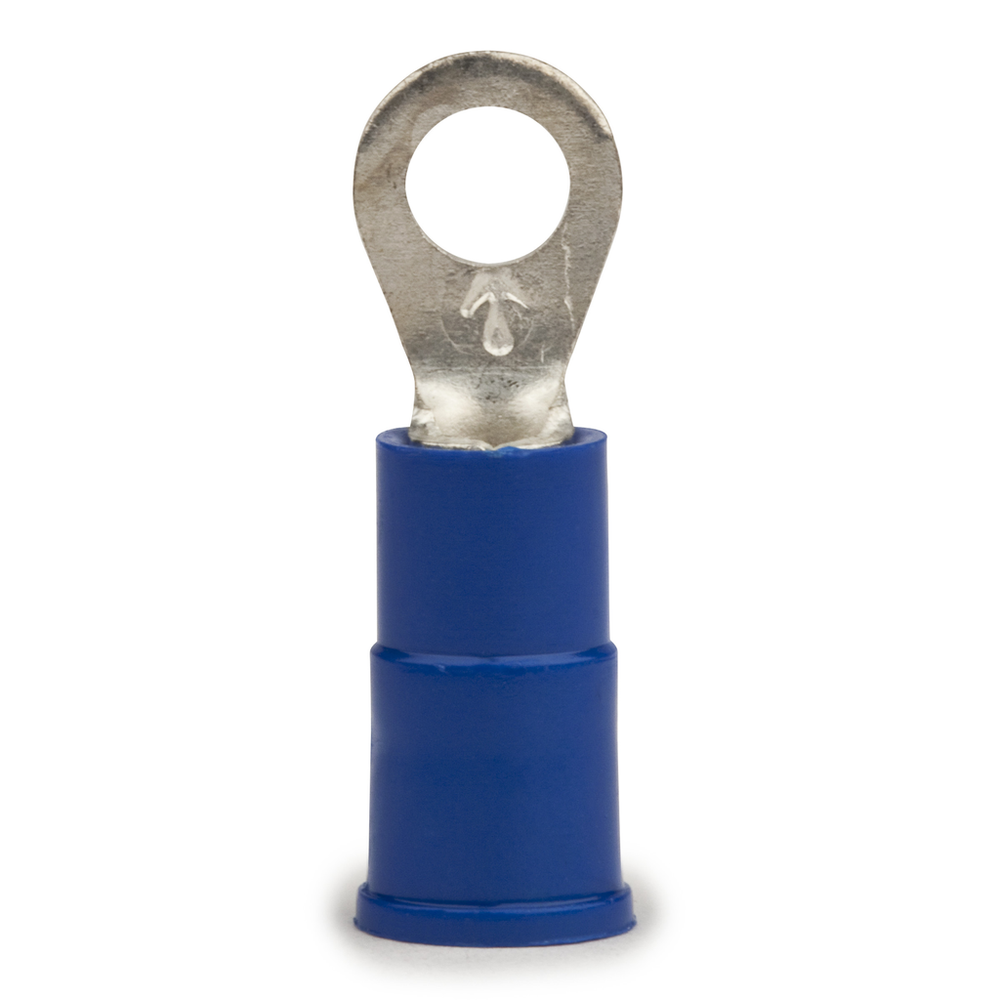

3M™ Ring Tongue, Vinyl Insulated Butted Seam 22-18, 94727, 11-8-P - 7010397274

Sold As: 10-Pack
SKU: 7010397274
MPN: 7010397274
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007947271
3M ID: 80611252273
MPN: 94727
$146.84 ($14.68 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Downloads

Specifications

Barrel StyleBrazed
Minimum Stud Diameter (Metric)4.0
UL File NumberE23438
Maximum Operating Temperature (Celsius) UOMDegree
Stud Size0.164 in
Country of OriginUnited States
Terminal StyleStandard
Maximum Conductor Size (Imperial)18 AWG
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation MaterialVinyl
Minimum Stud Diameter (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
Minimum Conductor Size (Imperial)22 AWG
Minimum Stud Diameter (Metric) UOMmm
Ring TypeStandard
Minimum Conductor Size (Metric)0.326 mm²
Maximum Conductor Size (Metric)0.823
Connection TypeCrimp
Maximum Operating Temperature (Celsius)175.0
Terminal TypeRing
