3M Products & Supplies

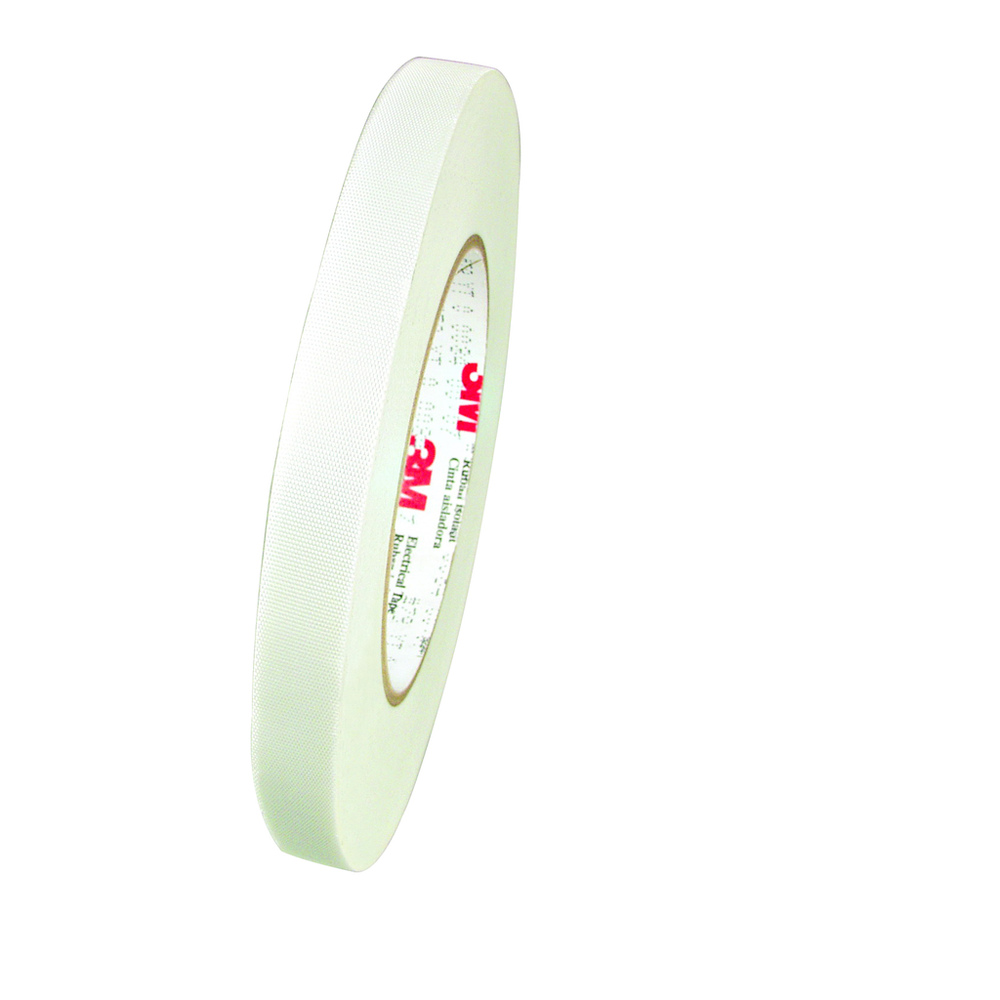

3M™ Saturated Glass Cloth Tape 90, White, 1/2 in (log roll of 24) - 7000132551

SKU: 7000132551
MPN: 7000132551
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138361365
3M ID: 80610750103
5 Digit UPC: 36136
$940.50 each
Hurry up! Current stock:

Product Description

3M™ Tape 90 is a 7 mil thick, glass cloth, electrical tape. This tape is designed for providing connections in motors and electrical gear. This tape is 600V rated and withstands a temperature range of 32 to 311 °F (0 to 155 °C).

Features

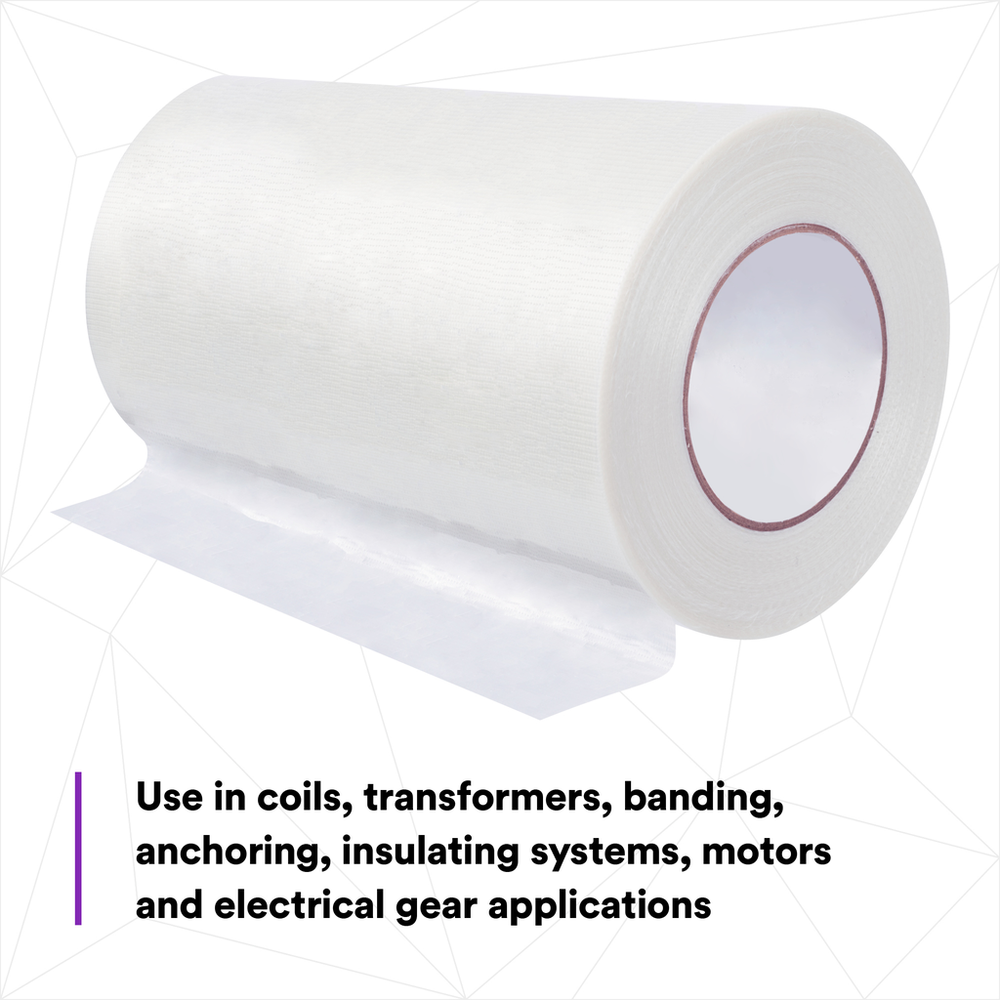

  • Used as a high-temperature, insulating tape in coils and transformers

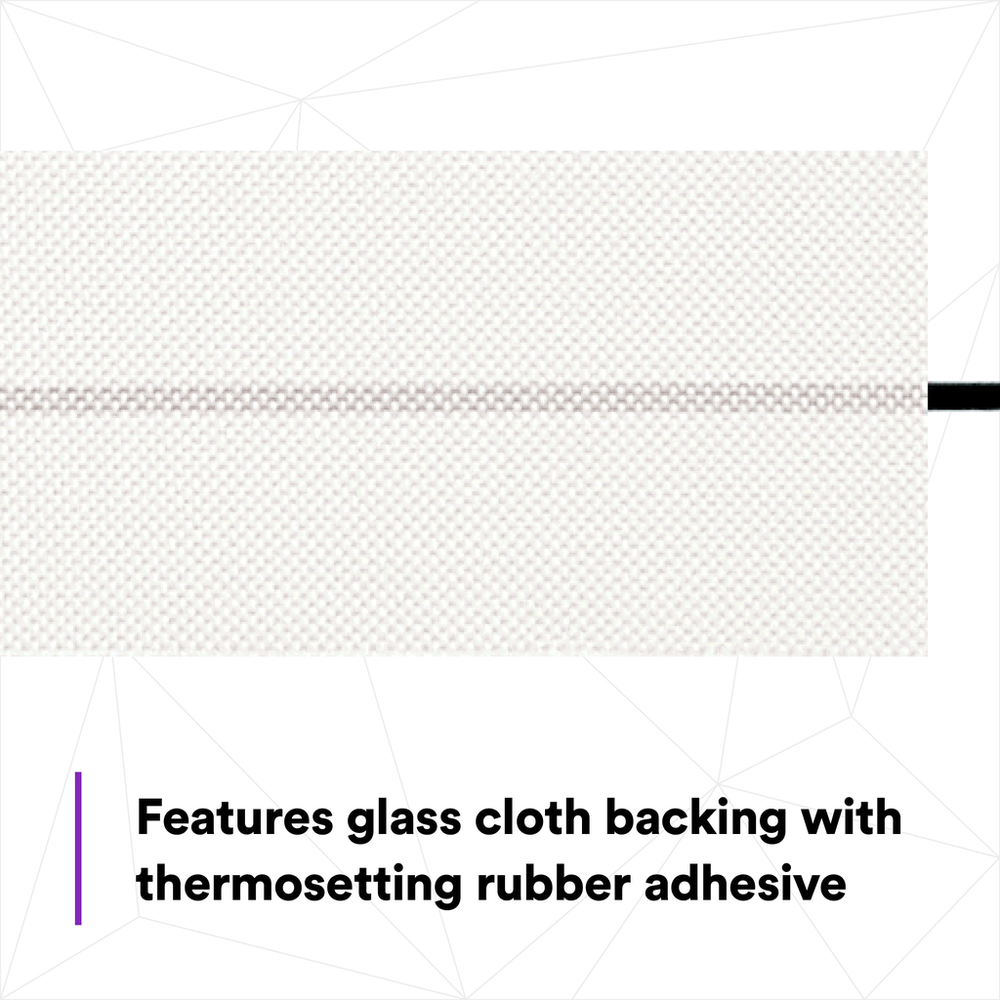

  • Saturated glass cloth backing resists fraying and raveling
  • Highly conformable with a thermosetable, rubber-resin adhesive
  • Withstands a temperature range of 32 to 311 °F (0 to 155 °C)
  • UL Listed and RoHS 2011/65/EU Compliant
  • Provides excellent absorption of varnishes and resins

Specifications

Shelf Life1825
Country of OriginUnited States
Overall Width (Imperial) UOMin
Adhesive TypeThermosetting Rubber
Total Tape Thickness without Liner (Imperial)8.0
Overall Length (Imperial)60.0
Overall Width (Metric)616.0
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Imperial) UOMyd
Overall Width (Metric) UOMmm
Overall Width (Imperial)24.25
Specifications MetRoHS 2011/65/EU
Backing (Carrier) MaterialGlass Cloth
Total Tape Thickness without Liner (Metric)0.2
Total Tape Thickness without Liner (Metric) UOMmm
Product ColorWhite
