3M™ Scotchcast™ Flame-Retardant Compound 2131, 1 Bottles/Case - 7010401010

Sold As: 3-Pack
SKU: 7010401010
MPN: 7010401010
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128608456
3M ID: 80611611700
5 Digit UPC: 60845
$74.21 ($24.74 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchcast™ Electrical Resin 260 is a 1 part, powder resin used for coating flat surfaces, corners and high points. This general purpose epoxy based, powder resin has a very low viscosity property, which makes it easy to infuse on any surface. The resin melts when it's heated, it flows to a controlled extent and then cures, bonding to the surface in a uniform, thick coating.

Features

  • Has 12 to 16-second gel time at 380 °F (193 °C)
  • UL Listed, EIS Approved and RoHS 2011/65/EU Compliant

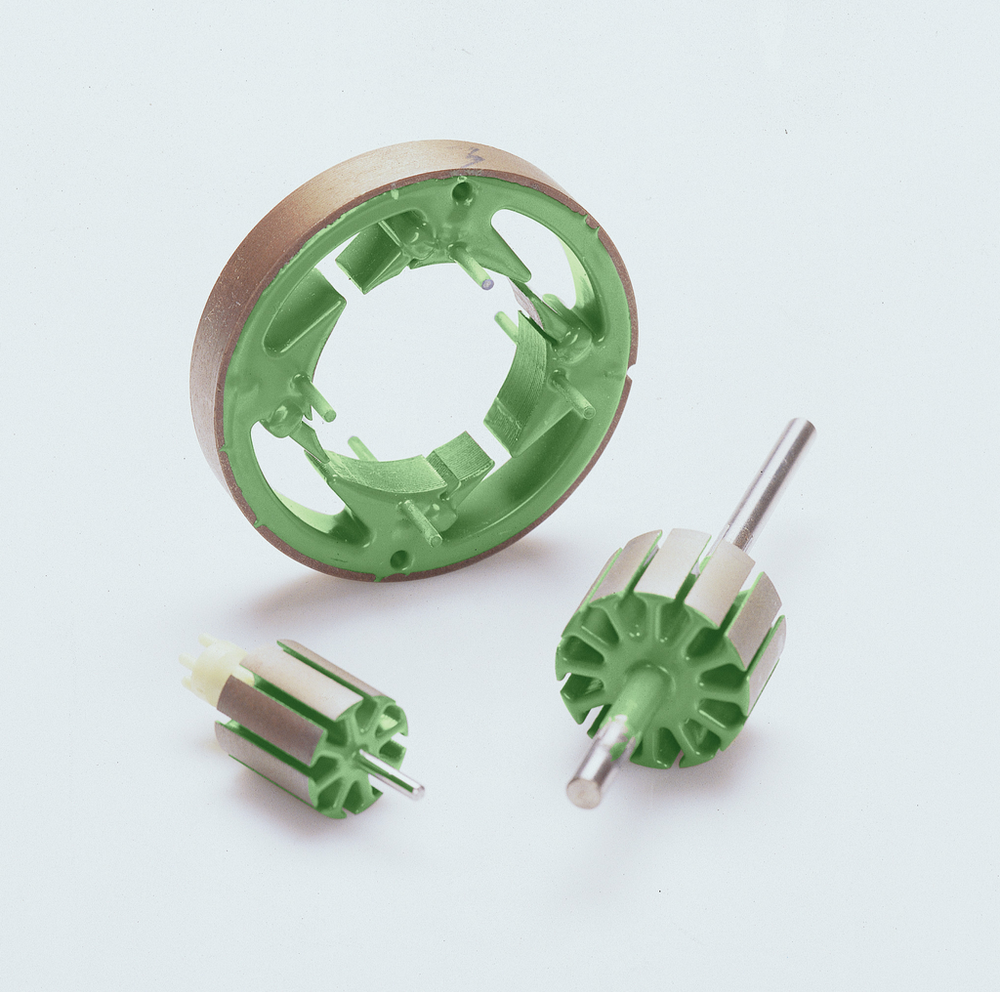

  • Useful for moisture-proofing and insulating armatures, stators, buss bars and toroid cores
  • Heat-, chemical- and moisture-resistant
  • Compatible with electrostatic spray, fluid bed dip and venturi spray
  • Withstands temperatures of 356 °F (180 °C)

Downloads

Specifications

Country of OriginUnited States
MaterialEpoxy
Cure MethodOven
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Mining Sector ApprovalNo
Applicable by Fluid Bed DipYes
Storage Time in Months24.0
ApplicationUtilities & Power: Coatings for Insulation
Applicable by Electrostatic Fluid BedYes
FlexibilityRigid
Applicable by Electrostatic SprayYes
Resin TypePowder
Voltage RatingInsulating
Maximum Operating Temperature (Celsius)180.0
Applicable by Venturi SprayYes
Temperature RatingClass H (
Flame RetardantNo
Product TypeElectrical Resin
Maximum Operating Temperature (Celsius) UOMDegree
What Needs to be CoatedBus Bar
