3M Products & Supplies

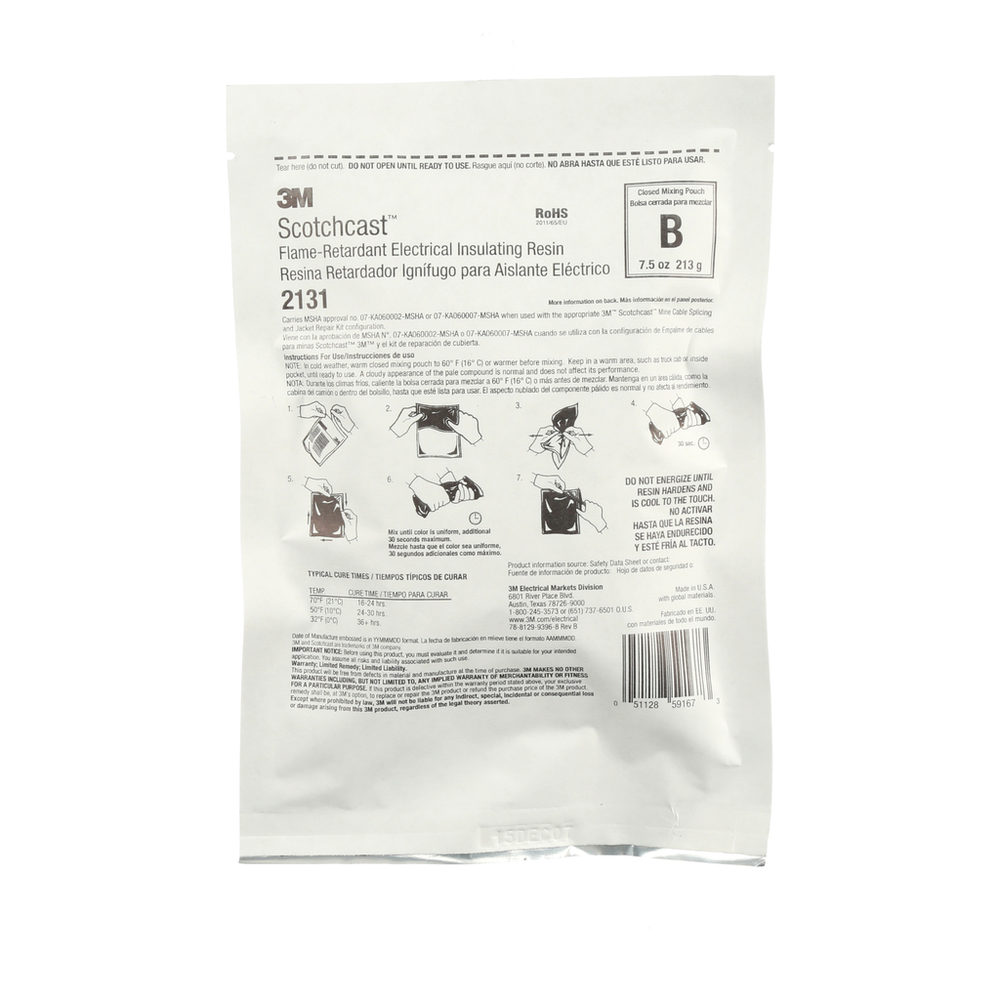

3M™ Scotchcast™ Flame-Retardant Compound 2131B, 213 grams, 10 /Case - 7000006239

Sold As: 10-Pack
SKU: 7000006239
MPN: 7000006239
For an accurate lead time please contact us
UPC: 00051128591666
3M ID: 80611468259
5 Digit UPC: 59166
$432.05 ($43.20 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchcast™ Flame-Retardant Compound 2131 is a 2 part, flame retardant compound, useful for coating cable jackets when splicing or repairing mine and portable cables. This permanent, polyurethane, liquid type resin has a unique formulation used in rugged conditions. The high dielectric strength offers a very good electrical insulating property to the resin.

Features

  • Elongates 339% longer than its original size for easy insulation or wrapping
  • Typical hardness (ASTM D2240) - 82 Shore A
  • Useful for replacing or repairing the jacket on both single and multi core power cables
  • Flame-retardant
  • Has 17 minute gel time at 23 °C (73 °F)
  • Continuous temperature of 90°C (194 °F), overload temperature of 130 °C (266 °F)
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
MaterialPolyurethane
Container Size (Imperial)7.5 oz
Package Description2-part pouch
Net Weight (Metric) UOMg
Maximum Operating Temperature90ºC (194ºF) continuous; overload rating 130ºC (266ºF)
ApplicationSealing, electrical insulation and mechanical protection
Elongation UOM%
Net Weight (Imperial) UOMoz
Net Weight (Metric)213.0
Voltage ApplicationLow Voltage
Resin MatrixUnfilled
Cable Typemulti core, non shielded, polymeric insulated cable
Product TypeElectrical Resin
Net Weight (Imperial)7.51
Storage Time in Months36.0
Cure MethodRoom
Product Series2123
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Units per Case10.0
Dielectric Strength (V/mil)343 V/mil
Hardness82 Shore A
FlexibilitySemi-flexible
Product ColorBlack
Voltage1 kV
Voltage Rating0.6/1 kV
Minimum Operating Temperature (Celsius) UOMDegree
Mining Sector ApprovalYes
Maximum Operating Temperature (Celsius)90.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Flame RetardantYes
Maximum Operating Temperature (Fahrenheit)194.0
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)-40.0
