3M Products & Supplies

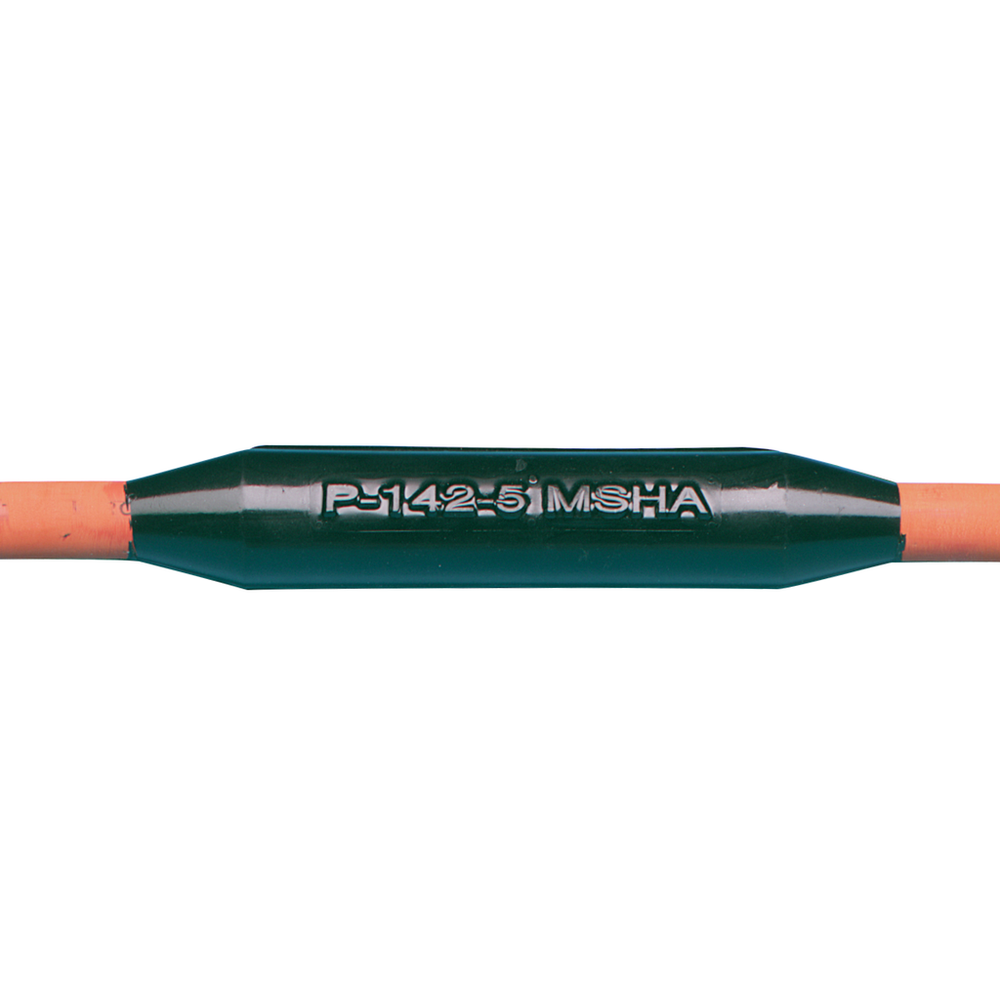

3M™ Scotchcast™ Flexible Splice 82-F1 (2131), 10 Kits/Case - 7000006240

Sold As: 10-Pack
SKU: 7000006240
MPN: 7000006240
For an accurate lead time please contact us
UPC: 00051128591765
3M ID: 80611468358
5 Digit UPC: 59176
$1,062.19 ($106.22 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchcast™ Flexible Power Cable Splicing Kits 82-F Series with3M™ Scotchcast™ Flame-Retardant Compound 2131, is designed for inline splicing on non shielded portable power cables and cords. The wet/dry flexible power cable splice kit is suitable for use on single and multi conductor cables, depending on the voltage rating.

Features

  • Suitable for use with compression inline connectors
  • Tough, yet flexible (semi-flexible)
  • Flame-retardant

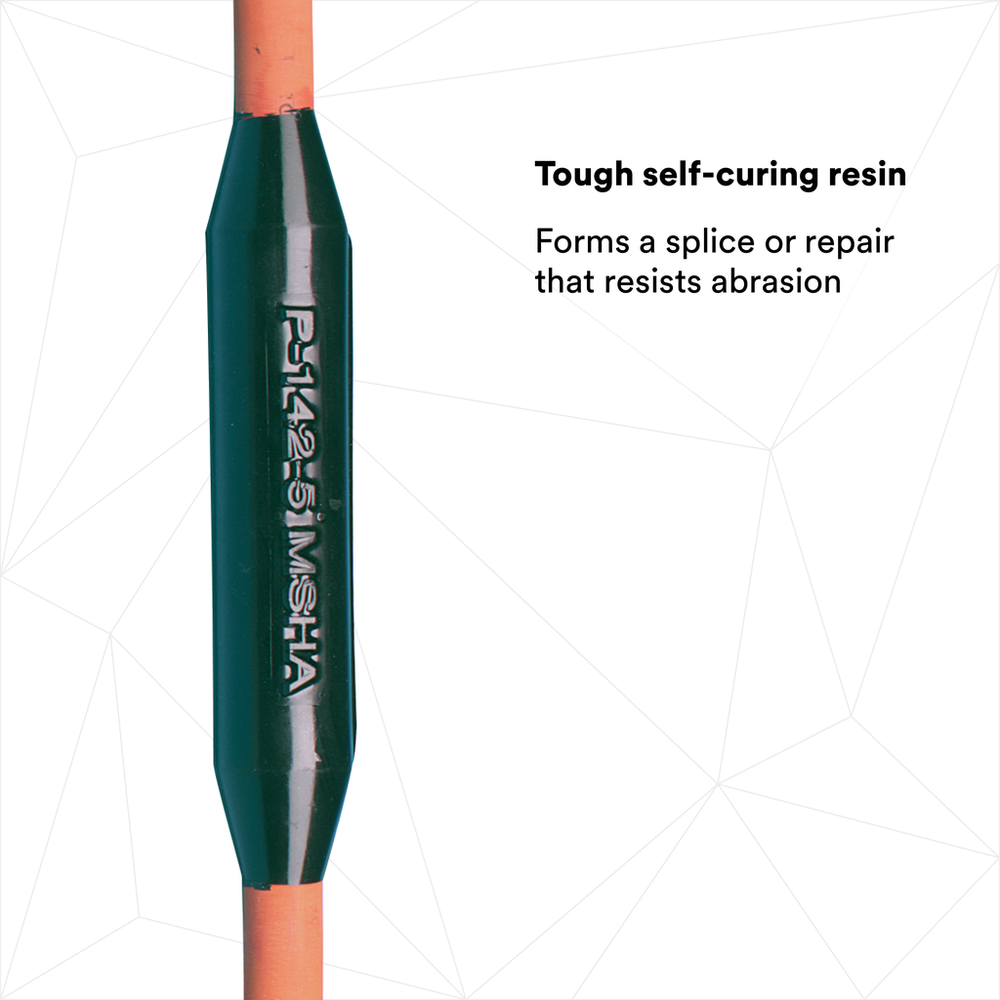

  • Self-curing resin for cable splice or repair

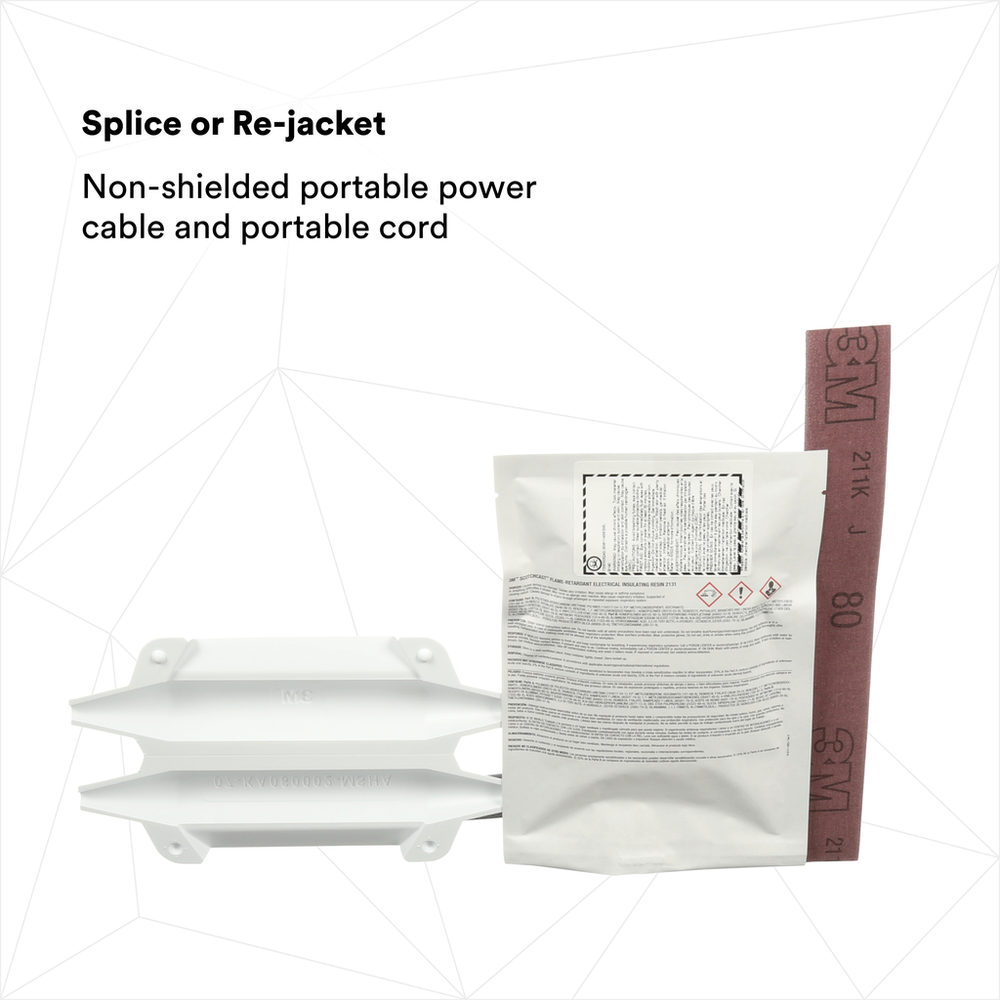

  • Designed to splice or re-jacket non-shielded portable power cable and portable cord

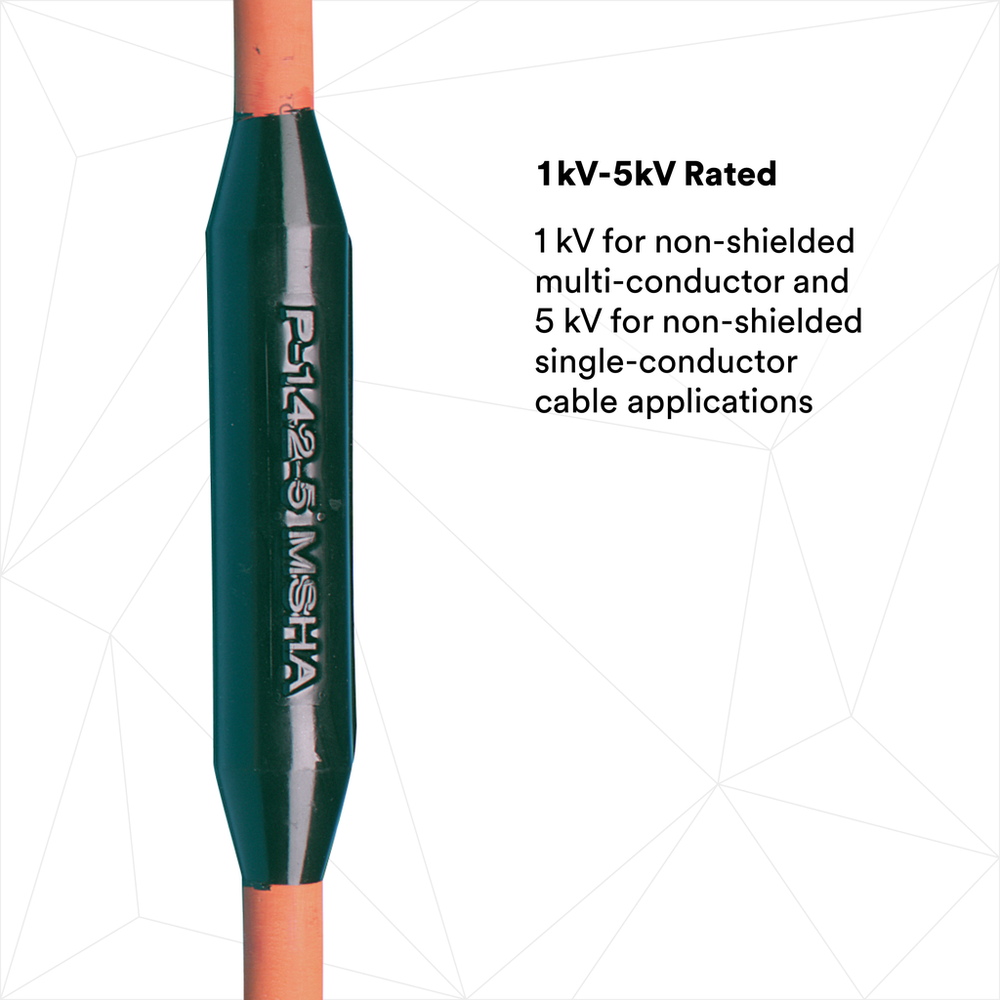

  • 1 kV-rated for multi-conductor and 5 kV-rated for single-conductor cable applications
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Insulation Outer Diameter (Imperial) UOMin
Indoor/OutdoorBoth

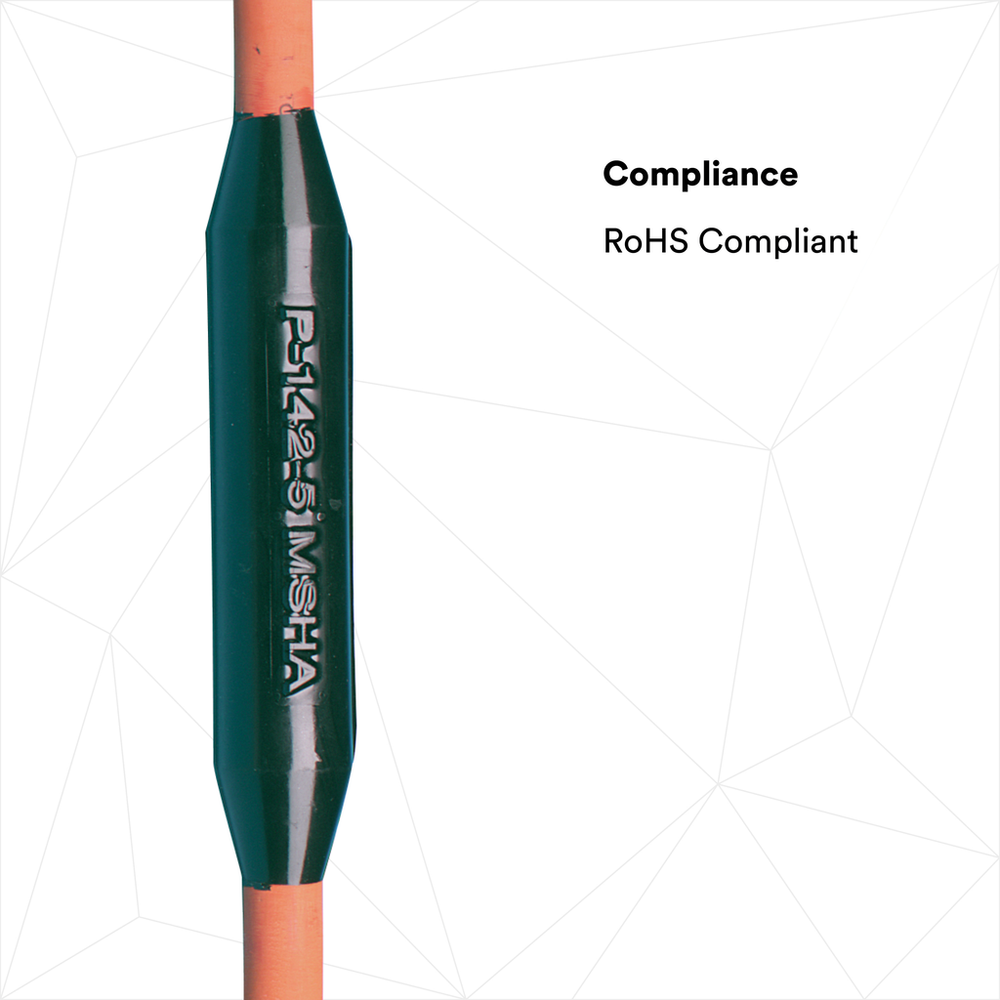

RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
ModelCast Resin
Cable Typemulti core, non shielded, rubber insulated reeling cables
Maximum Insulation Outer Diameter (Imperial)0.8
Insulation Outside Diameter Range0.25 - 0.80 Inch
Product Series82-B Series
Minimum Conductor Size (Imperial)6 AWG
Shelf Life UOMMonth
Maximum Conductor Size (Imperial)1/0 AWG
Minimum Conductor Size (Metric)16 mm²
Voltage Rating0.6/1 kV
Insulation Outside Diameter Range (Metric)6.0 - 20.0 mm
Cable ShieldingNon-shielded
Minimum Insulation Outer Diameter (Metric)6.0
Mining Sector ApprovalYes
Maximum Insulation Outer Diameter (Imperial) UOMin
Product ColorBlack
Minimum Insulation Outer Diameter (Imperial)0.25
Hardness82 Shore A
Product TechnologyResin
Dielectric Strength (V/mil)343 V/mil
Voltage ApplicationLow Voltage
Connection Max Outside DiameterMultiple Conductors - 0.90 inch
Maximum Insulation Outer Diameter (Metric) UOMmm
Maximum Conductor Size (Metric)50 mm²
Product TypeResin Splice
Maximum Operating Voltage5 Kilovolt
Voltage5 kV (single), 1 kV (multiple)
Minimum Insulation Outer Diameter (Metric) UOMmm
Maximum Insulation Outer Diameter (Metric)20.0
