3M Products & Supplies

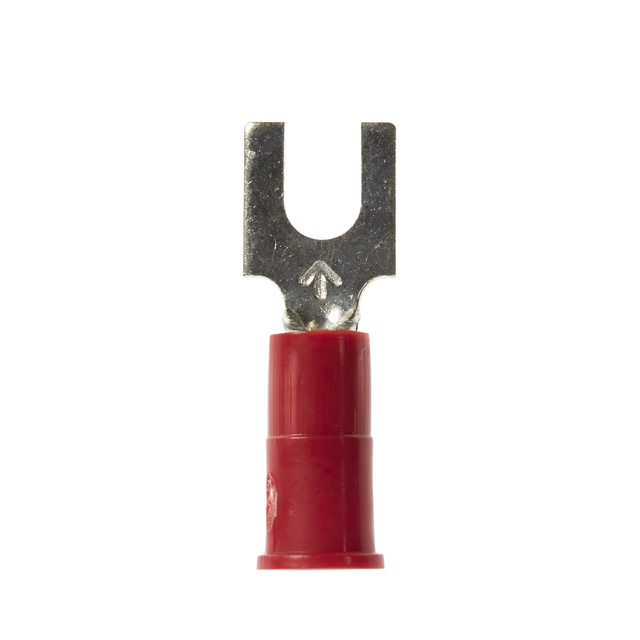

3M™ Scotchlok™ Block Fork Vinyl Insulated, 100/bottle, MVU14-6FBX, suitable for use in a terminal block, 500/Case - 7010398191

Sold As: 100-Pack
SKU: 7010398191
MPN: 7010398191
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128588222
3M ID: 80611464688
5 Digit UPC: 58822
$31.61 ($0.32 / Count)
Hurry up! Current stock:

Product Description

Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Conductor Size (Metric)1.31 mm²
Packaging100 per bottle
Maximum Insulation Outer Diameter (Imperial) UOMin
Terminal TypeFork
Clearance (C)0.25 Inch
Stud Diameter (Imperial)0.138
Stud Diameter (Metric)3.505
Minimum Conductor Size (Imperial)16 AWG
Stud Diameter (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)221.0
Stud Size#6
Units per Case500.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Imperial)14 AWG
Overall Width (Imperial)0.3
Barrel StyleButted
Overall Length (Imperial) UOMin
Overall Length (Imperial)0.85
Insulation MaterialVinyl
Maximum Insulation Outer Diameter (Imperial)0.17
Stud Diameter (Imperial) UOMin
Barrel Inside Diameter0.090 Inch
Maximum Conductor Size (Metric)2.08 mm²
Fork TypeBlock
Dimension E0.70 Inch
Maximum Operating Temperature (Celsius)105.0
Overall Width (Imperial) UOMin
UL File NumberE23438
Terminal StyleBlock
