3M Products & Supplies

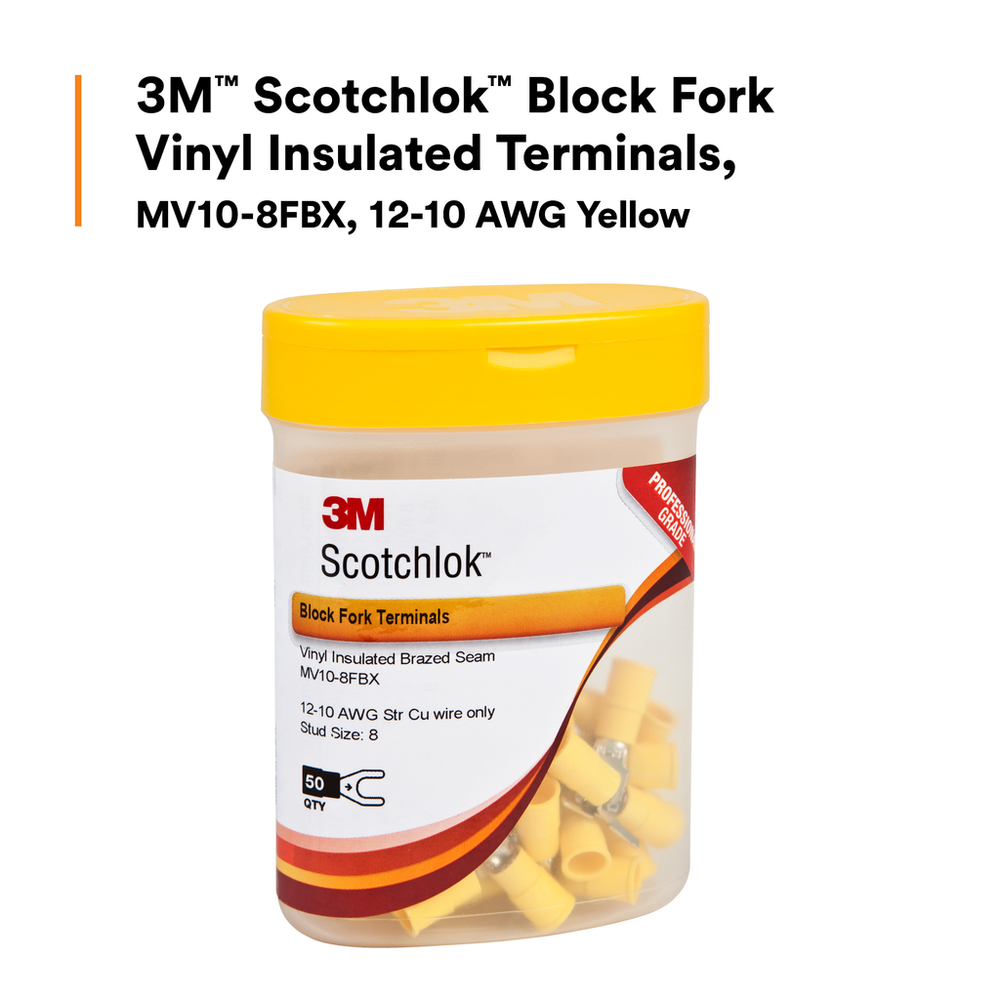

3M™ Scotchlok™ Block Fork Vinyl Insulated, 50/bottle, MV10-8FBX, 500/Case - 7000133342

Sold As: 50-Pack
SKU: 7000133342
MPN: 7000133342
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128587652
3M ID: 80611464118
5 Digit UPC: 58765
$48.70 ($0.97 / Count)
Hurry up! Current stock:

Product Description

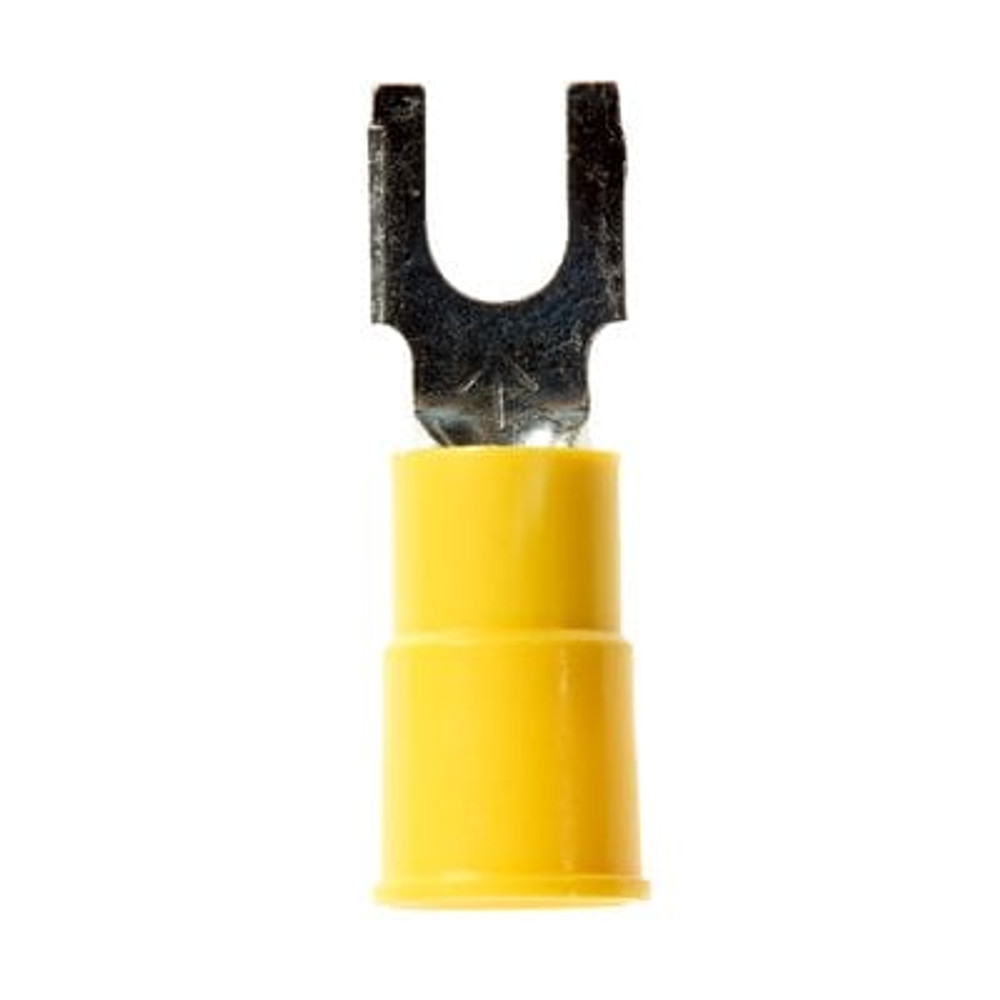

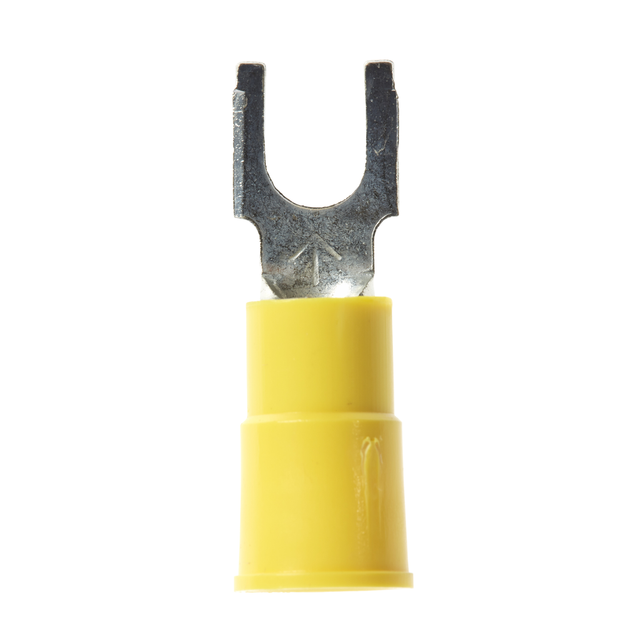

3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance

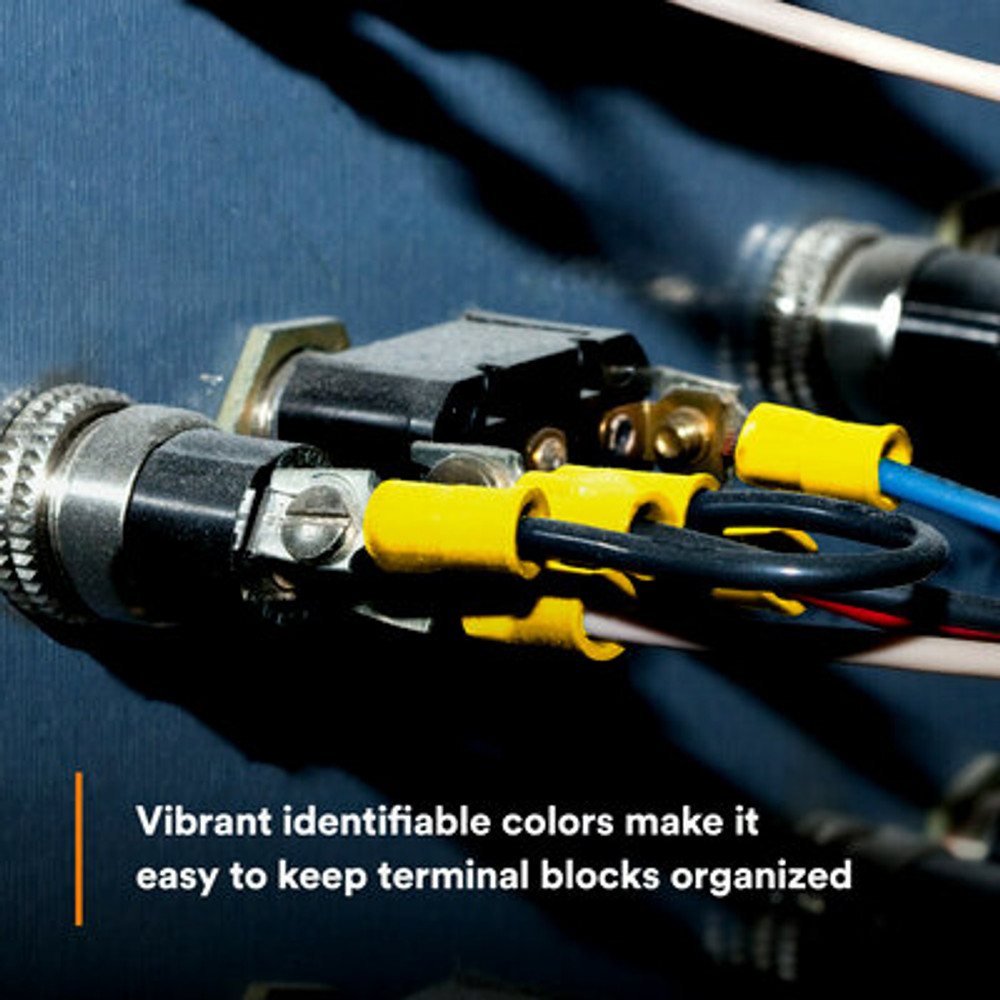

  • Suitable for use in a terminal block

Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Imperial)12 AWG
Overall Width (Metric) UOMmm
Overall Width (Imperial)0.32
Overall Length (Metric)26.162
Packaging50 per bottle
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Insulation Outer Diameter (Imperial)0.25
Overall Length (Imperial)1.03
Overall Length (Imperial) UOMin
Dimension E0.84 Inch
Barrel StyleBrazed
Maximum Operating Temperature (Fahrenheit)221.0
Barrel Inside Diameter0.135 Inch
MaterialETP Copper
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric) UOMmm
Maximum Insulation Outer Diameter (Metric) UOMmm
UL File NumberE23438
Maximum Operating Temperature (Celsius)105.0
Units per Case500.0
Maximum Insulation Outside Diameter0.145 in
Terminal StyleBlock
Clearance (C)0.29 Inch
Overall Width (Metric)8.128
Stud Size#8
Fork TypeBlock
Maximum Conductor Size (Metric)5.26 mm²
Maximum Insulation Outer Diameter (Metric)3.7
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Recommended Voltage Rating UOMV
Insulation MaterialVinyl
Overall Width (Imperial) UOMin
Maximum Conductor Size (Imperial)10 AWG
Maximum Recommended Voltage Rating600.0
Product ColorYellow
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Conductor Size (Metric)3.31 mm²
