3M Products & Supplies

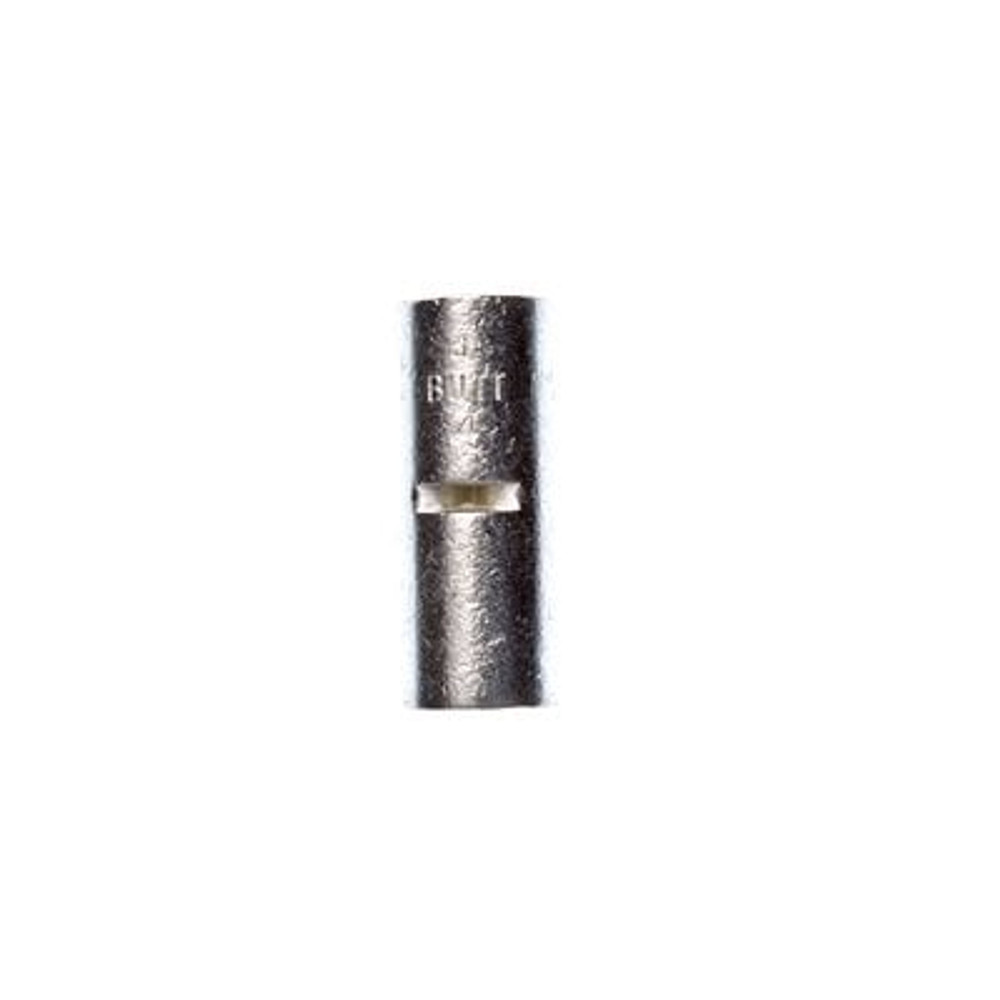

3M™ Scotchlok™ Butt Connector Non-Insulated, 10/bottle, M4BCX, built-in wire stop for correct positioning, 100/Case - 7100135217

Sold As: 100-Pack
SKU: 7100135217
MPN: 7100135217
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128587284
3M ID: 80611458730
5 Digit UPC: 58728
$552.15 ($5.52 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Brazed Seam Butt Connector ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel with a beveled mouth that guides the wire into position and withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Beveled mouth offers easy insertion of wires
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Built-in wire stop for correct positioning

Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Imperial)4 AWG
Overall Length (Imperial)1.13
Minimum Conductor Size (Imperial)4 AWG
Body MaterialCopper Alloy
Minimum Conductor Size (Metric)25 mm²
Overall Length (Imperial) UOMin
Connector TypeButt
Maximum Conductor Size (Metric)25 mm²
Insulation MaterialNon-insulated
