3M Products & Supplies

3M™ Scotchlok™ Butt Connector, Nylon Insulated w/Insulation Grip MNG18BCK, 22-18 AWG, 1000/Case - 7100163969

Sold As: 1000-Pack
SKU: 7100163969
MPN: 7100163969
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007013136
3M ID: 80610039333
5 Digit UPC: 1313
$973.90 ($0.97 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Made of copper for good conductivity and has tin plating for corrosion resistance
  • Built-in wire stop for correct positioning

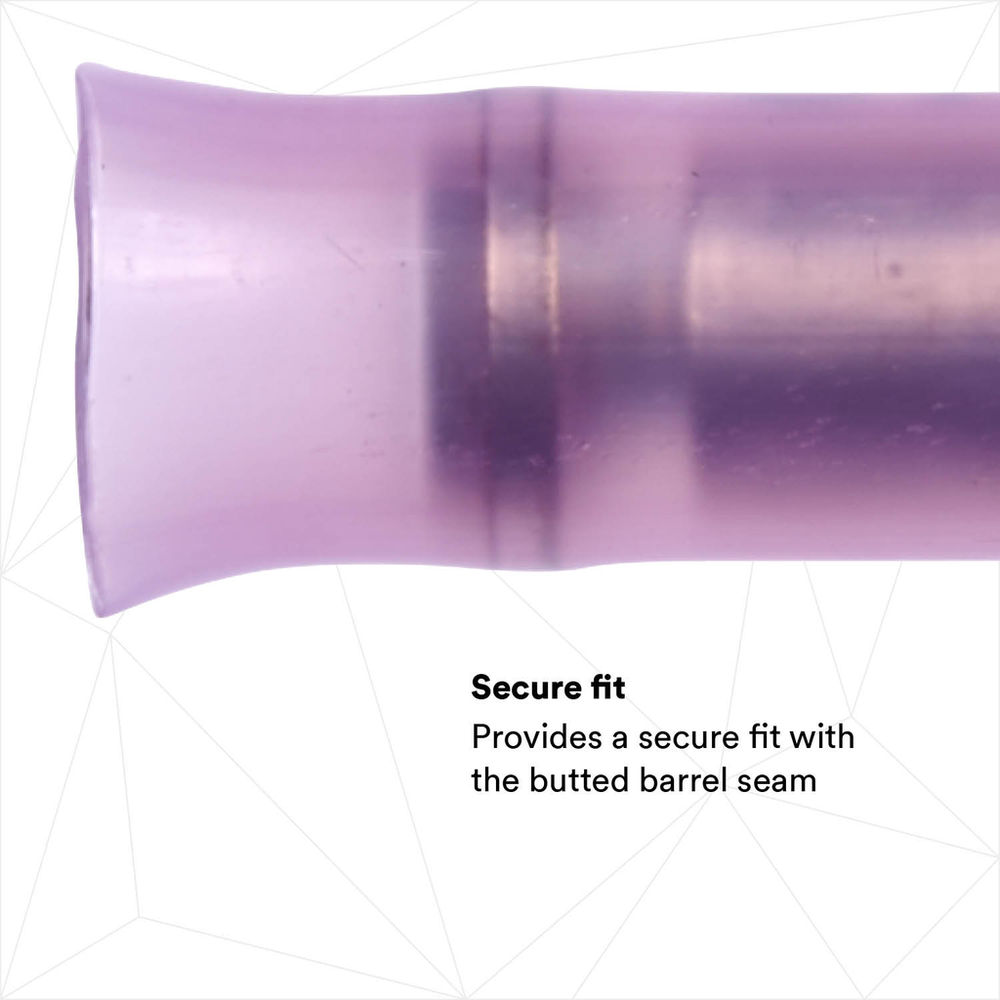

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Terminal StyleStandard
Maximum Conductor Size (Imperial)18 AWG
Connection Width (Metric)0.0
Overall Length (Imperial) UOMin
Maximum Conductor Size (Metric)1 mm²
Disconnect TypeFemale
Insulation MaterialNylon with Insulation Grip
Terminal TypeButt Connectors
Overall Length (Imperial)1.0
Minimum Conductor Size (Imperial)22 AWG
Fork TypeStandard
Connection Width (Imperial)0.0
Product ColorRed
Minimum Conductor Size (Metric).34 mm²
