3M™ Scotchlok™ Electrical IDC 314-POUCH, Pigtail, Self-Stripping, Blue, 22-14 AWG, 50 per pouch, 500 /Case - 7100166936

Name: 3M™ Scotchlok™ Electrical IDC 314-POUCH, Pigtail, Self-Stripping, Blue, 22-14 AWG, 50 per pouch, 500 /Case - 7100166936
Brand: 3M Products & Supplies
SKU: 7100166936
Price: 606.84 USD
Availability: InStock

Sold As: 500-Pack

SKU: 7100166936

MPN: 7100166936

Stock Item: Stock items typically ship within 2-3 business days

UPC: 10054007092305

3M ID: 80000209561

5 Digit UPC: 9230

$606.84 ($1.21 / Count)

Hurry up! Current stock:

Quantity:

Product Description

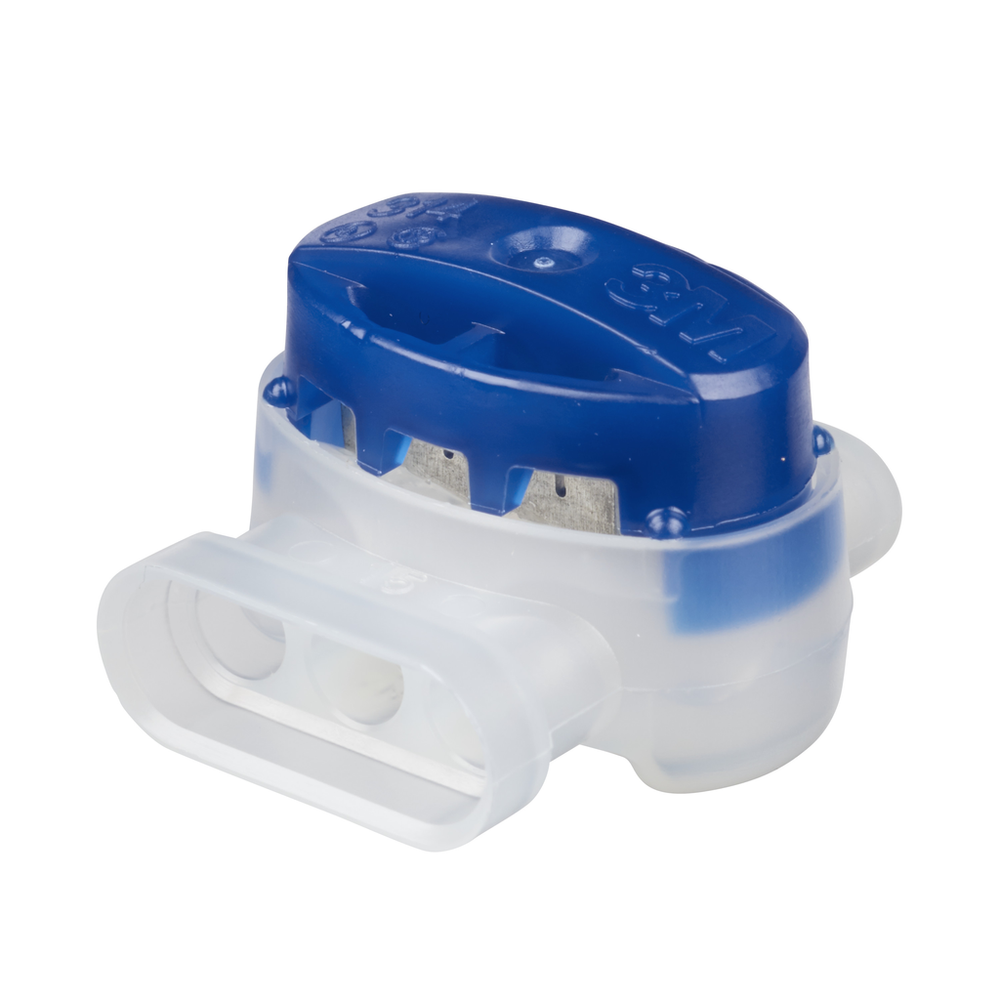

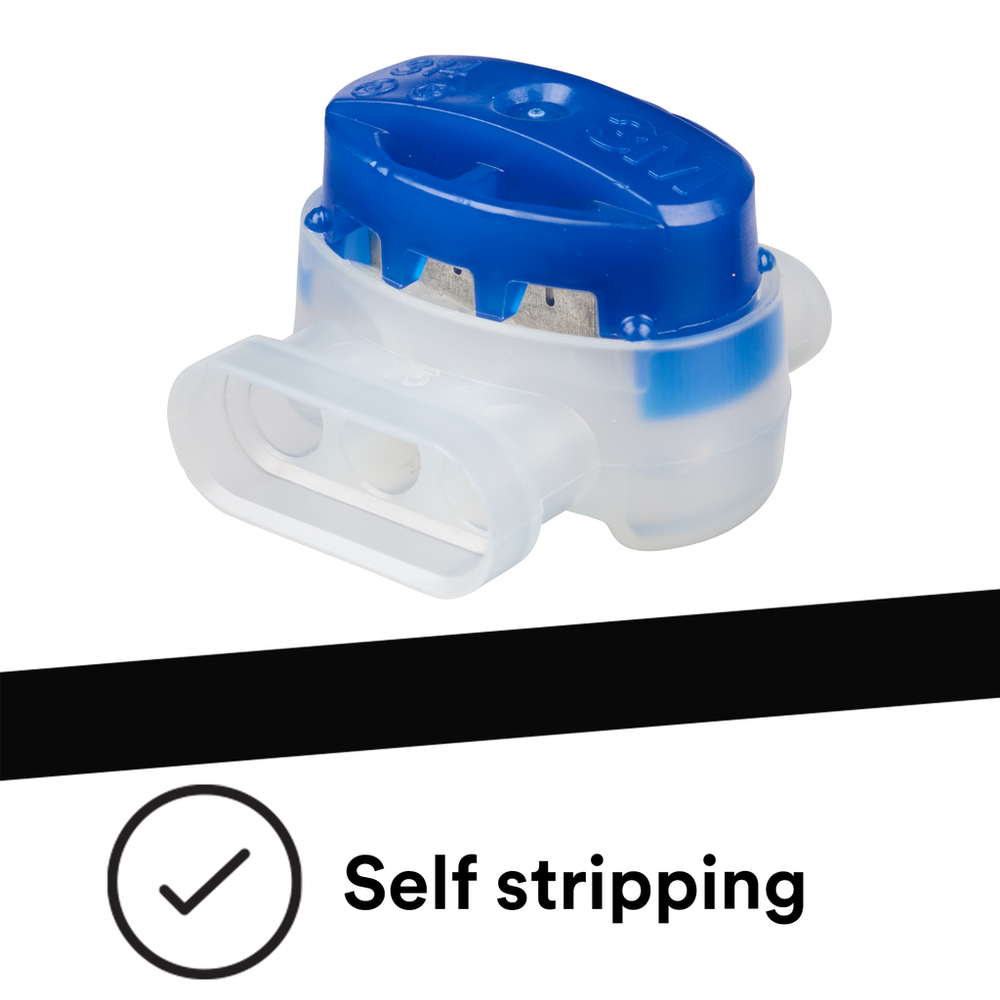

3M™ Scotchlok™ Insulation Displacement Connector 314 provides a dual element connection and moisture resistant seal with a mineral oil based grease. The connector is nylon insulated and used to connect 2 or 3 wires. It is self stripping, flame retardant and moisture resistant.

Features

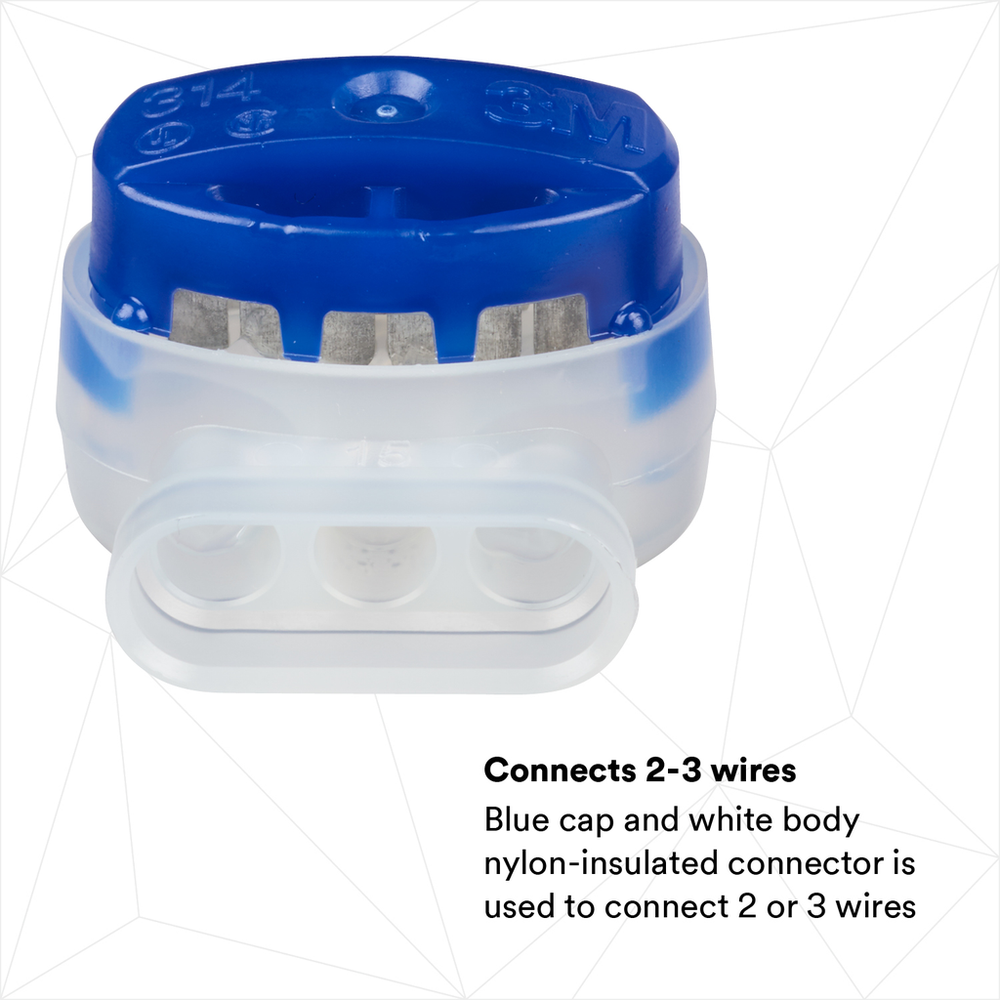

Blue cap and white body nylon-insulated connector is suitable to connect 2 or 3 wires
Brass element construction for good conductivity and tin plating for corrosion resistance

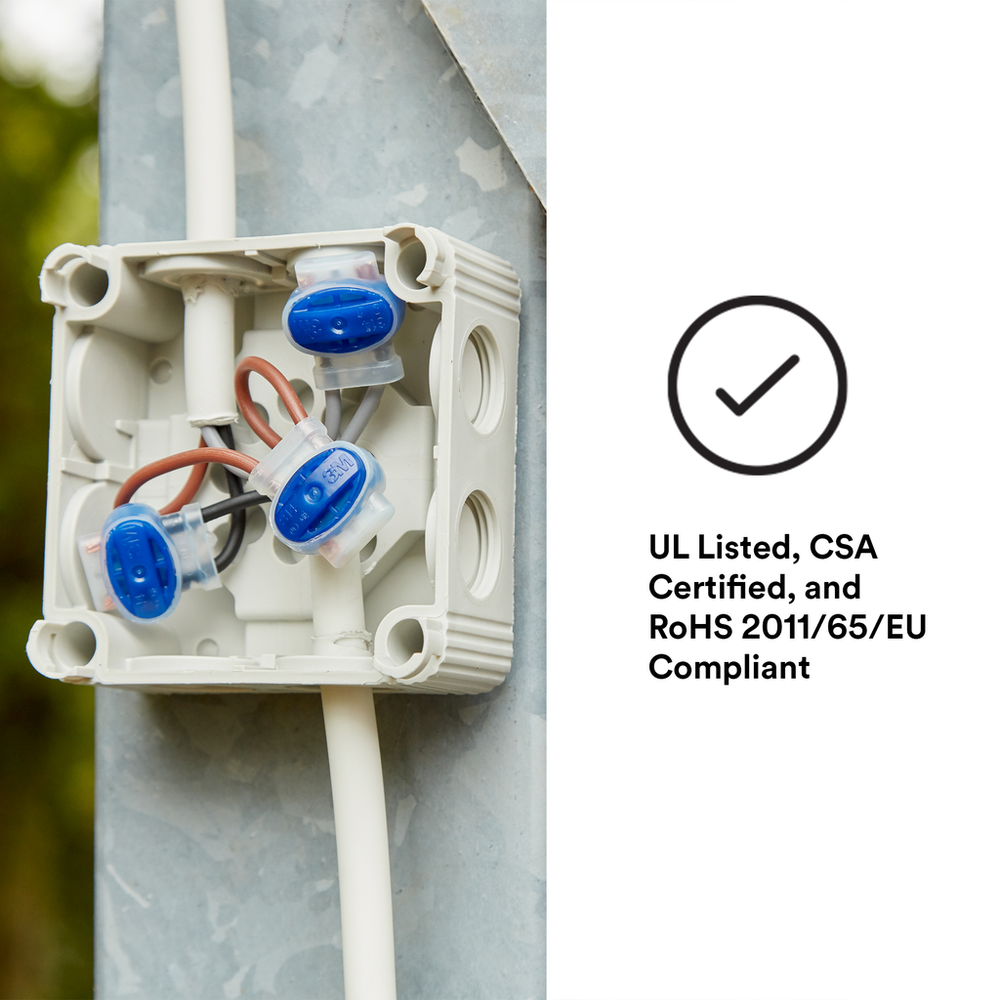

UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Accommodates 22 to 14 AWG solid/stranded

Spec Sheet

Downloads

Spec Sheet

Specifications

Country of Origin	United States
Insulation Color	cap blue, body white
Minimum Operating Temperature (Fahrenheit)	0.0
Wire Connector Type	IDC Connectors
UL File Number	E23438
Maximum Operating Temperature (Celsius) UOM	Degree
Flame Retardant	Yes
Interrupt Free Shifting	No
Run Maximum Insulation Outer Diameter (Imperial)	0.155
Tap Maximum Insulation Outer Diameter (Metric)	3.9
Recommended Crimping Tool	E-9BM and/or Mechanics (slip joint) Pliers
Product Color	Blue
Voltage Application	Low Voltage
Run Maximum Insulation Outer Diameter (Metric)	3.9
Conductor Sizes (Imperial)	14 AWG
Maximum Operating Temperature (Celsius)	105.0
Minimum Operating Temperature (Celsius)	0.0
Maximum Operating Temperature (Fahrenheit)	221.0
Maximum Operating Temperature (Fahrenheit) UOM	Degree
RoHS EU Comments	RoHS 2011/65/EU compliant without exemption
Tap Maximum Insulation Outer Diameter (Imperial)	0.155
Packaging	Box
Material	Flame Retardant Nylon
Connection Type	Pigtail
Max. Number of Cores	3.0
