3M Products & Supplies

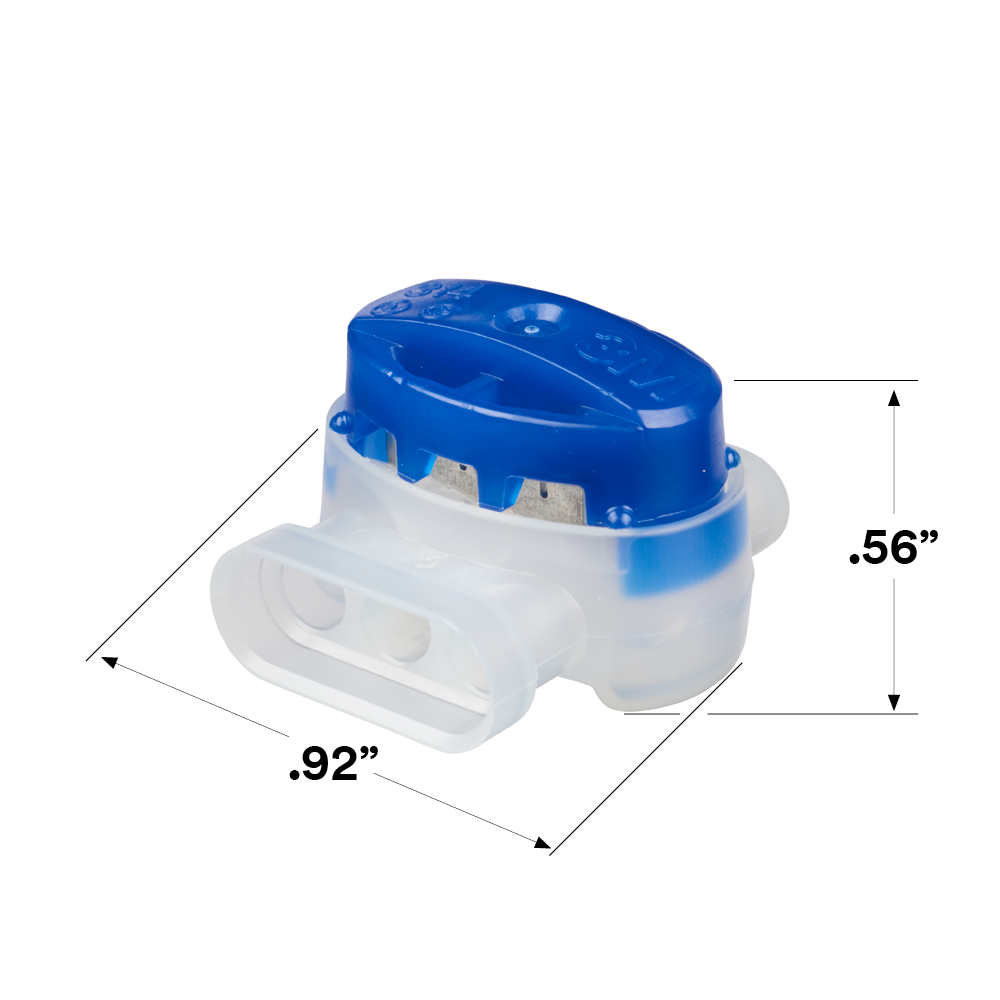

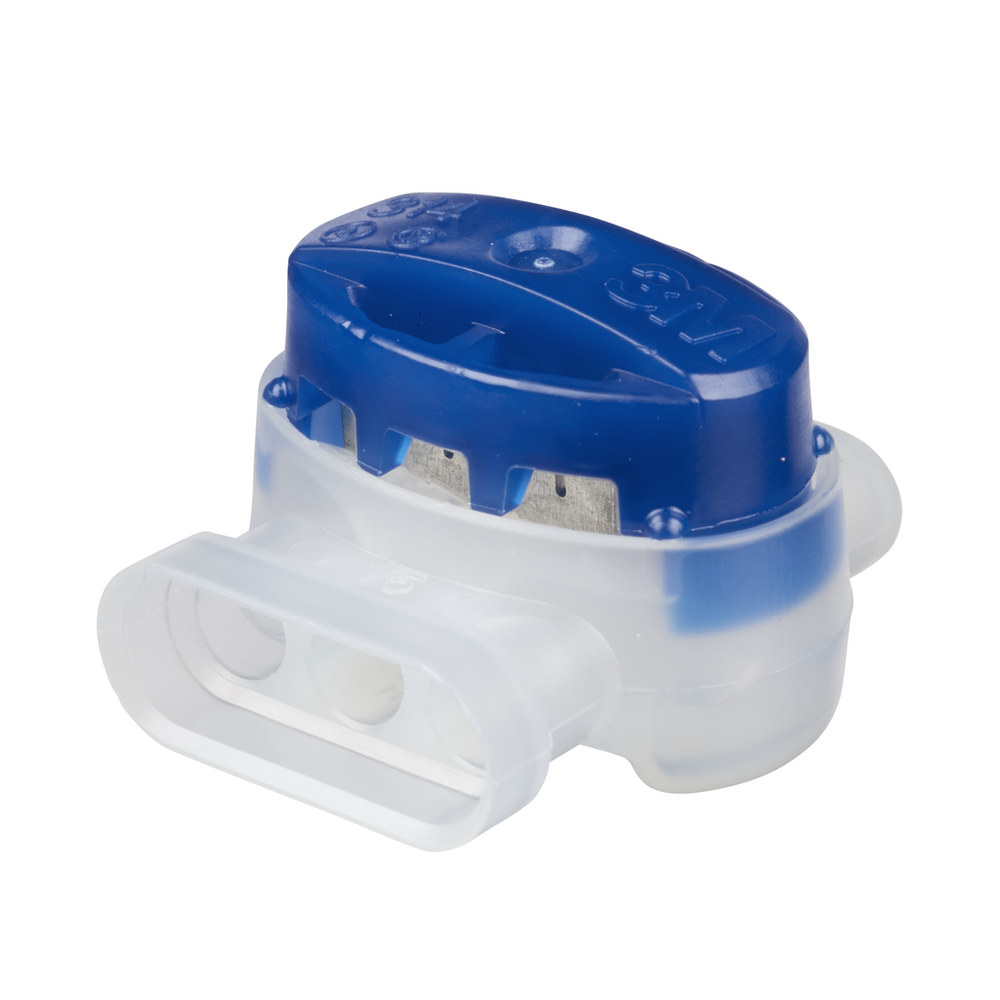

3M™ Scotchlok™ Electrical IDC 314-BIN, Pigtail, Self-Stripping, Blue, 22-14 AWG, 1000 /Case - 7000031482

Sold As: 1000-Pack
SKU: 7000031482
MPN: 7000031482
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007092315
3M ID: 80610253678
5 Digit UPC: 9231
$981.48 ($0.98 / Count)
Hurry up! Current stock:

Product Description

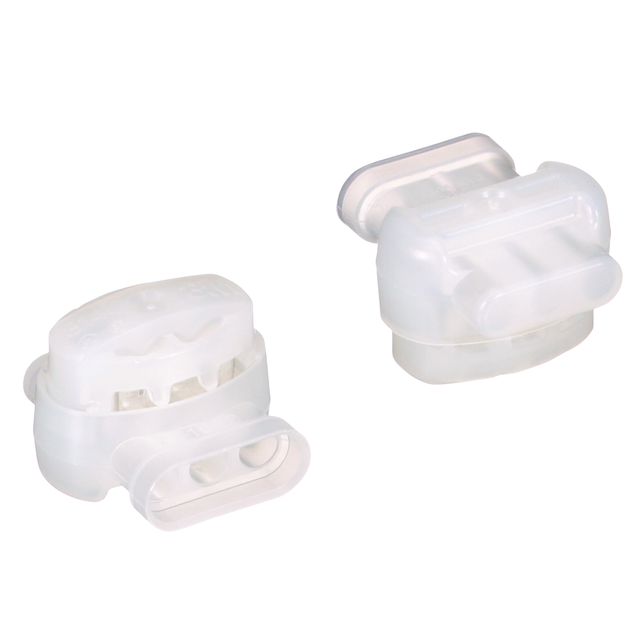

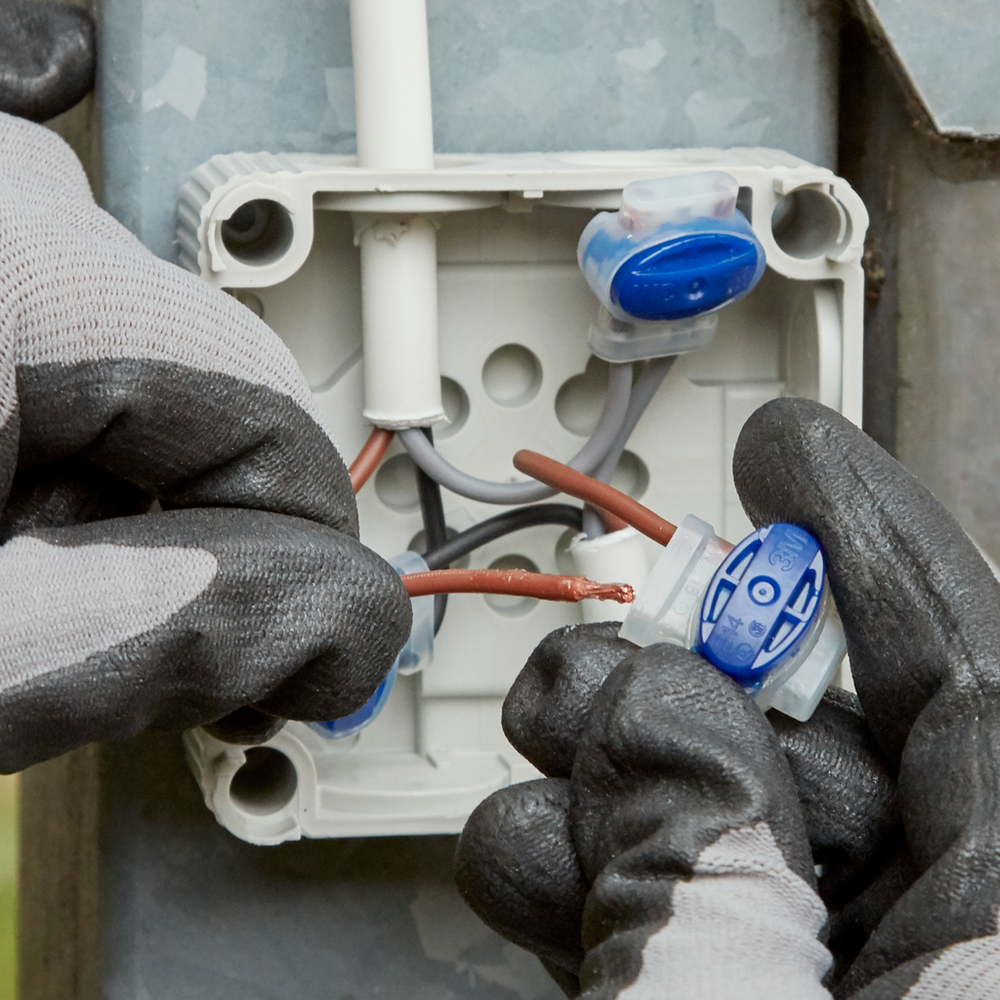

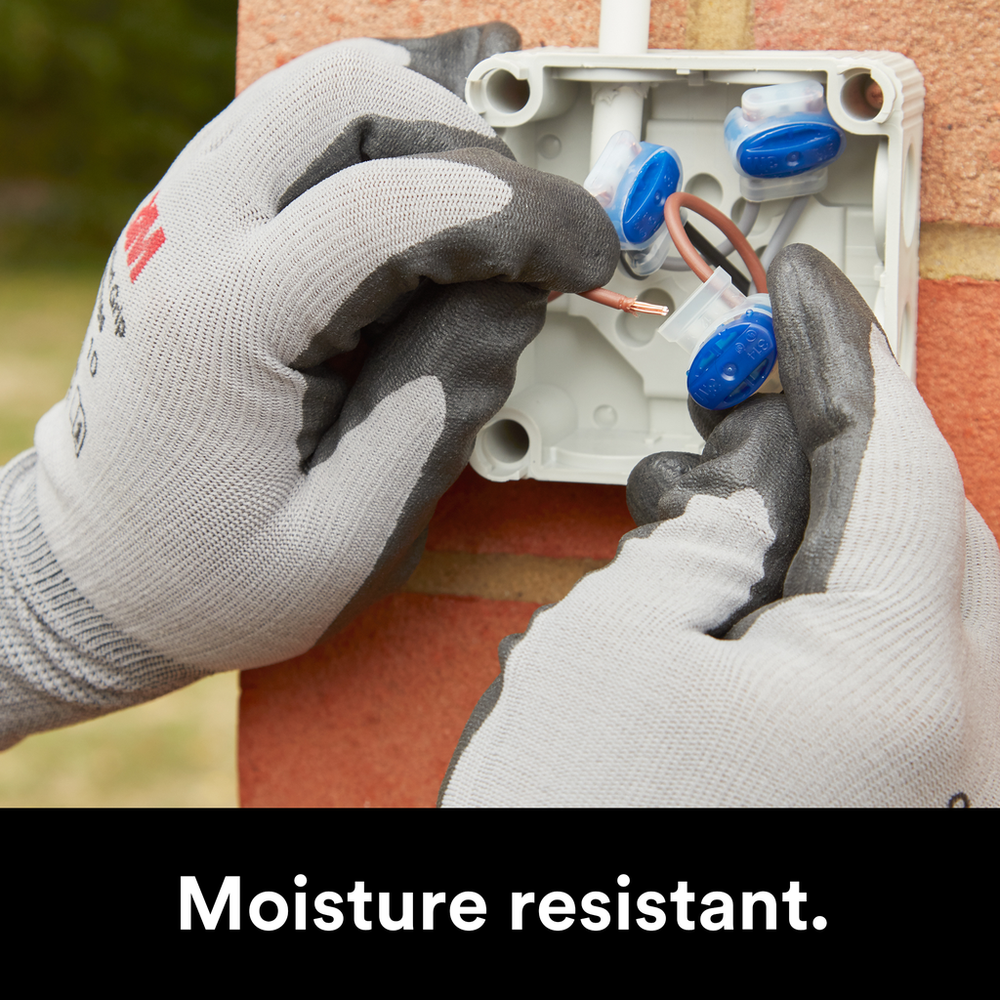

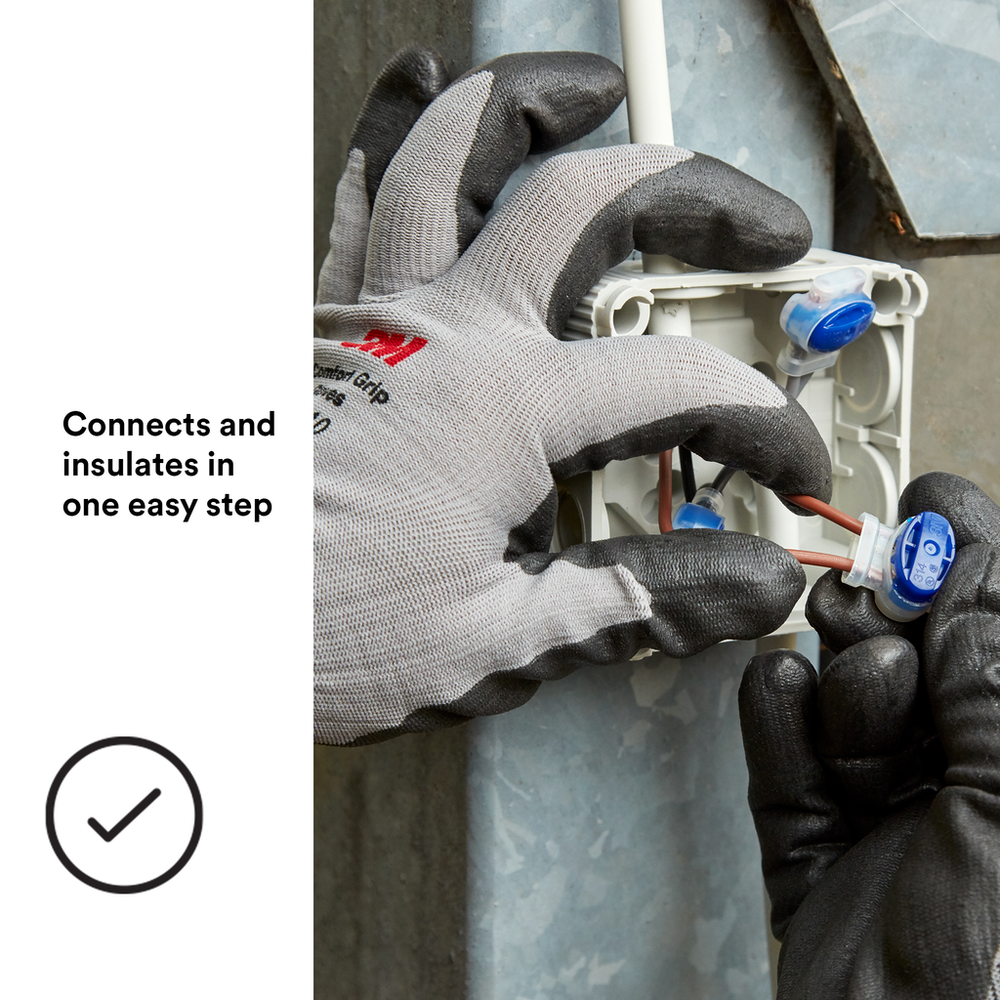

3M™ Scotchlok™ Insulation Displacement Connector 314 provides a dual element connection and moisture resistant seal with a mineral oil based grease. The connector is nylon insulated and used to connect 2 or 3 wires. It is self stripping, flame retardant and moisture resistant.

Features

  • Accommodates 22 to 14 AWG solid/stranded

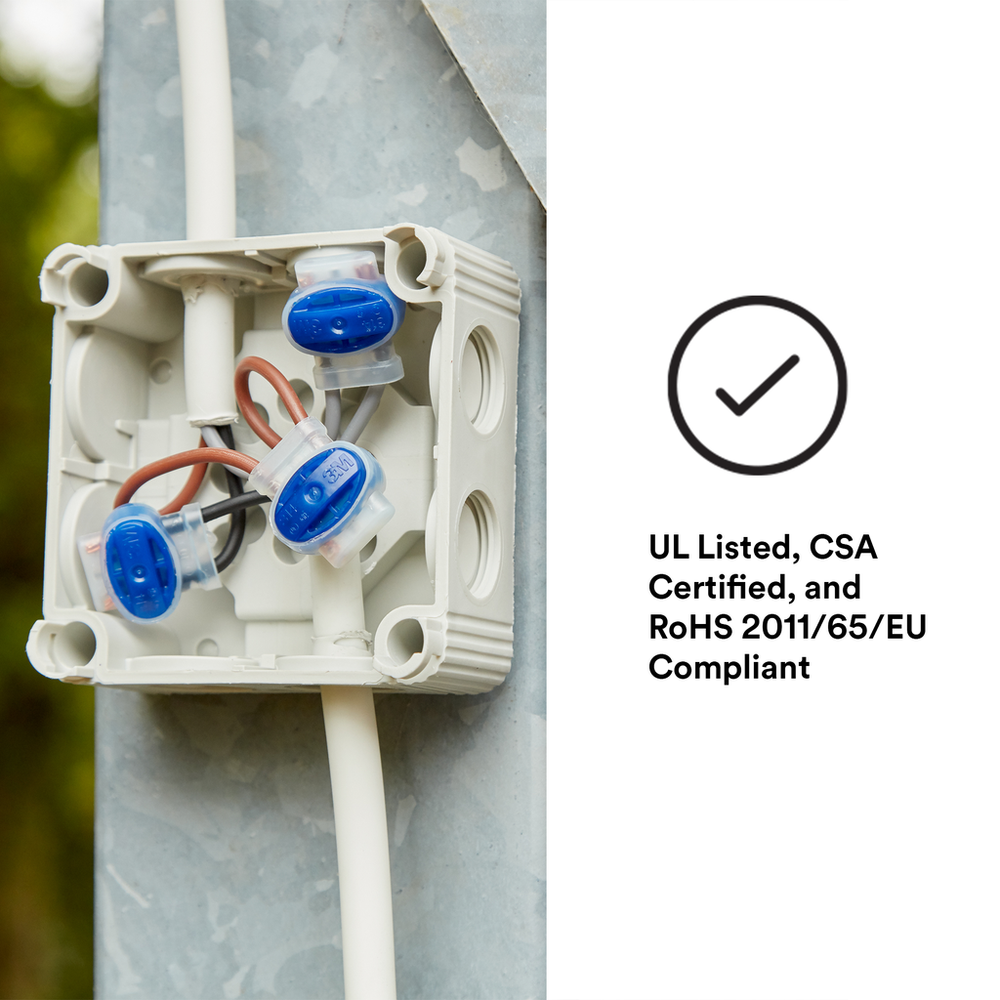

  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

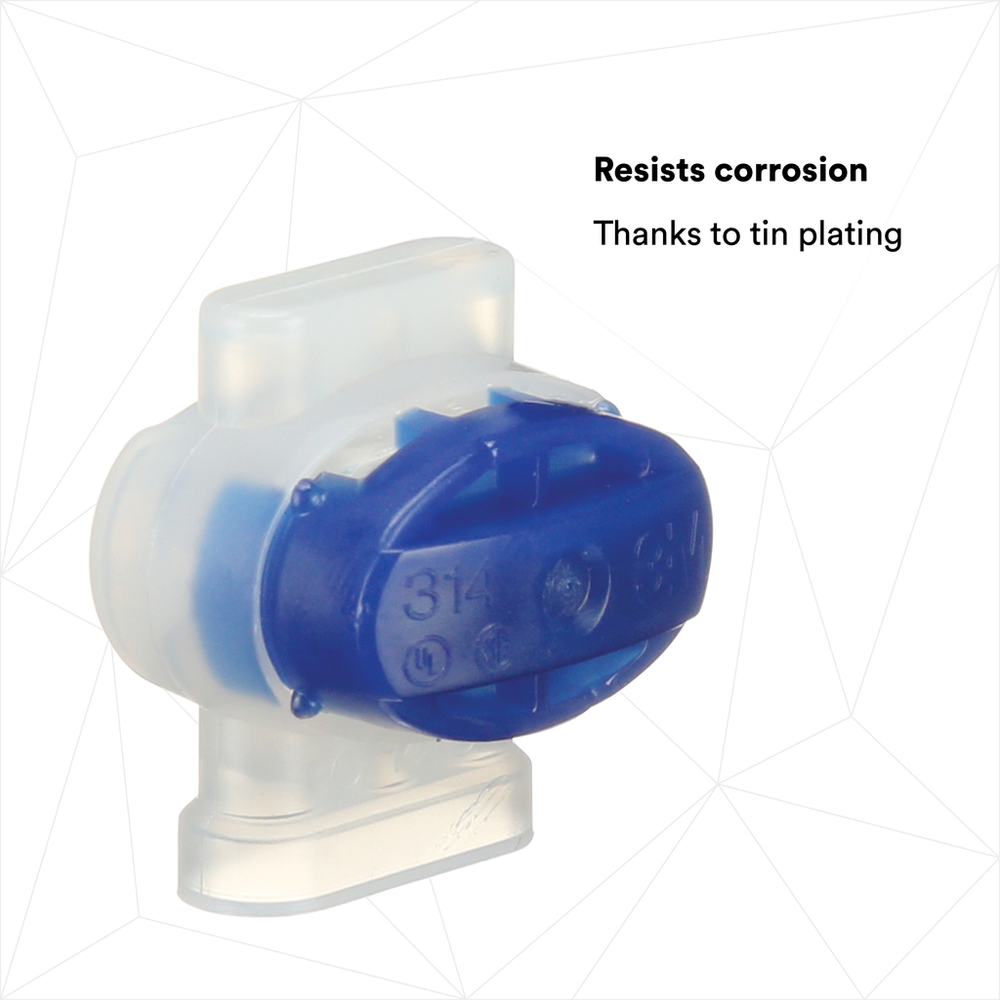

  • Brass element construction for good conductivity and tin plating for corrosion resistance
  • Blue cap and white body nylon-insulated connector is suitable to connect 2 or 3 wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Run Maximum Insulation Outer Diameter (Metric)3.9
Tap Maximum Insulation Outer Diameter (Metric)3.9
Voltage ApplicationLow Voltage
MaterialFlame Retardant Nylon
Wire Connector TypeIDC Connectors
Maximum Operating Temperature (Fahrenheit)221.0
UL File NumberE23438
Conductor Sizes (Imperial)14 AWG
Recommended Crimping ToolE-9BM and/or Mechanics (slip joint) Pliers
Insulation Colorcap blue, body white
Maximum Operating Temperature (Celsius)105.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Operating Temperature (Celsius)0.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Flame RetardantYes
Interrupt Free ShiftingNo
PackagingBulk
Run Maximum Insulation Outer Diameter (Imperial)0.155
Minimum Operating Temperature (Fahrenheit)0.0
Connection TypePigtail
Tap Maximum Insulation Outer Diameter (Imperial)0.155
Maximum Operating Temperature (Celsius) UOMDegree
Product ColorBlue
