3M Products & Supplies

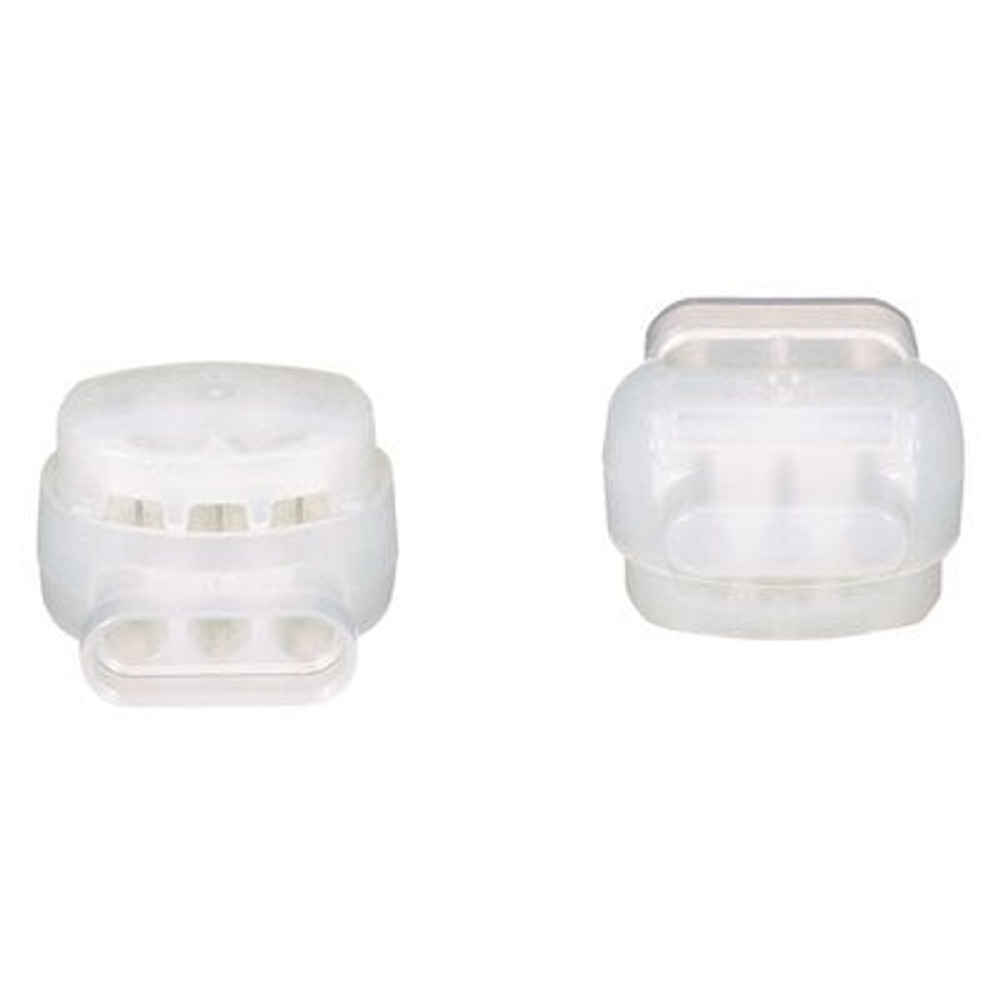

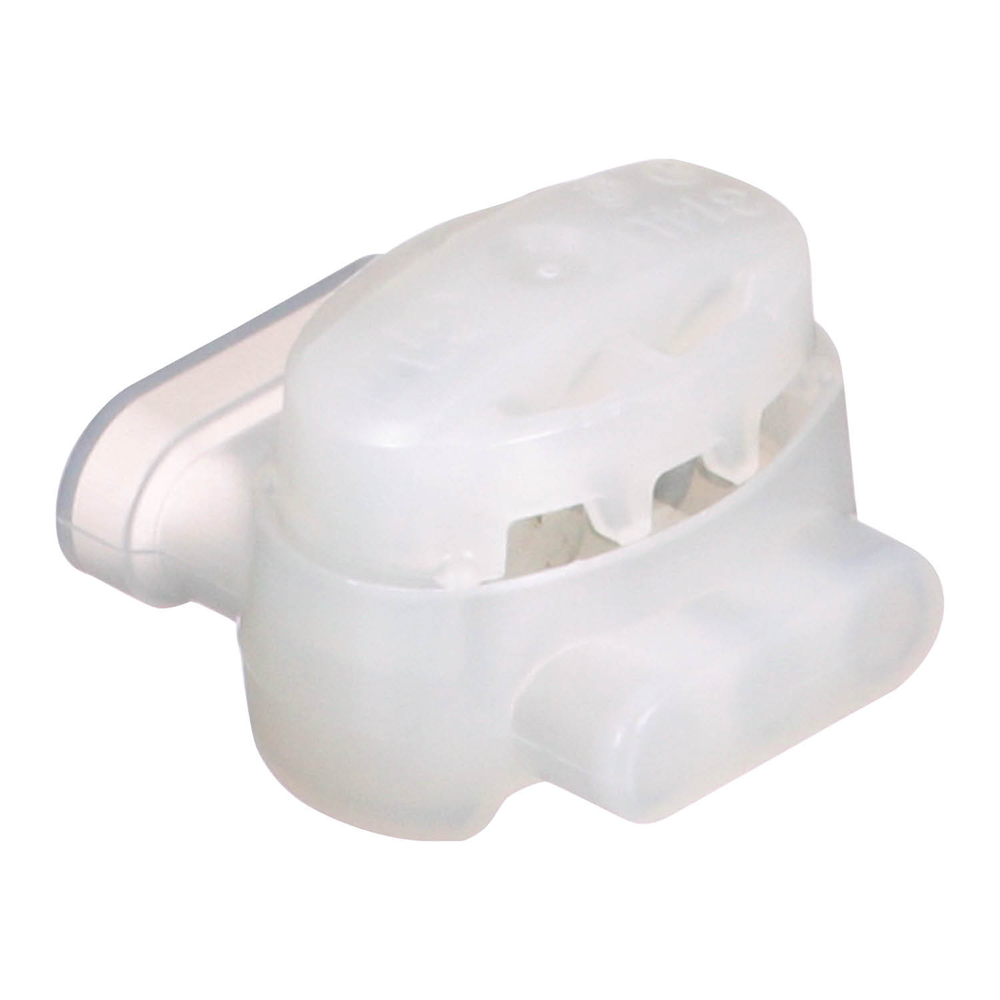

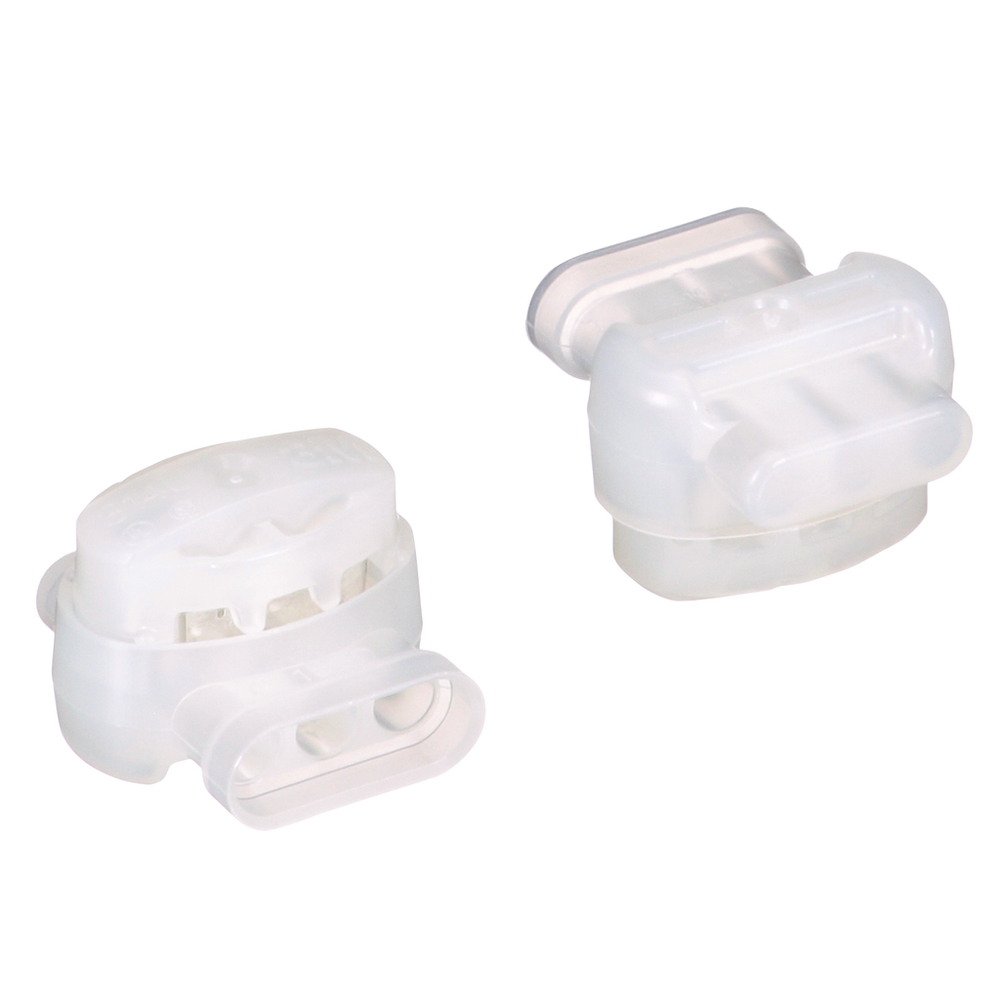

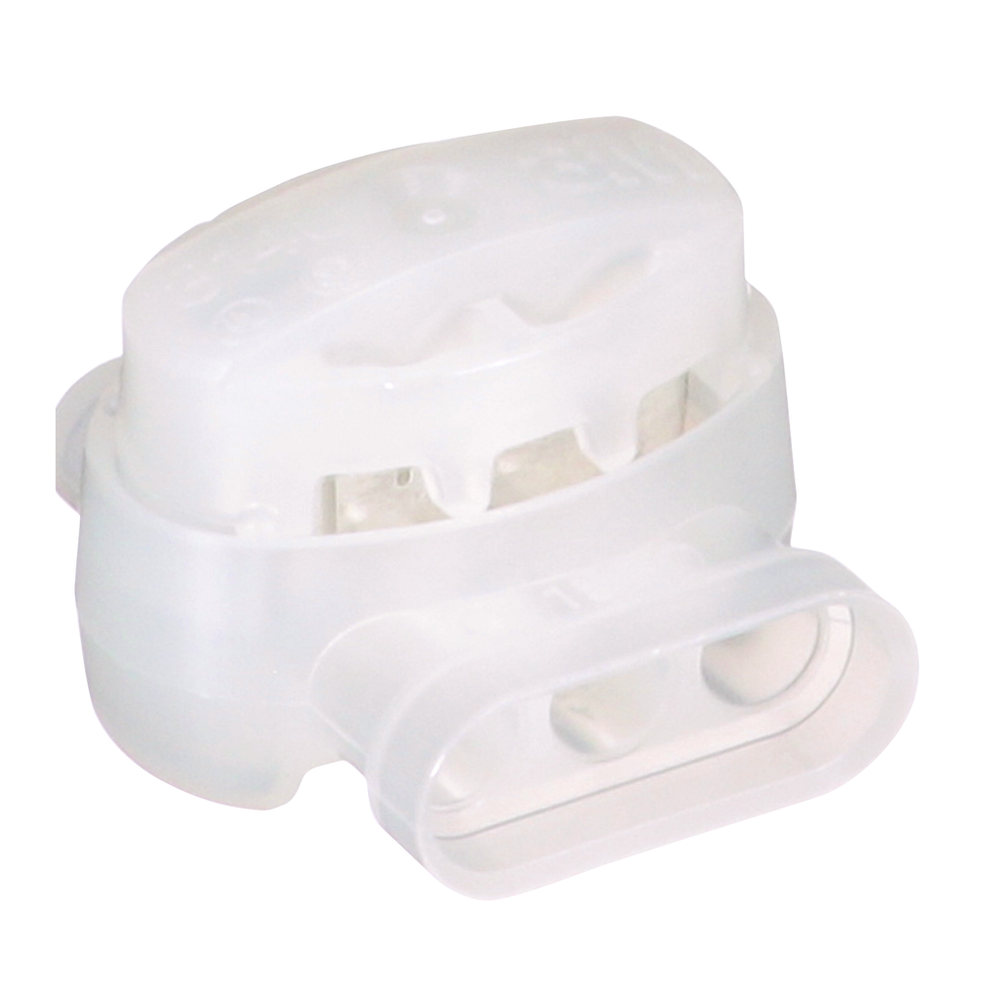

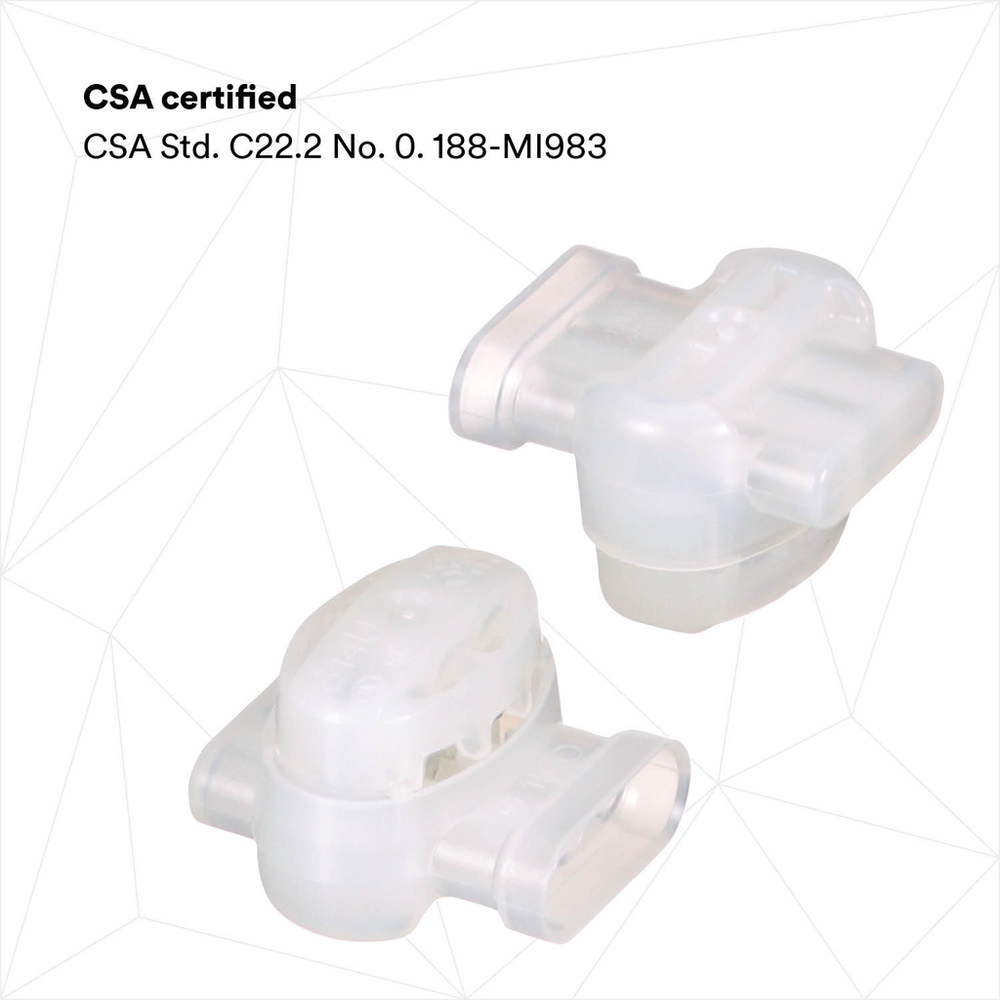

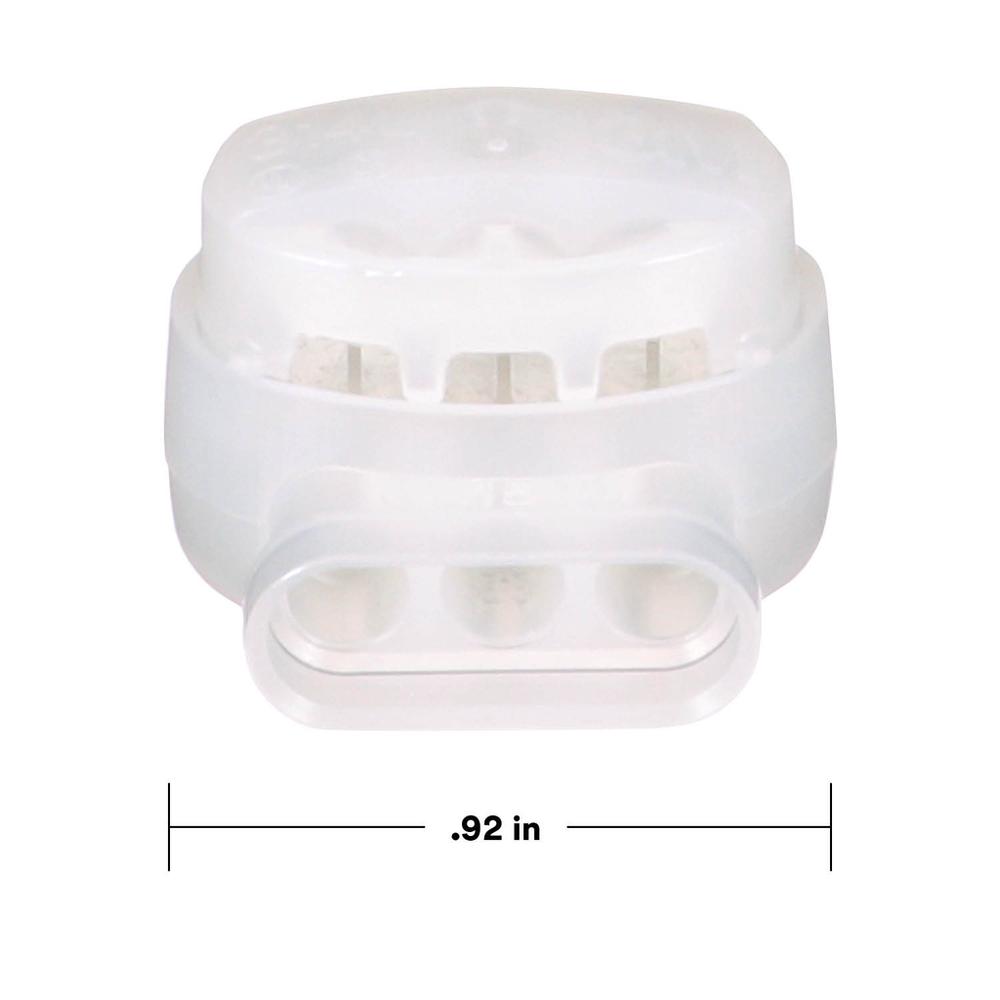

3M™ Scotchlok™ Electrical IDC 314U-BIN, Pigtail, Self-Stripping, Flame Retardant, White, 22-14 AWG, 1000 /Case - 7000058006

Sold As: 1000-Pack
SKU: 7000058006
MPN: 7000058006
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007092339
3M ID: 80610253694
5 Digit UPC: 9233
$418.78 ($0.42 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Insulation Displacement Connector 314U provides a dual element connection for dry environment applications. The connector is nylon insulated and used to connect 2 or 3 wires. It is self stripping and flame retardant.

Features

  • Accommodates a wire range of 1,5 - 2,5 mm2 solid or stranded
  • White cap and white body nylon-insulated connector is suitable to connect 2 or 3 wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
PackagingBulk
Run Maximum Insulation Outer Diameter (Metric)3.9
Maximum Conductor Size (Metric)1.5
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Voltage ApplicationLow Voltage
Tap Maximum Insulation Outer Diameter (Metric)3.9
Insulation MaterialNylon
Insulation Outer Diameter (Imperial)0.155
Minimum Conductor Size (Metric)0.5 mm²
Wire Connector TypeIDC Connectors
Tap Maximum Insulation Outer Diameter (Imperial)0.155
Connection TypePigtail
Run Maximum Insulation Outer Diameter (Imperial)0.155
Insulation ColorWhite
Conductor Sizes (Imperial)14 AWG
Insulation Outer Diameter (Imperial) UOMin
UL File NumberE23438
MaterialFlame Retardant Nylon
