3M Products & Supplies

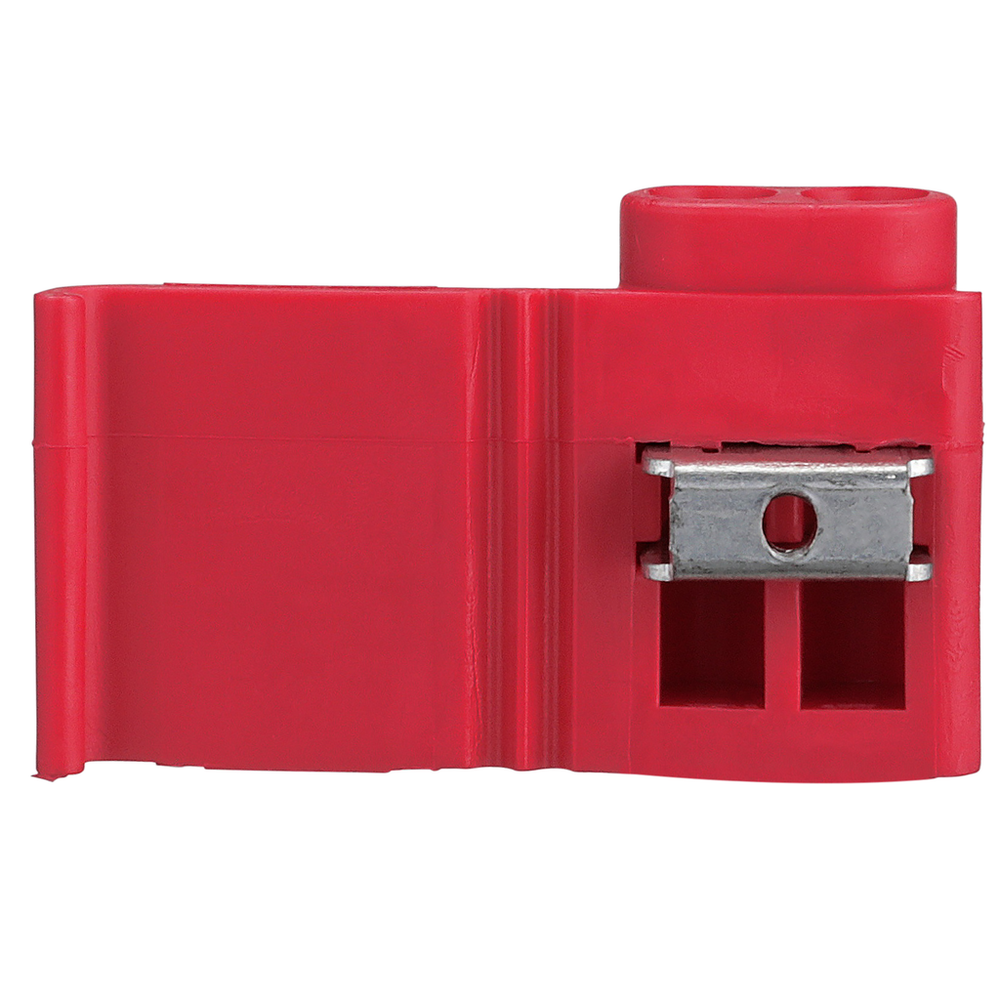

3M™ Scotchlok™ Electrical Idc 557-Pouch, Pigtail, Self-Stripping, Red, 22-16 Awg, 100/Pouch, 1000/Case - 7100166937

Sold As: 1000-Pack
SKU: 7100166937
MPN: 7100166937
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10054007214943
3M ID: 80000209587
5 Digit UPC: 21494
$435.36 ($0.44 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Insulation Displacement Connector 557 provides a dual element connection. The connector is polypropylene insulated and used to connect 2 wires while insulating the connection. It is self stripping and flame retardant.

Features

  • UL Listed and RoHS 2011/65/EU Compliant
  • Accommodates 22 to 16 AWG solid/stranded
  • intended for use with common thermoplastic insulated wire such as: T, TF, TFF, TFN, TFFN, AWM, TEW, SAE GPT with a maximum insulation diameter of 3,5 mm
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Tap Maximum Insulation Outer Diameter (Imperial)0.12
PackagingBox
Run Maximum Insulation Outer Diameter (Metric)3.05
Insulation Outer Diameter (Imperial) UOMin
Recommended Crimping ToolE-9BM
Run Maximum Insulation Outer Diameter (Imperial)0.12
Minimum Conductor Size (Imperial)22 AWG
Flame RetardantYes
Insulation Outer Diameter (Imperial)0.12
Connection TypePigtail
Connector / Connector Tool3M Crimping Tool E-9BM and/or 9" Lineman's Pliers
Tap Maximum Insulation Outer Diameter (Metric)3.05
UL File NumberE23438
Wire Connector TypeIDC Connectors
Units per Case1000.0
Voltage ApplicationLow Voltage
Conductor Sizes (Imperial)16 AWG
MaterialInsulator: FR Polypropylene, U-contact: Tin-plated Brass
Moisture ResistantNo
