3M Products & Supplies

3M™ Scotchlok™ Electrical Idc 558-Pouch, Run and Tap, Flame Retardant, Red, 22-16 Awg, 100/Pouch, 1000/Case - 7100166926

Sold As: 1000-Pack
SKU: 7100166926
MPN: 7100166926
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10054007148613
3M ID: 80000209595
5 Digit UPC: 14861
$499.74 ($0.50 / Count)
Hurry up! Current stock:

Product Description

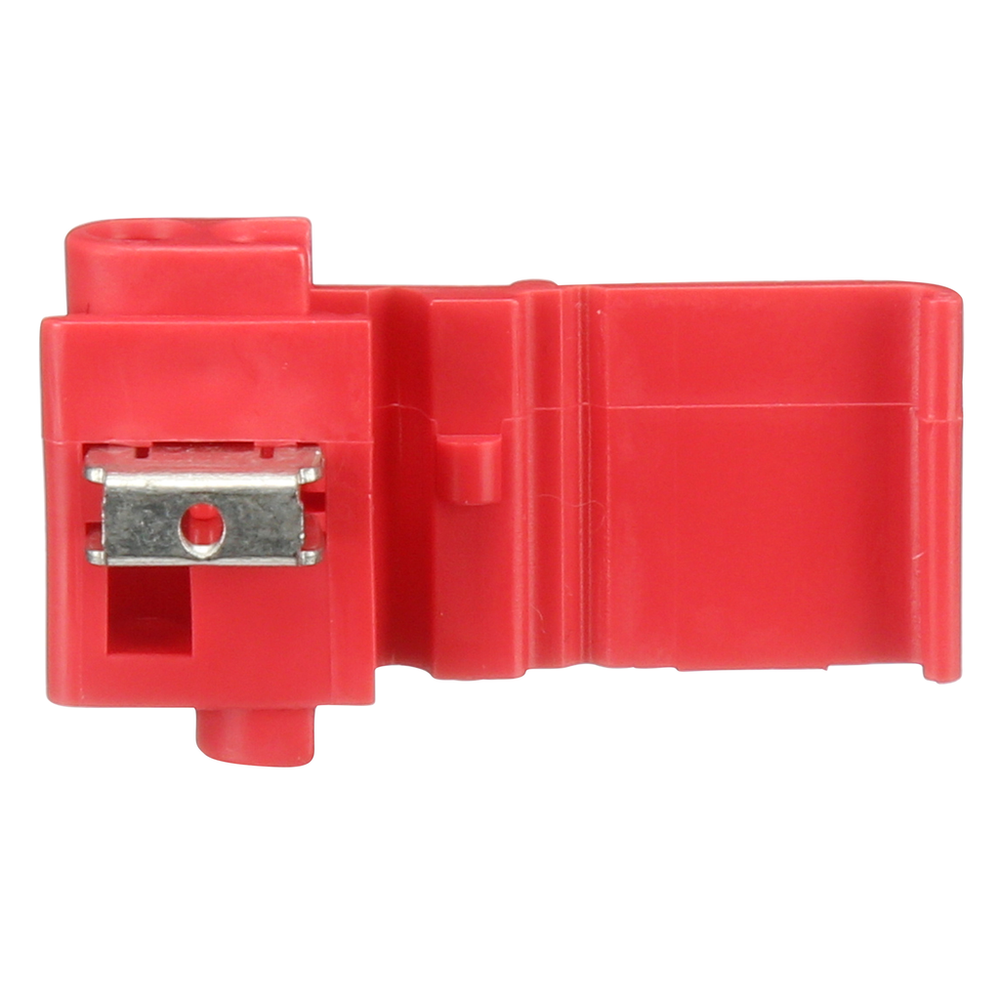

3M™ Scotchlok™ Insulation Displacement Connector 558 electrically connects a tap wire to a run (through) wire while insulating the connection. The connector is polypropylene insulated and self stripping.

Features

  • Accommodates 18 to 16 AWG solid/stranded or 14 AWG stranded
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Suitable for general purpose electrical connections on an auto, boat, van or trailer
  • Red, polypropylene-insulated connector
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
UL File NumberE23438
Run Maximum Insulation Outer Diameter (Imperial)0.12
Voltage ApplicationLow Voltage
Maximum Conductor Size (Metric)1.5
Wire Connector TypeIDC Connectors
Recommended Crimping ToolE-9BM or 9 in. Linemans Pliers
Connector / Connector Tool3M Crimping Tool E-9BM and/or 9" Lineman's Pliers
Max. Number of Cores2.0
Tap Maximum Insulation Outer Diameter (Metric)3.1
Tap Maximum Insulation Outer Diameter (Imperial)0.12
Conductor Sizes (Imperial)16 AWG
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation ColorRed
Maximum Conductor Size (Imperial)16 AWG
PackagingBox
Run Maximum Insulation Outer Diameter (Metric)3.1
Units per Case1000.0
