3M Products & Supplies

3M™ Scotchlok™ Electrical IDC 558-BULK, Run and Tap, Flame Retardant, Red, 22-16 AWG, 5000/case - 7000005800

Sold As: 5000-Pack
SKU: 7000005800
MPN: 7000005800
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10054007148798
3M ID: 80004000487
5 Digit UPC: 14879
$2,127.96 ($0.43 / Count)
Hurry up! Current stock:

Product Description

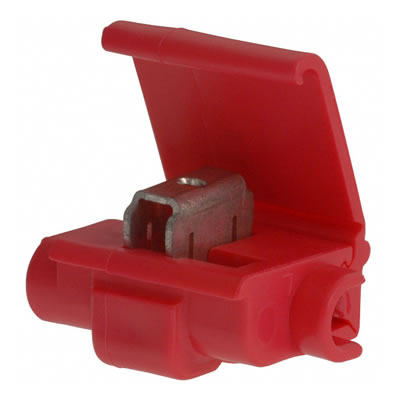

3M™ Scotchlok™ Insulation Displacement Connector 558 electrically connects a tap wire to a run (through) wire while insulating the connection. The connector is polypropylene insulated and self stripping.

Features

  • Red, polypropylene-insulated connector
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Accommodates 18 to 16 AWG solid/stranded or 14 AWG stranded

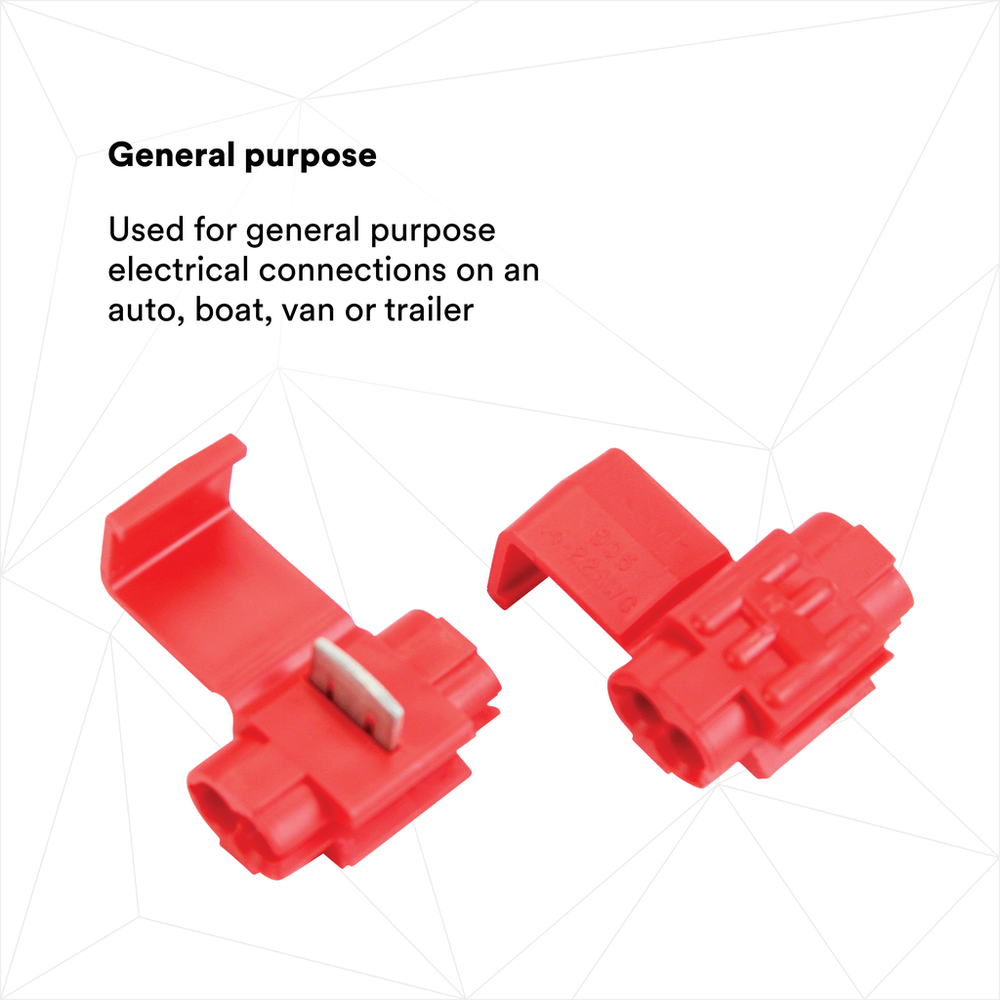

  • Suitable for general purpose electrical connections on an auto, boat, van or trailer

Downloads

Specifications

Country of OriginUnited States
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Units per Case5000.0
Recommended Crimping ToolE-9BM or 9 in. Linemans Pliers
Connector / Connector Tool3M Crimping Tool E-9BM and/or 9" Lineman's Pliers
UL File NumberE23438
Max. Number of Cores2.0
Run Maximum Insulation Outer Diameter (Metric)3.1
Tap Maximum Insulation Outer Diameter (Imperial)0.12
Run Maximum Insulation Outer Diameter (Imperial)0.12
Insulation ColorRed
Wire Connector TypeIDC Connectors
PackagingBulk
Voltage ApplicationLow Voltage
Maximum Conductor Size (Metric)1.5
Conductor Sizes (Imperial)14 AWG (Stranded)
Tap Maximum Insulation Outer Diameter (Metric)3.1
