3M Products & Supplies

3M™ Scotchlok™ Electrical IDC 905-BULK, Double Run or Tap, Red, 22-18 AWG (Tap), 18-14 AWG (Run), 500 per bag, 5000 /Case - 7000021415

SKU: 7000021415
MPN: 7000021415
Stock Item: Stock items typically ship within 2-3 business days
UPC: 50054007061293
3M ID: 80601119706
5 Digit UPC: 6129
$1,052.30 each
Hurry up! Current stock:

Product Description

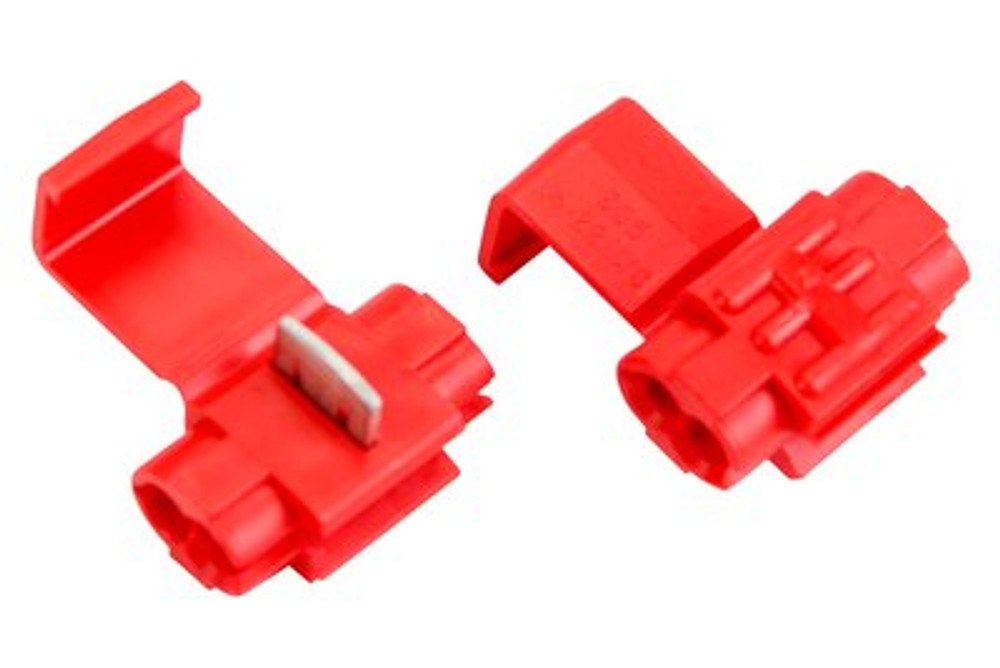

3M™ Scotchlok™ Insulation Displacement Connector 905 is a double run or tap connector that can connect two wires in a tap, inline, pigtail or double run installation while insulating the connection. This connector is ideal for low voltage accessories and electronics.

Features

  • Red, polypropylene-insulated connector is suitable for tap or parallel splicing
  • Temperature rated 90˚C maximum
  • Use Part No. 905 to electrically connect two wires in a tap, inline, pigtail, or double run installation and insulate the connection.
  • Suitable for use in light fixtures, appliances and other electrical OEM applications
  • Connector rated 32 volts maximum
  • 951 accommodates 22 to 18 AWG solid/stranded, 952 accommodates 18 to 14 AWG solid/stranded and 953 accommodates 12 AWG solid/stranded
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Insulation MaterialPolypropylene
Connector / Connector Tool3M Crimping Tool E-9BM and/or 9" Lineman's Pliers and/or Mechanics (slip joint) Pliers
Units per Case5000.0
Connection TypeDouble Run or Tap
Conductor Sizes (Imperial)14 AWG (Run)
Grease Filling Against CorrosionNo
Recommended Crimping ToolE-9BM or 9 in. Linemans Pliers and/or Mechanics (slip joint) Pliers
MaterialInsulator: Polypropylene, U-contact: Tin-plated Copper Alloy
Tap Maximum Insulation Outer Diameter (Metric)3.7
PackagingBulk
Run Maximum Insulation Outer Diameter (Metric)3.7
Voltage ApplicationLow Voltage
Wire Connector TypeIDC Connectors
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Run Maximum Insulation Outer Diameter (Imperial)0.145
Tap Maximum Insulation Outer Diameter (Imperial)0.145
