3M Products & Supplies

3M™ Scotchlok™ Electrical IDC 564-BULK, Double Run, White, 18-14 AWG, 500 per carton, 5000/case - 7000005870

Sold As: 5000-Pack
SKU: 7000005870
MPN: 7000005870
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007061182
3M ID: 80601103031
5 Digit UPC: 6118
$618.09 ($0.12 / Count)
Hurry up! Current stock:

Product Description

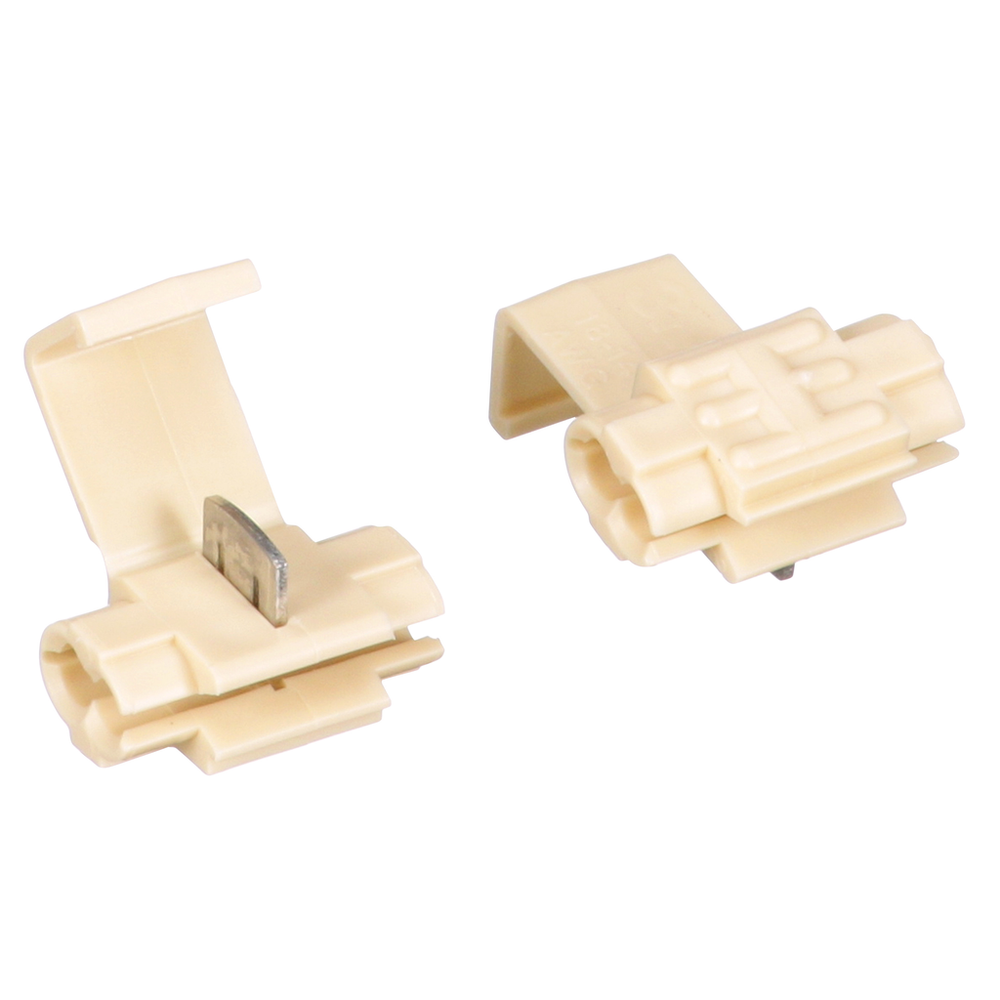

3M™ Scotchlok™ Insulation Displacement Connector 564 is a double run connector for parallel splicing. It electrically connects two run (through) wires while insulating the connection. Polypropylene insulated and self stripping.

Features

  • Accommodates 18 to 14 AWG solid/stranded (tap) and 12 to 10 AWG solid/stranded (run)
  • Beige polypropylene-insulated connector for parallel splicing
  • Connector rated 32 volts maximum
  • Temperature rated 90˚C maximum
  • Use Part No. 564 to electrically connect two wires in a tap, inline, pigtail, or double run installation and insulate the connection
  • Suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Celsius)90.0
Recommended Crimping ToolE-9BM or 9 in. Linemans Pliers
Tap Maximum Insulation Outer Diameter (Imperial)0.145
Units per Case500.0
Moisture ResistantNo
Conductor Sizes (Imperial)14 AWG
Maximum Operating Temperature (Fahrenheit)194.0
Run Maximum Insulation Outer Diameter (Metric)3.7
Maximum Operating Temperature (Fahrenheit) UOMDegree
Product TypeDouble Run
Run Maximum Insulation Outer Diameter (Imperial)0.145
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
PackagingBulk
Voltage ApplicationLow Voltage
Maximum Operating Temperature (Celsius) UOMDegree
Wire Connector TypeIDC Connectors
Connection TypeDouble Run or Tap
Tap Maximum Insulation Outer Diameter (Metric)3.7
