3M Products & Supplies

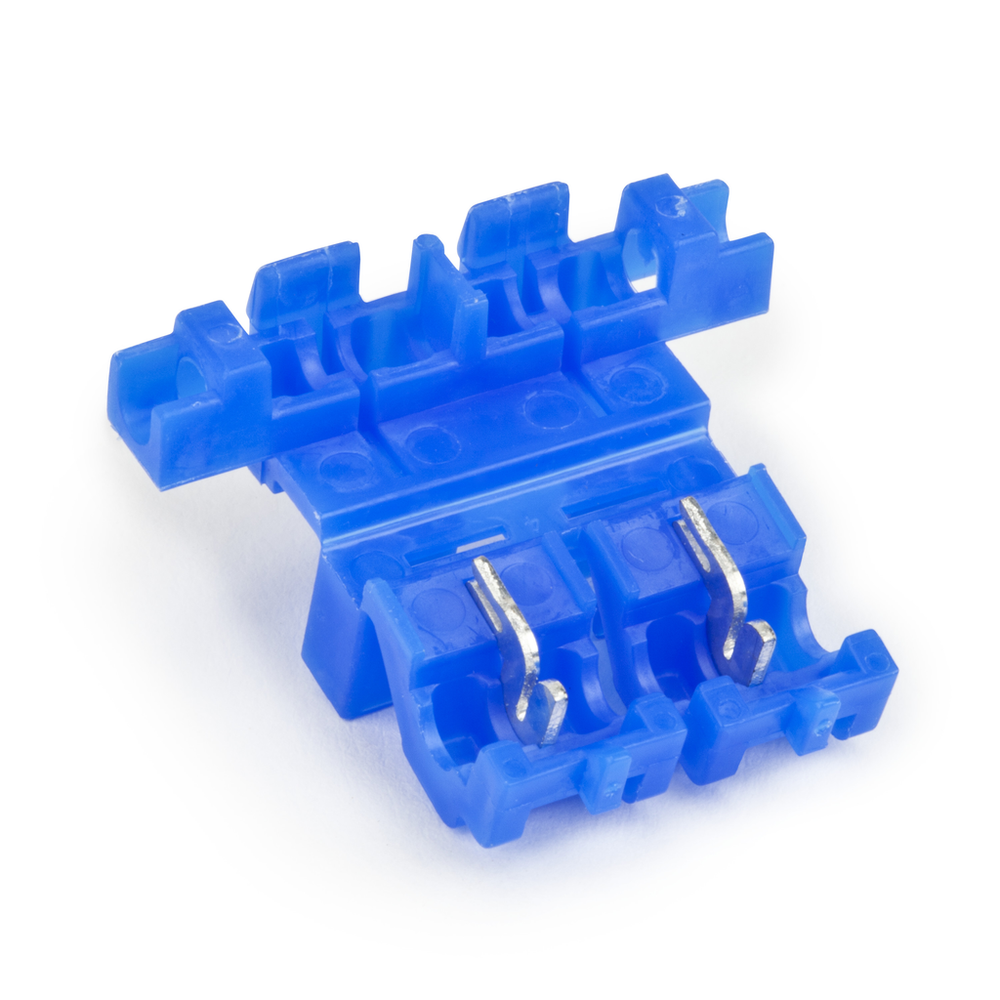

3M™ Scotchlok™ Female Disconnect 972-A, Fuse Holder Polypropylene Insulated Self-Stripping 972-A(BULK), 18-14 AWG, 1000 /Case - 7000006228

Sold As: 1000-Pack
SKU: 7000006228
MPN: 7000006228
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128575574
3M ID: 80611441579
5 Digit UPC: 57557
$728.98 ($0.73 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Fuse Holder Female Disconnect 972-A is specifically designed to install a blade type automotive fuse between the power source and device. It has insulation that is manufactured from blue polypropylene, and operates efficiently up to 221 degrees F (105 degrees C).

Features

  • Withstands temperatures of 221 °F (105 °C)
  • Color-coded for quick and easy identification of the wire size
  • Brass element construction for good conductivity and tin plating for corrosion resistance
  • Made of insulated and self-stripping polypropylene
Spec Sheet



Downloads

Specifications

Country of OriginTaiwan
Overall Width (Imperial)0.37
Connection TypeWire
Overall Width (Imperial) UOMin
Moisture ResistantNo
Terminal TypeFuse
Pad Width0.25
Conductor Sizes (Imperial)14 AWG
Maximum Recommended Voltage Rating UOMV
PackagingBulk
Maximum Recommended Voltage Rating600.0
Maximum Conductor Size (Imperial)14 AWG
Maximum Conductor Size (Metric)2.5
Overall Diameter (Imperial) UOMin
Minimum Conductor Size (Imperial)18 AWG
Tap Maximum Insulation Outer Diameter (Imperial)0.145
Interrupt Free ShiftingNo
Max. Number of Cores1.0
Run Maximum Insulation Outer Diameter (Metric)3.7
Wire Connector TypeIDC Connectors
Diameter (D)0.23 Inch
MaterialPlastic
Run Maximum Insulation Outer Diameter (Imperial)0.145
Flame RetardantNo
Tap Maximum Insulation Outer Diameter (Metric)3.7
Overall Diameter (Imperial)0.23
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Fastener OrientationFemale
