3M Products & Supplies

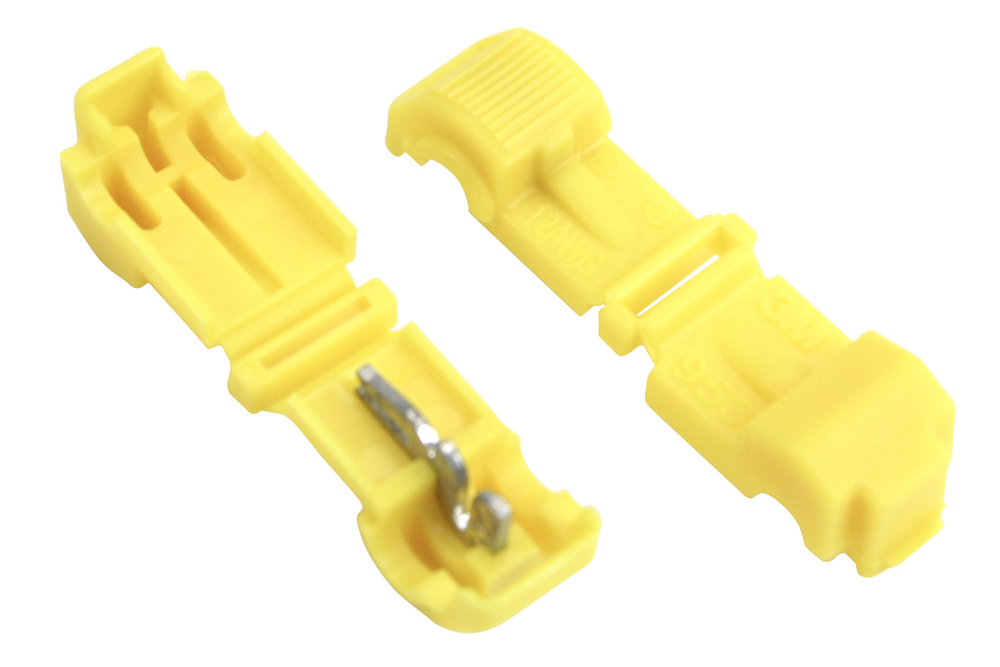

3M™ Scotchlok™ Female QuickSlide Disconnect, T-Tap Nylon Insulated Self-Stripping 953K, 12 AWG, 1000/case - 7000005802

Sold As: 1000-Pack
SKU: 7000005802
MPN: 7000005802
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007123156
3M ID: 80004000537
5 Digit UPC: 12315
$152.14 ($0.15 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Insulation Displacement Connectors 951, 952 and 953 are quick slide t-tap disconnects used to electrically tap into a wire in mid span without cutting or stripping the wire. They feature nylon insulation, making them ideal for use in light fixtures, appliances and other electrical OEM applications.

Features

  • Nylon-insulated connector electrically taps into a wire in mid-span without cutting
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Imperial)12 AWG
Insulation Outer Diameter (Imperial) UOMin
Wire Connector TypeIDC Connectors
Recommended Crimping ToolE-9BM Mechanics (slip joint) Pliers
Maximum Operating Temperature (Fahrenheit) UOMDegree
Grease Filling Against CorrosionNo
Minimum Conductor Size (Metric)4 mm²
PackagingBulk
Maximum Insulation Outer Diameter (Metric)3.8
Insulation ColorYellow
Maximum Recommended Voltage Rating600.0
Pad Width0.25
Maximum Recommended Voltage Rating UOMV
Flame RetardantYes
Maximum Conductor Size (Metric)4 mm²
Terminal TypeT-tap
Interrupt Free ShiftingNo
Connector StyleInsulation Displacement
Disconnect TypeFemale
Maximum Conductor Size (Imperial)12 AWG
Maximum Operating Temperature (Celsius)105.0
Product TypeConnector
MaterialInsulator: FR Nylon, Element: Tin-plated Brass
Connection Width (Imperial) UOMin
Insulation MaterialNylon
Connection Width (Imperial)0.25
Maximum Insulation Outer Diameter (Metric) UOMmm
Connection Width (Metric)6.35
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Product ColorYellow
Barrel StyleInsulated Self-Stripping
Maximum Operating Temperature (Fahrenheit)221.0
Connector / Connector Tool3M Crimping Tool E-9BM Mechanics (slip joint) Pliers
Maximum Operating Temperature (Celsius) UOMDegree
Max. Number of Cores2.0
Maximum Insulation Outside Diameter0.150 in
Fastener OrientationFemale
UL File NumberE70512, UL Listed for AWG Only
Connection Width (Metric) UOMmm
Conductor Sizes (Imperial)12 AWG
Insulation Outer Diameter (Imperial)0.15
Connection TypeT-tap
