3M Products & Supplies

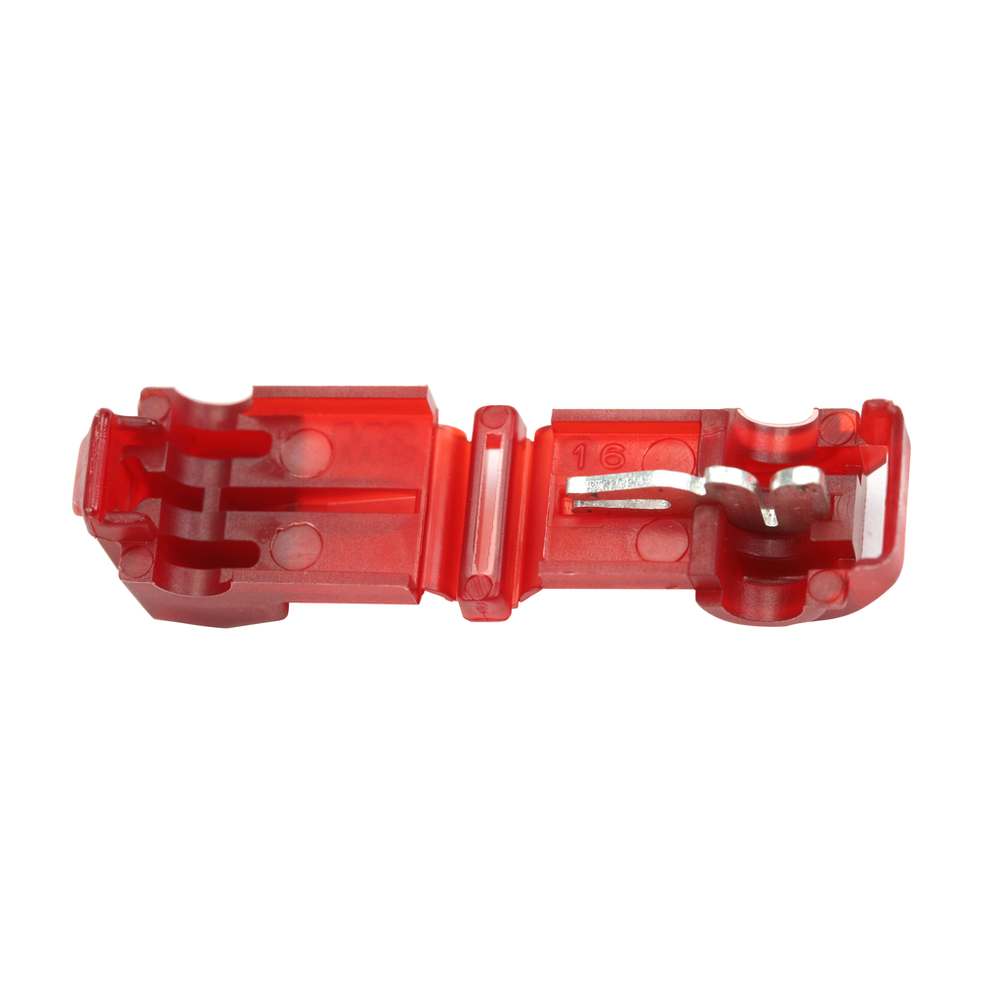

3M™ Scotchlok™Female QuickSlide Disconnect, T-Tap Nylon Insulated Self-Stripping 951X-Bottle, 22-18 AWG, 10 Packs/Case - 7000058872

Sold As: 50-Pack
SKU: 7000058872
MPN: 7000058872
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007123125
3M ID: 80611605777
5 Digit UPC: 12312
$21.28 ($0.43 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Insulation Displacement Connectors 951, 952 and 953 are quick slide t-tap disconnects used to electrically tap into a wire in mid span without cutting or stripping the wire. They feature nylon insulation, making them ideal for use in light fixtures, appliances and other electrical OEM applications.

Features

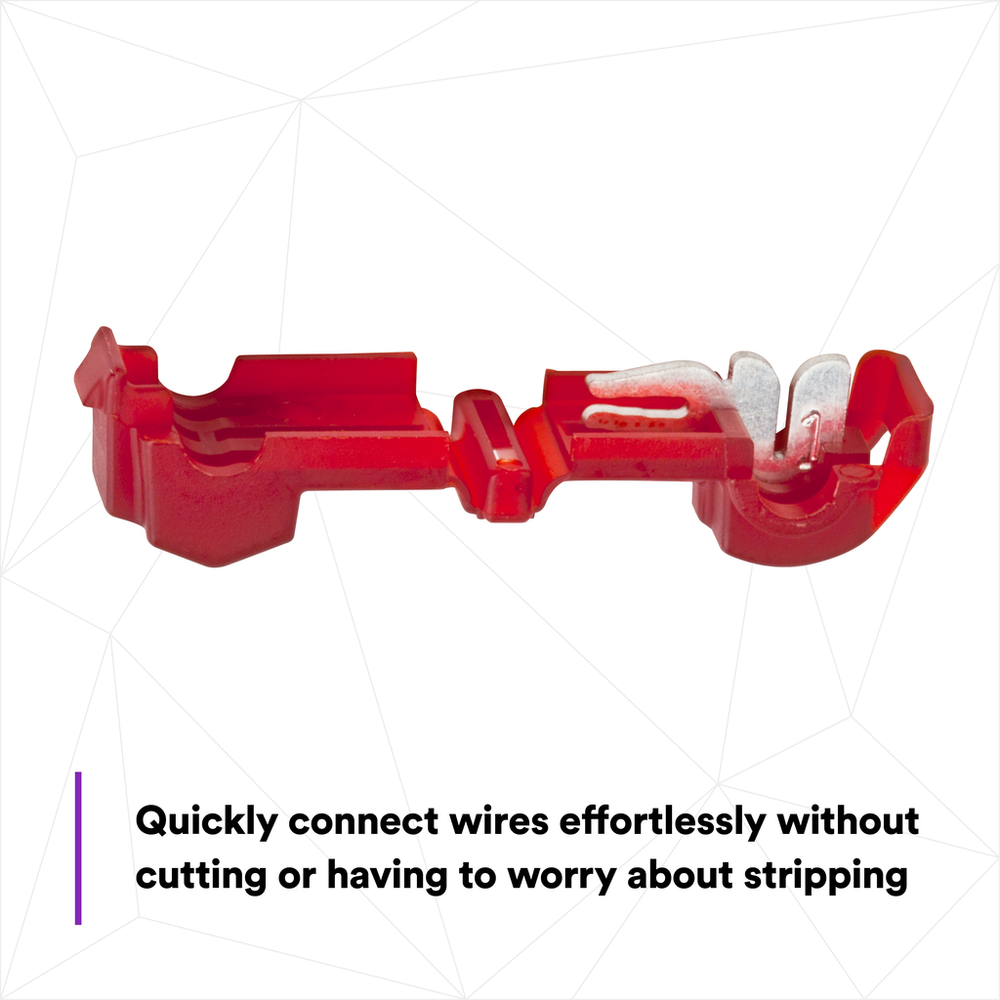

  • Nylon-insulated connector electrically taps into a wire in mid-span without cutting

Downloads

Specifications

Country of OriginUnited States
Recommended Crimping ToolE-9BM Mechanics (slip joint) Pliers
Connection Width (Metric)6.35
Maximum Conductor Size (Imperial)18 AWG
Maximum Recommended Voltage Rating600.0

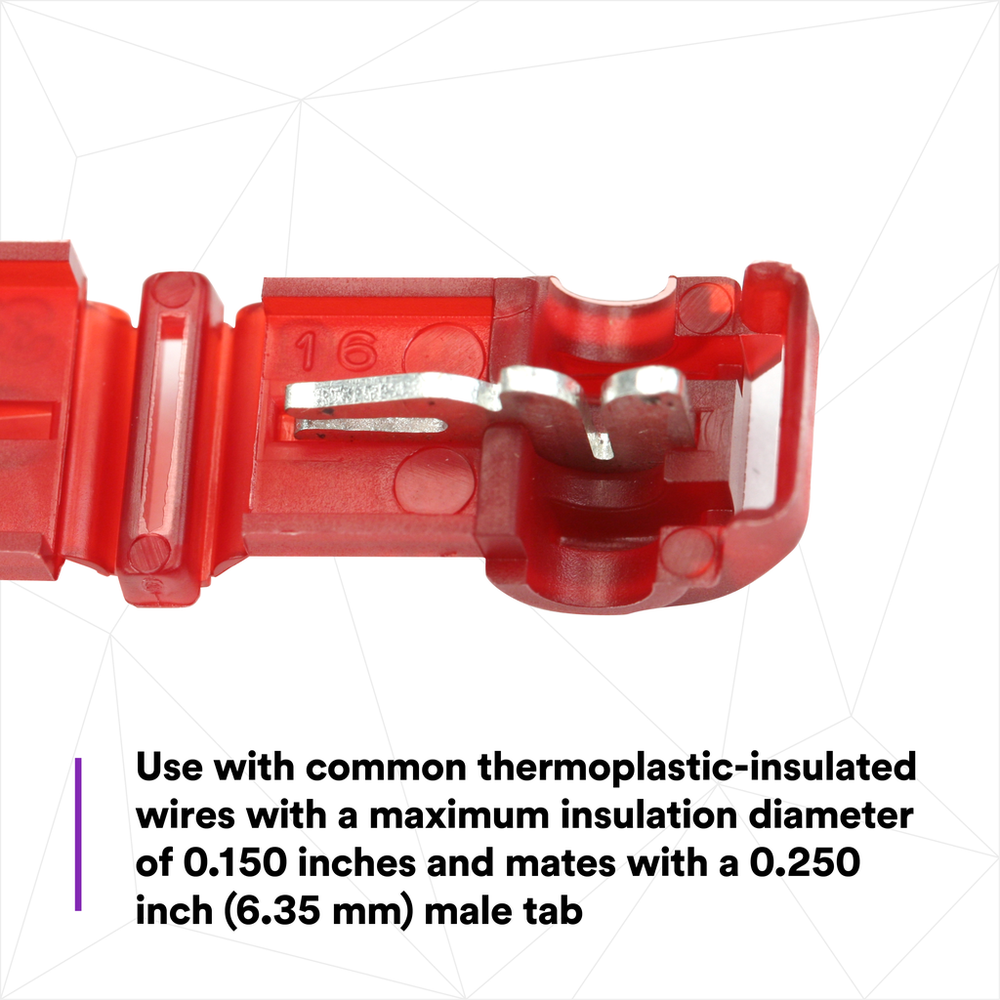

Maximum Insulation Outside Diameter0.145 in
Maximum Insulation Outer Diameter (Metric) UOMmm
Insulation ColorRed
Connection TypeT-tap
Disconnect TypeFemale
Flame RetardantYes
Minimum Conductor Size (Metric).34 mm²
MaterialInsulator: FR Nylon, Element: Tin-plated Brass
Product TypeConnector
Connector StyleInsulation Displacement
Maximum Insulation Outer Diameter (Metric)3.7
Maximum Recommended Voltage Rating UOMV
Connection Width (Metric) UOMmm
Barrel StyleInsulated Self-Stripping
Maximum Operating Temperature (Fahrenheit)221.0

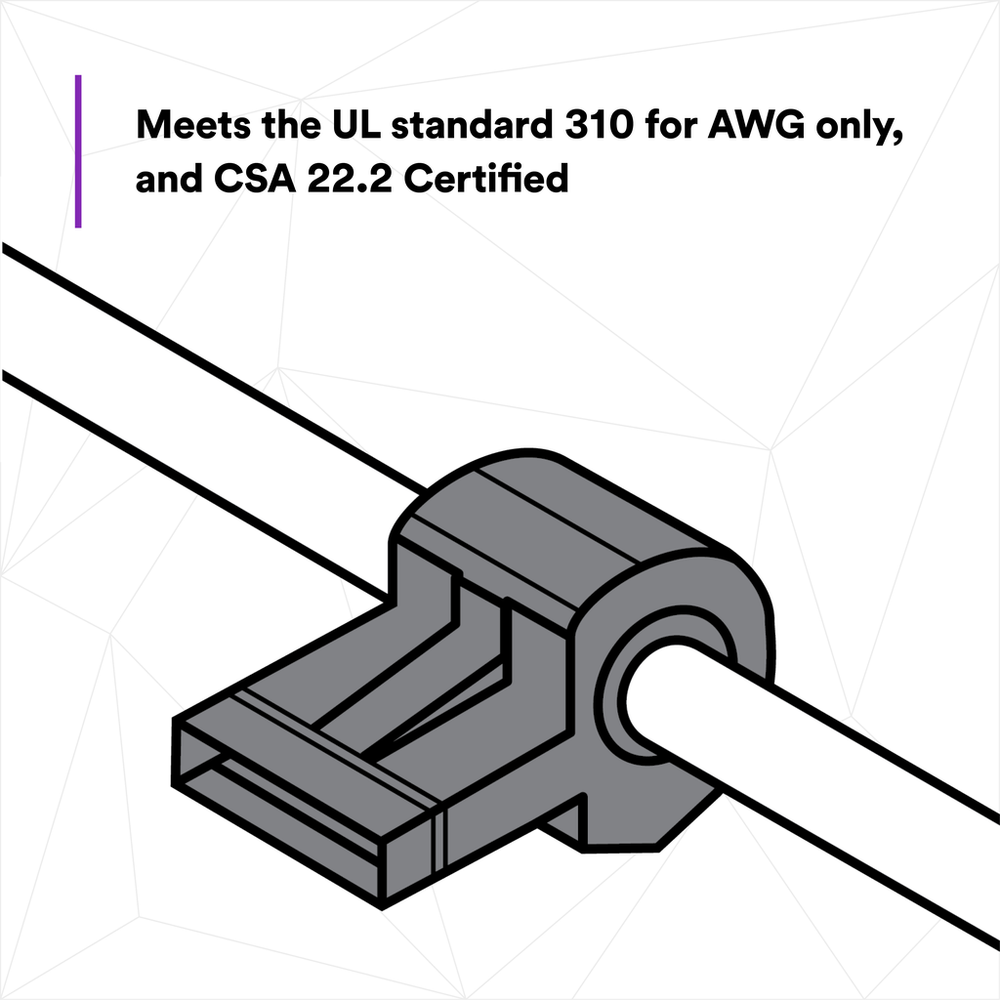

UL File NumberE70512, UL Listed for AWG Only
Connector / Connector Tool3M Crimping Tool E-9BM Mechanics (slip joint) Pliers
Maximum Operating Temperature (Fahrenheit) UOMDegree
Grease Filling Against CorrosionNo
Connection Width (Imperial) UOMin
Connection Width (Imperial)0.25
Product ColorRed
Minimum Conductor Size (Imperial)22 AWG
Maximum Operating Temperature (Celsius)105.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Metric)1 mm²
Insulation MaterialNylon
Fastener OrientationFemale
Terminal TypeT-tap
Maximum Operating Temperature (Celsius) UOMDegree
