3M Products & Supplies

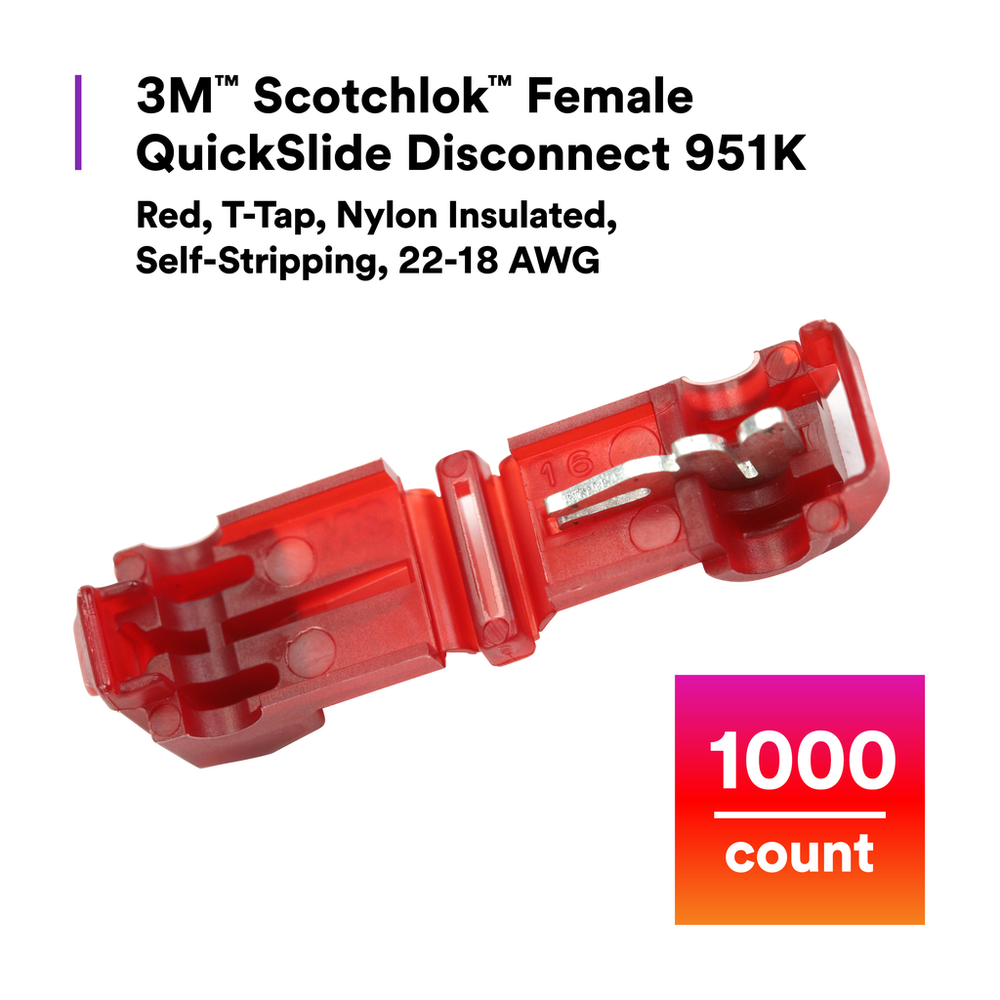

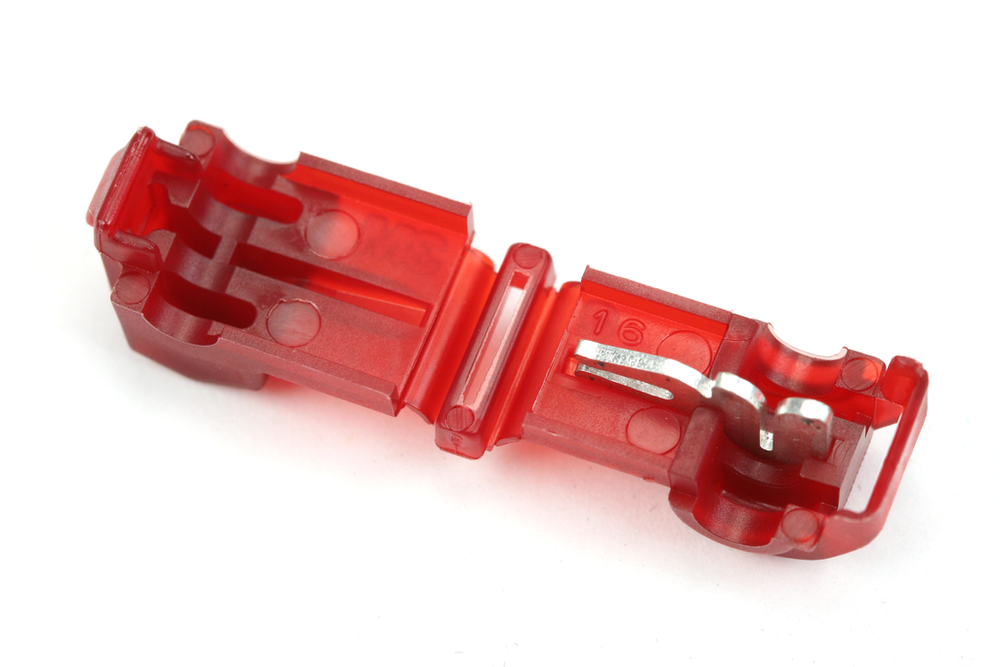

3M™ Scotchlok™ Female QuickSlide Disconnect, T-Tap Nylon Insulated Self-Stripping 951K, 22-18 AWG, 1000/case - 7000005801

Sold As: 1000-Pack
SKU: 7000005801
MPN: 7000005801
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007123132
3M ID: 80004000529
5 Digit UPC: 12313
$123.62 ($0.12 / Count)
Hurry up! Current stock:

Product Description

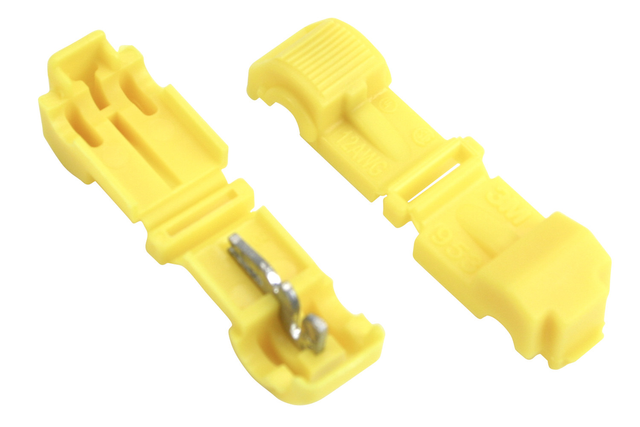

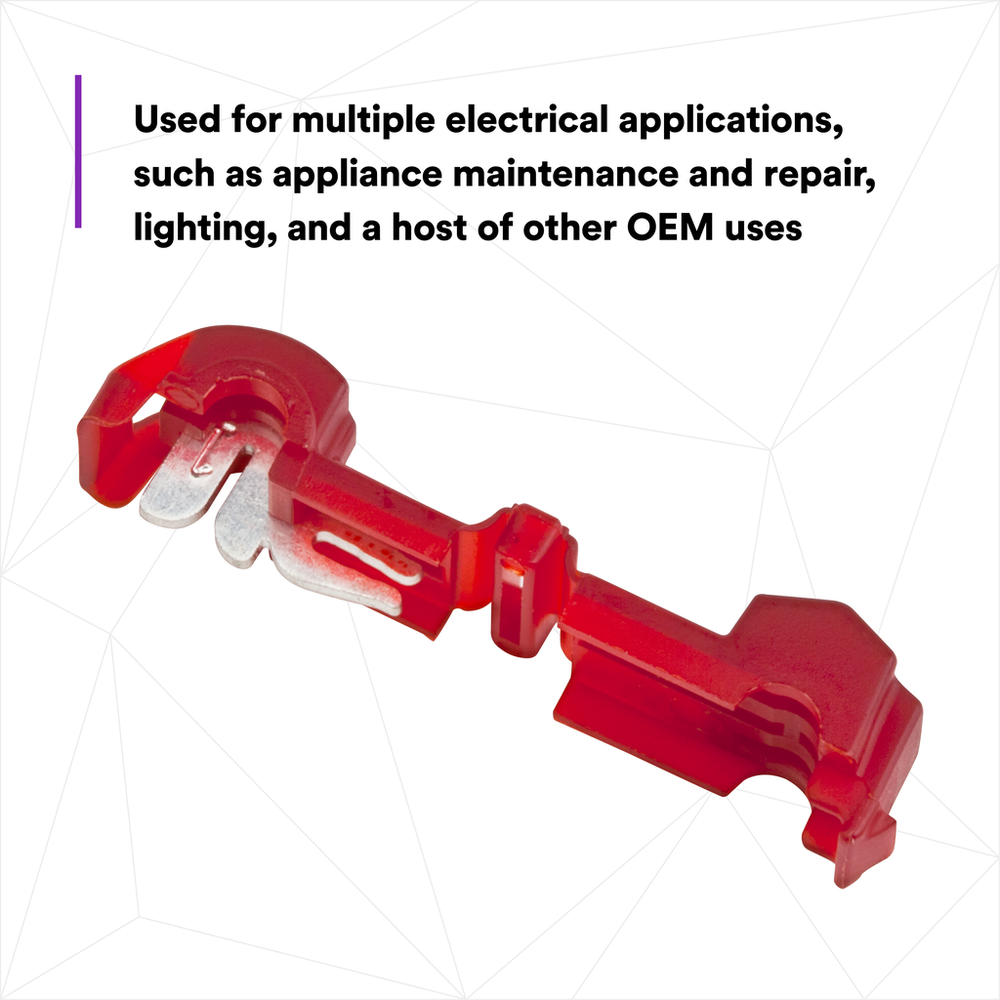

3M™ Scotchlok™ Insulation Displacement Connectors 951, 952 and 953 are quick slide t-tap disconnects used to electrically tap into a wire in mid span without cutting or stripping the wire. They feature nylon insulation, making them ideal for use in light fixtures, appliances and other electrical OEM applications.

Features

  • Nylon-insulated connector electrically taps into a wire in mid-span without cutting
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Conductor Size (Metric)1 mm²
Minimum Conductor Size (Imperial)22 AWG
Connection TypeT-tap
PackagingBulk
Connection Width (Metric) UOMmm
Fastener OrientationFemale
Maximum Operating Temperature (Celsius)105.0

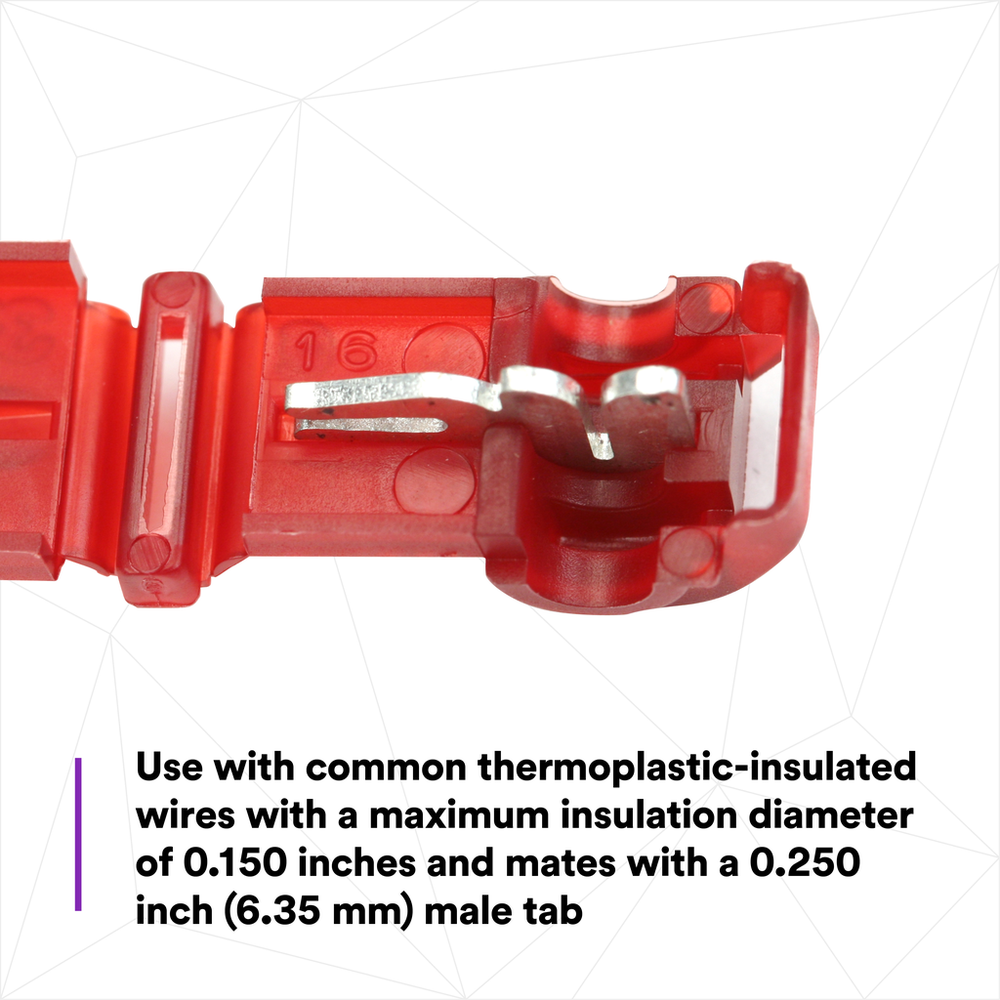

Maximum Insulation Outside Diameter0.150 in
Product ColorRed
Insulation MaterialNylon
Maximum Conductor Size (Imperial)18 AWG
UL File NumberE70512, UL Listed for AWG Only
Connection Width (Imperial) UOMin
MaterialInsulator: FR Nylon, Element: Tin-plated Brass
Maximum Recommended Voltage Rating600.0
Insulation ColorRed
Maximum Recommended Voltage Rating UOMV
Interrupt Free ShiftingNo
Max. Number of Cores1.0
Connector StyleInsulation Displacement
Wire Connector TypeIDC Connectors
Disconnect TypeFemale
Terminal TypeT-tap
Barrel StyleInsulated Self-Stripping
Minimum Conductor Size (Metric).34 mm²
Connector / Connector Tool3M Crimping Tool E-9BM Mechanics (slip joint) Pliers
Flame RetardantYes
Recommended Crimping ToolE-9BM Mechanics (slip joint) Pliers
Pad Width0.25
Maximum Operating Temperature (Fahrenheit) UOMDegree
Connection Width (Metric)6.35
Product TypeConnector
Insulation Outer Diameter (Imperial)0.15
Insulation Outer Diameter (Imperial) UOMin
Connection Width (Imperial)0.25
Maximum Insulation Outer Diameter (Metric) UOMmm
Conductor Sizes (Imperial)22 - 18 AWG
Grease Filling Against CorrosionNo
Maximum Insulation Outer Diameter (Metric)3.8
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
