3M Products & Supplies

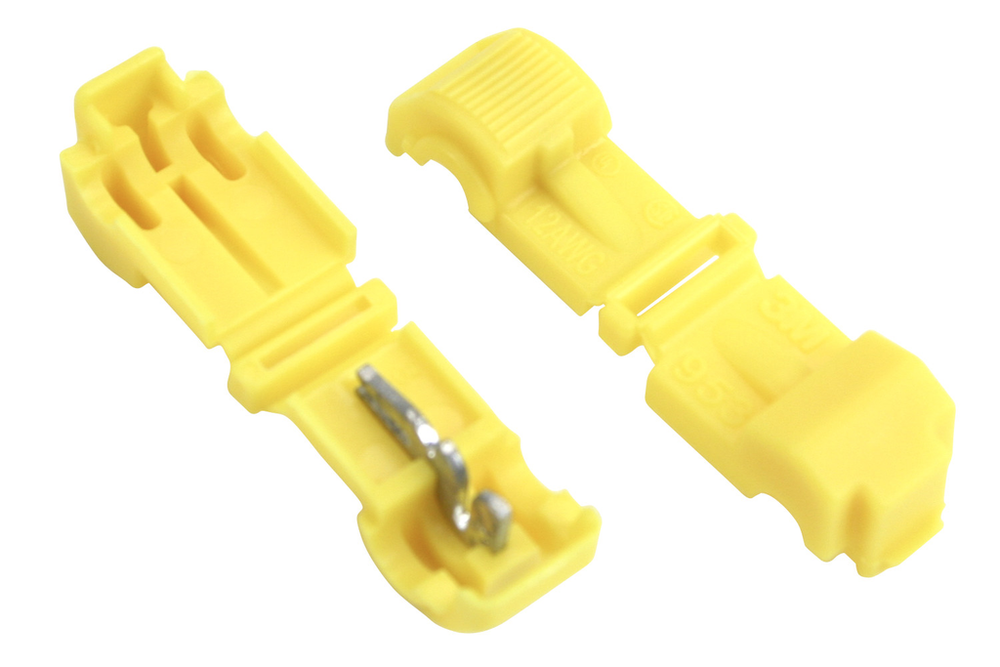

3M™ Scotchlok™ Female Self-Stripping Disconnect, T-Tap Nylon Insulated Self-Stripping 953X, Bottle, 12 AWG, 10 Packs/Case - 7000058874

Sold As: 10-Pack
SKU: 7000058874
MPN: 7000058874
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007123149
3M ID: 80611605793
5 Digit UPC: 12314
$191.04 ($19.10 / Count)
Hurry up! Current stock:

Product Description

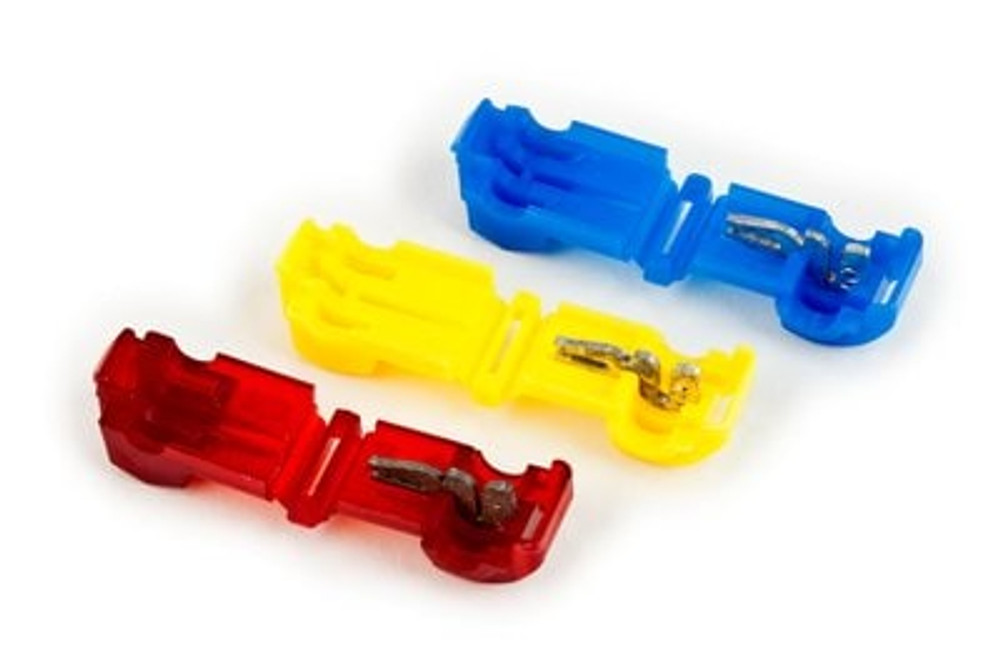

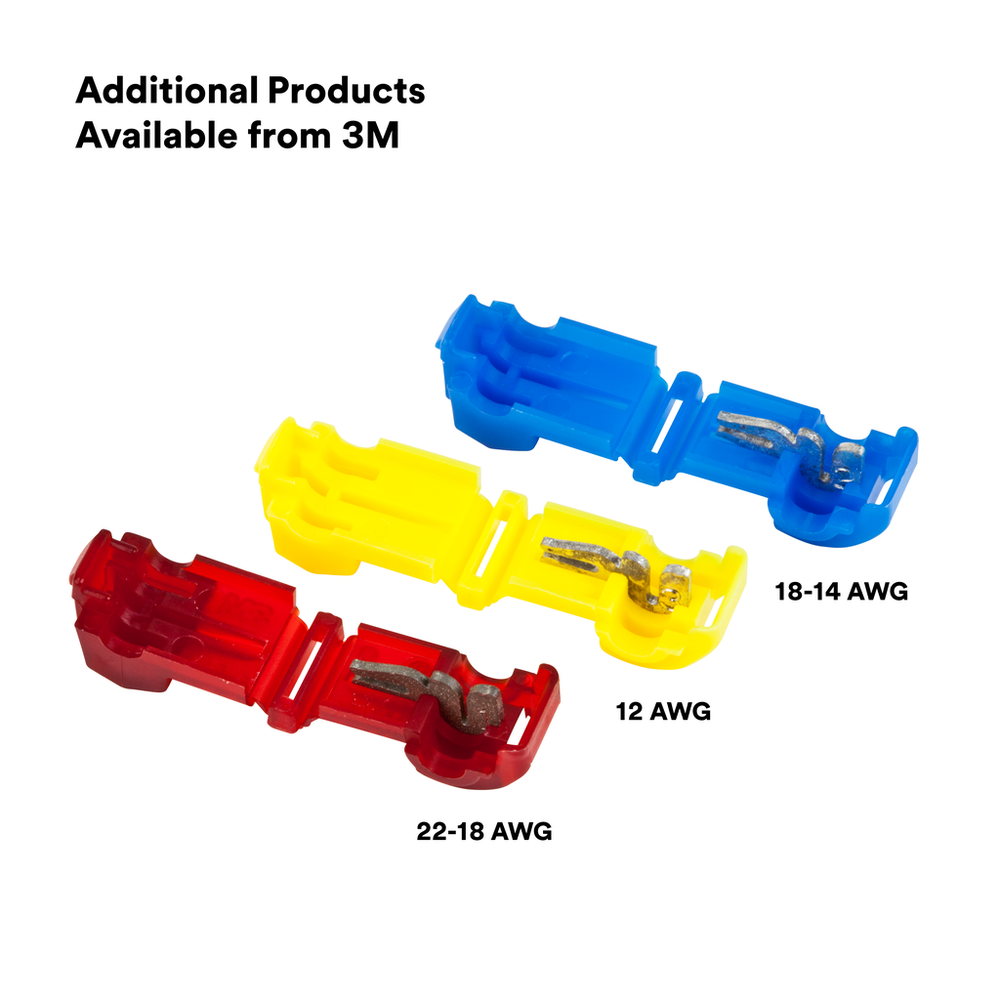

3M™ Scotchlok™ Insulation Displacement Connectors 951, 952 and 953 are quick slide t-tap disconnects used to electrically tap into a wire in mid span without cutting or stripping the wire. They feature nylon insulation, making them ideal for use in light fixtures, appliances and other electrical OEM applications.

Features

  • Nylon-insulated connector electrically taps into a wire in mid-span without cutting

Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Celsius)105.0
Terminal TypeDisconnect
Product ColorYellow
Maximum Operating Temperature (Fahrenheit)221.0
Minimum Conductor Size (Metric)4 mm²
Disconnect TypeFemale
Connection Width (Imperial) UOMin
Connection Width (Metric)6.35
Connector StyleInsulation Displacement
MaterialInsulator: FR Nylon, Element: Tin-plated Brass
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Flame RetardantYes
Minimum Conductor Size (Imperial)12 AWG
Connector / Connector Tool3M Crimping Tool E-9BM Mechanics (slip joint) Pliers
Maximum Recommended Voltage Rating600.0
Maximum Conductor Size (Imperial)12 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Recommended Voltage Rating UOMV
Insulation ColorYellow
Insulation MaterialNylon
Barrel StyleInsulated Self-Stripping
Recommended Crimping ToolE-9BM Mechanics (slip joint) Pliers
Grease Filling Against CorrosionNo
Maximum Operating Temperature (Fahrenheit) UOMDegree
UL File NumberE70512, UL Listed for AWG Only
Maximum Conductor Size (Metric)4 mm²
Connection Width (Imperial)0.25
Connection TypeT-tap
Product TypeConnector
Connection Width (Metric) UOMmm
Fastener OrientationFemale
