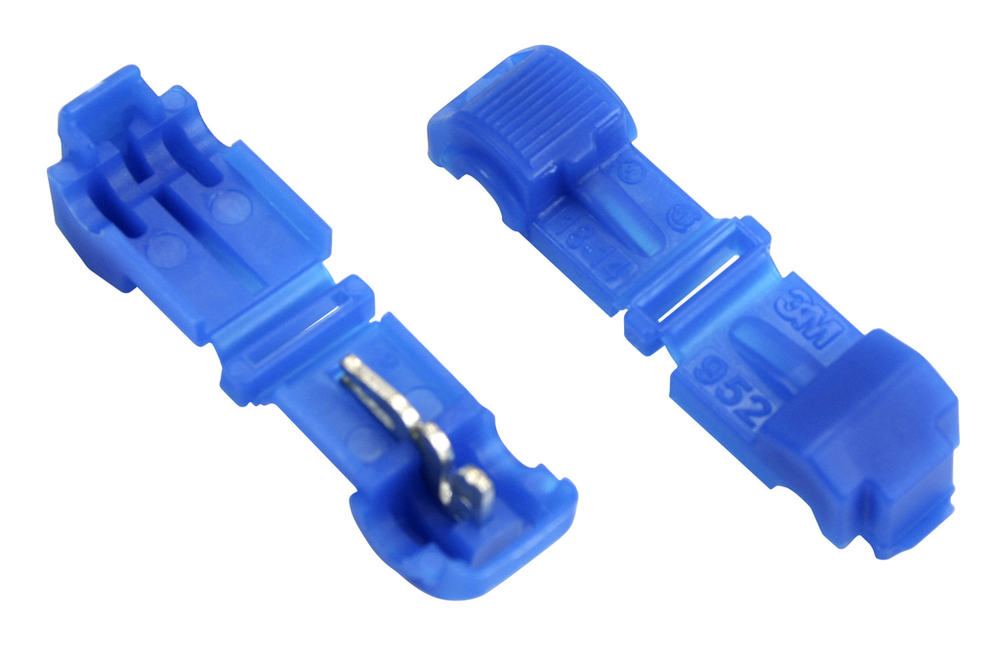

3M™ Scotchlok™ Female QuickSlide Disconnect, T-Tap Nylon Insulated Self-Stripping 952X-Bottle, 18-14 AWG, 10 Packs/Case - 7000058873

Sold As: 500-Pack
SKU: 7000058873
MPN: 7000058873
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007084273
3M ID: 80611605785
5 Digit UPC: 8427
$212.80 ($0.43 / Count)
Hurry up! Current stock:

Product Description

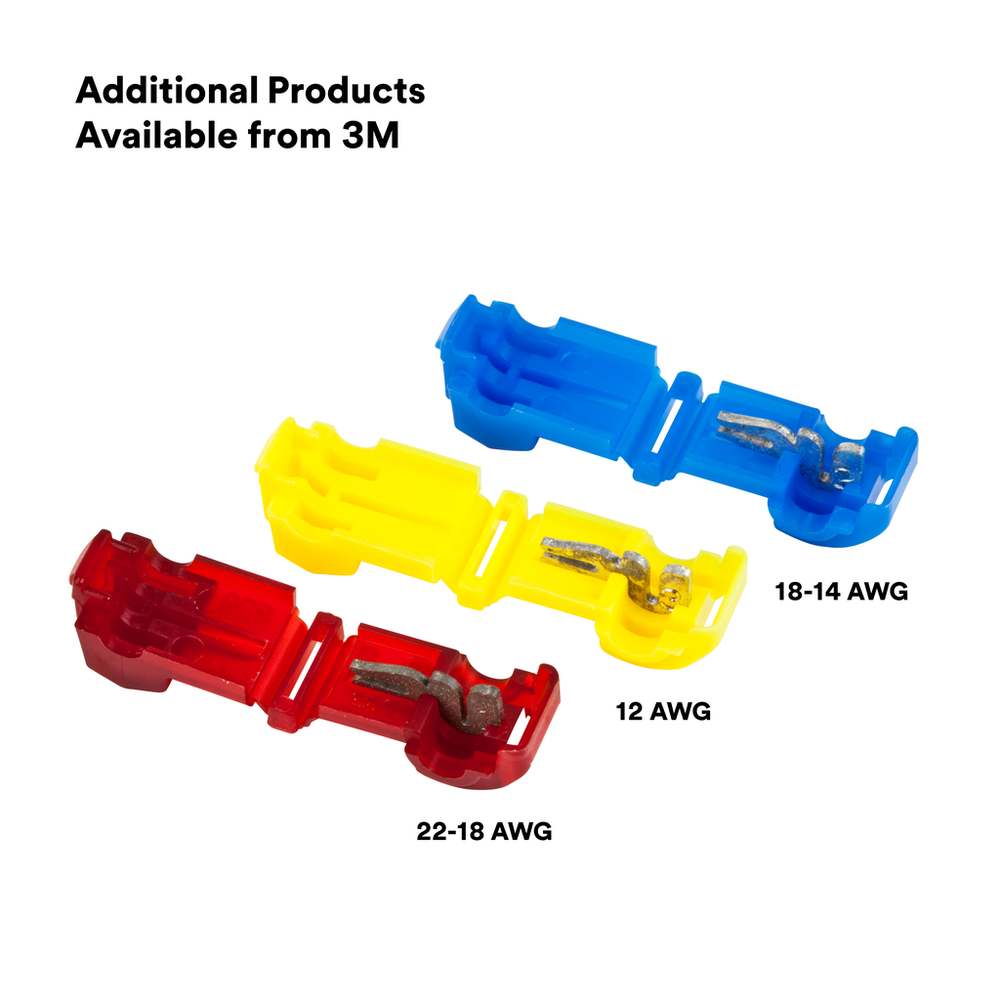

3M™ Scotchlok™ Insulation Displacement Connectors 951, 952 and 953 are quick slide t-tap disconnects used to electrically tap into a wire in mid span without cutting or stripping the wire. They feature nylon insulation, making them ideal for use in light fixtures, appliances and other electrical OEM applications.

Features

  • Nylon-insulated connector electrically taps into a wire in mid-span without cutting

Downloads

Specifications

Country of OriginUnited States
Terminal TypeDisconnect
Connection Width (Metric) UOMmm
Maximum Conductor Size (Imperial)14 AWG
Maximum Insulation Outer Diameter (Metric)3.7
Maximum Insulation Outer Diameter (Metric) UOMmm
Maximum Conductor Size (Metric)2.5 mm²
Connection Width (Imperial) UOMin
Connector StyleInsulation Displacement
Maximum Recommended Voltage Rating UOMV
Product ColorBlue
Insulation MaterialNylon
Maximum Operating Temperature (Celsius) UOMDegree
Fastener OrientationFemale
UL File NumberE70512, UL Listed for AWG Only
Minimum Conductor Size (Metric)1 mm²
Insulation ColorBlue
Product TypeConnector
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit)221.0
Barrel StyleInsulated Self-Stripping
Recommended Crimping ToolE-9BM Mechanics (slip joint) Pliers
Connector / Connector Tool3M Crimping Tool E-9BM Mechanics (slip joint) Pliers
Connection Width (Metric)6.35
Conductor Sizes (Imperial)18 - 14 AWG (0.75 - 1.5 mm^2)
Connection Width (Imperial)0.25
Flame RetardantYes
Maximum Recommended Voltage Rating600.0
Minimum Conductor Size (Imperial)18 AWG
Maximum Operating Temperature (Celsius)105.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connection TypeT-tap
Maximum Insulation Outside Diameter0.145 in
Disconnect TypeFemale
Grease Filling Against CorrosionNo
MaterialInsulator: FR Nylon, Element: Tin-plated Brass
