3M Products & Supplies

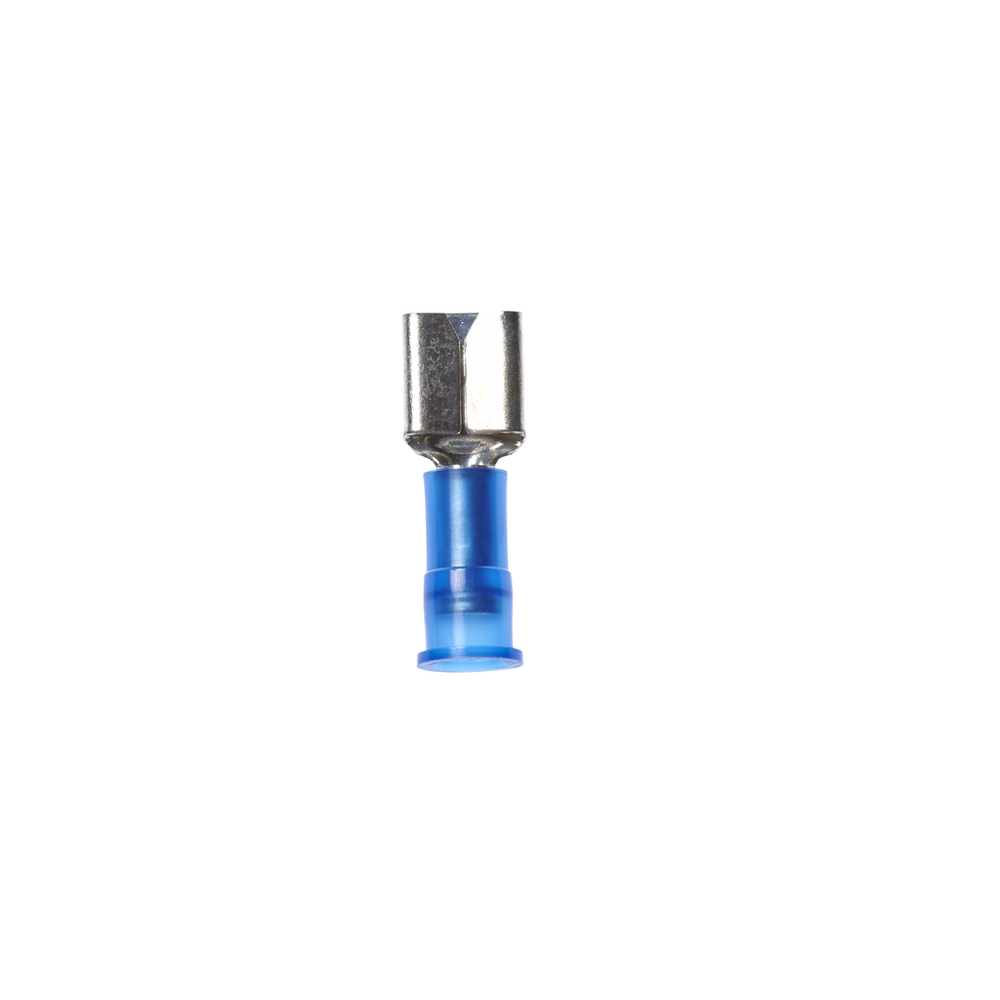

3M™ Scotchlok™ Female Disconnect, Nylon Insulated w/Insulation Grip MNG14-250DFK, 16-14 AWG, MNG14-250DFK, 1000/Case - 7000057715

Sold As: 1000-Pack
SKU: 7000057715
MPN: 7000057715
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007017745
3M ID: 80610046775
5 Digit UPC: 1774
$466.71 ($0.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Female Disconnect Terminals have dents and rolled edges to offer great holding force while allowing for quick and easy disconnect. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Allows for quick and easy disconnect of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Packaging1000 per bulk box
Maximum Conductor Size (Metric)2.5 mm²
Maximum Insulation Outer Diameter (Imperial) UOMin
Connection Width (Imperial)0.25
Maximum Operating Temperature (Celsius) UOMDegree
Connection Width (Imperial) UOMin
Overall Length (Imperial)0.86
Pad Width0.25
Maximum Operating Temperature (Celsius)105.0
Mates with Female Width0.25 Inch
Barrel Length (Imperial)0.25 Inch
Tab Width0.250
UL File NumberE70512
Overall Length (Imperial) UOMin
Insulation MaterialNylon with Insulation Grip
Barrel Inside Diameter0.08 Inch
Maximum Conductor Size (Imperial)14 AWG
Maximum Insulation Outer Diameter (Imperial)0.145
Units per Case1000.0
Minimum Conductor Size (Metric)1.5 mm²
Terminal StyleStandard
Fastener OrientationFemale
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Operating Temperature Range (Celsius)-40 °C to 105 °C
Barrel StyleButted
Mates with Male Tab Width (W')0.25 Inch
Disconnect TypeFemale
Terminal TypeDisconnect
Connection Width (Metric)6.35
Connection Width (Metric) UOMmm
Minimum Conductor Size (Imperial)16 AWG
