3M Products & Supplies

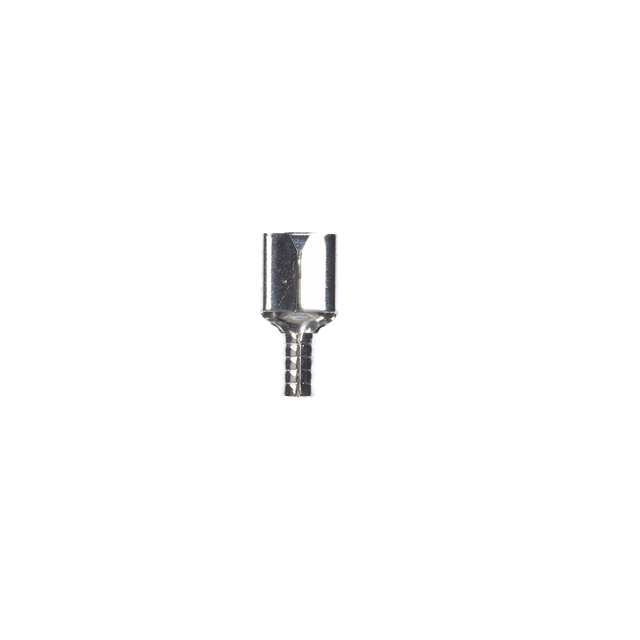

3M™ Scotchlok™ Female Disconnect, Vinyl Insulated Butted Seam MVU14-250DFK, 16-14 AWG, 1000/Case - 7000132257

Sold As: 1000-Pack
SKU: 7000132257
MPN: 7000132257
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007017776
3M ID: 80610046833
5 Digit UPC: 1777
$307.12 ($0.31 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Butted Seam Female Disconnect has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Allows for quick and easy disconnect of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
UL File NumberE70512
Solution forWireless Network: Infrastructure Accessories
Tab Width0.187
Barrel StyleButted
Overall Length (Imperial)0.87
Barrel Inside Diameter0.08 Inch
Terminal TypeDisconnect
Connector / Connector ToolConnector
Units per Case1000.0
Pad Width0.25
Maximum Insulation Outer Diameter (Metric) UOMmm
Insulation ColorBlue
Barrel Length (Imperial)0.25 Inch
Connection TypeWire
Maximum Recommended Voltage Rating UOMV
Grease Filling Against CorrosionNo
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)105.0
Connection Width (Metric)6.35
Overall Length (Imperial) UOMin
Maximum Insulation Outside Diameter0.145 in
Minimum Conductor Size (Imperial)16 AWG
Maximum Recommended Voltage Rating600.0
Fastener OrientationFemale
Flame RetardantNo
Maximum Operating Temperature (Fahrenheit) UOMDegree
Packaging1000 per bulk box
Minimum Conductor Size (Metric)1.5 mm²
Maximum Insulation Outer Diameter (Imperial)0.145
Disconnect TypeFemale
Connection Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Insulation Outer Diameter (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Diameter (Imperial) UOMin
Insulation MaterialVinyl
Connector StyleInsulation Displacement
Terminal StyleStandard
Mates with Female Width0.25 Inch
Maximum Conductor Size (Imperial)14 AWG
Connection Width (Imperial) UOMin
Interrupt Free ShiftingNo
Mates with Male Tab Width (W')0.25 Inch
Connection Width (Imperial)0.25
Overall Diameter (Imperial)0.23
Maximum Conductor Size (Metric)2.5 mm²
Diameter (D)0.23 Inch
Maximum Insulation Outer Diameter (Metric)3.7
Conductor Sizes (Imperial)16 - 14 AWG
