3M Products & Supplies

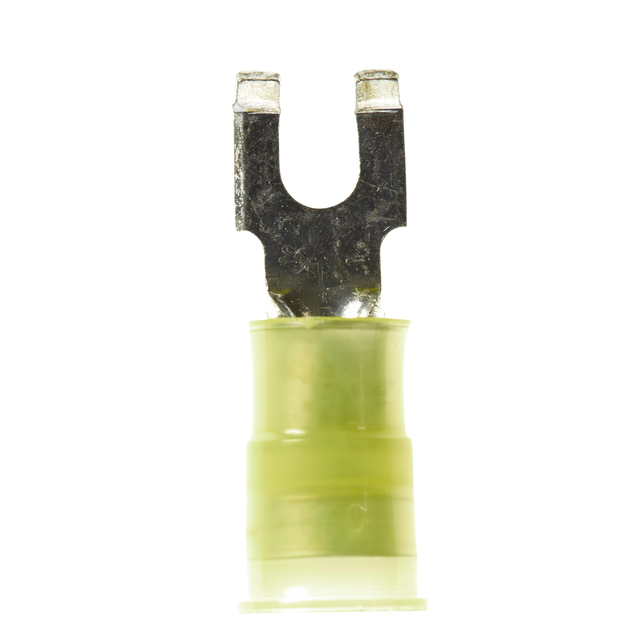

3M™ Scotchlok™ Fork Nylon Insulated, 100/bottle, MNG18-6FX, wider-tongue design for use on free-standing studs, 500/Case - 7000133277

Sold As: 500-Pack
SKU: 7000133277
MPN: 7000133277
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128586501
3M ID: 80611457955
5 Digit UPC: 58650
$651.82 ($1.30 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Fork Terminal has a wider tongue for use on free-standing studs. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Wider tongue design for use on free-standing studs
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Electrolytic copper construction offers good conductivity

Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Celsius)105.0
Overall Width (Imperial)0.34
Dimension E0.73 Inch
Maximum Insulation Outside Diameter0.145 in
Packaging100 per bottle
Overall Length (Imperial) UOMin
Fork TypeStandard
Maximum Recommended Voltage Rating UOMV
Terminal StyleStandard
Maximum Conductor Size (Metric).0823 mm²
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Recommended Voltage Rating600.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Conductor Size (Imperial)22 AWG
Overall Length (Imperial)0.89
Overall Width (Metric) UOMmm
Barrel StyleButted
Overall Width (Metric)8.6
UL File NumberE23438
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)22.6
Product ColorRed
Maximum Insulation Outer Diameter (Metric) UOMmm
MaterialETP Copper
Overall Length (Metric) UOMmm
Minimum Conductor Size (Metric)0.326 mm²
Maximum Insulation Outer Diameter (Imperial)0.145
Maximum Conductor Size (Imperial)18 AWG
Overall Width (Imperial) UOMin
Clearance (C)0.29 Inch
Maximum Insulation Outer Diameter (Metric)3.7
Insulation MaterialNylon with Insulation Grip
Units per Case500.0
Maximum Insulation Outer Diameter (Imperial) UOMin
Stud Size#6
Barrel Inside Diameter0.070 Inch
Terminal TypeFork
Maximum Operating Temperature (Fahrenheit) UOMDegree
