3M Products & Supplies

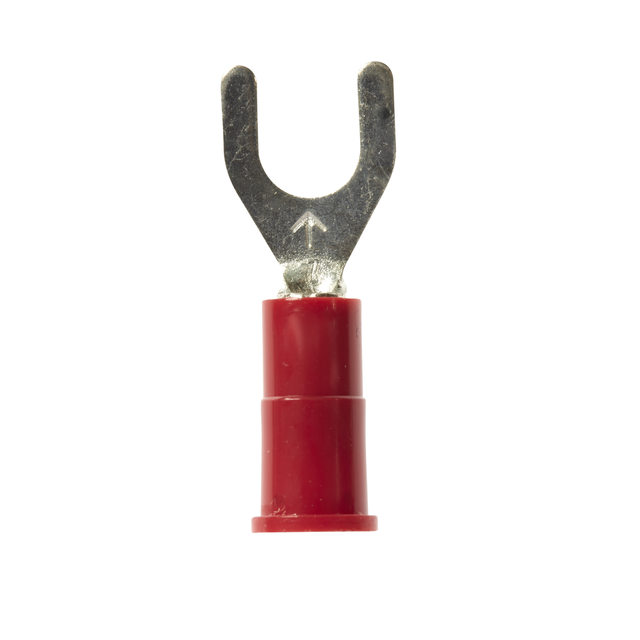

3M™ Scotchlok™ Fork Vinyl Insulated, 50/bottle, MVU10-10FX, wider-tongue design for use on free-standing studs, 500/Case - 7010320782

Sold As: 50-Pack
SKU: 7010320782
MPN: 7010320782
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128588847
3M ID: 80611465305
5 Digit UPC: 58884
$21.47 ($0.43 / Count)
Hurry up! Current stock:

Product Description

Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial)0.38
Stud Diameter (Imperial) UOMin
Maximum Conductor Size (Imperial)10 AWG
Maximum Operating Temperature (Fahrenheit) UOMDegree
Packaging50 per bottle
Stud Diameter (Metric) UOMmm
Insulation MaterialVinyl
Dimension E0.84 Inch
Maximum Operating Temperature (Celsius)105.0
Minimum Conductor Size (Metric)3.31 mm²
UL File NumberE23438
Maximum Operating Temperature (Fahrenheit)221.0
Clearance (C)0.29 Inch
Maximum Insulation Outer Diameter (Imperial)0.25
Maximum Conductor Size (Metric)5.26 mm²
Overall Width (Imperial) UOMin
Maximum Insulation Outer Diameter (Metric)6.35
Stud Diameter (Metric)4.826
Barrel StyleButted
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)1.03
Terminal StyleStandard
Overall Length (Imperial) UOMin
Stud Size#10
Minimum Conductor Size (Imperial)12 AWG
Barrel Inside Diameter0.135 Inch
Stud Diameter (Imperial)0.19
Terminal TypeFork
Maximum Insulation Outer Diameter (Metric) UOMmm
Maximum Insulation Outer Diameter (Imperial) UOMin
Units per Case500.0
Fork TypeStandard
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
