3M Products & Supplies

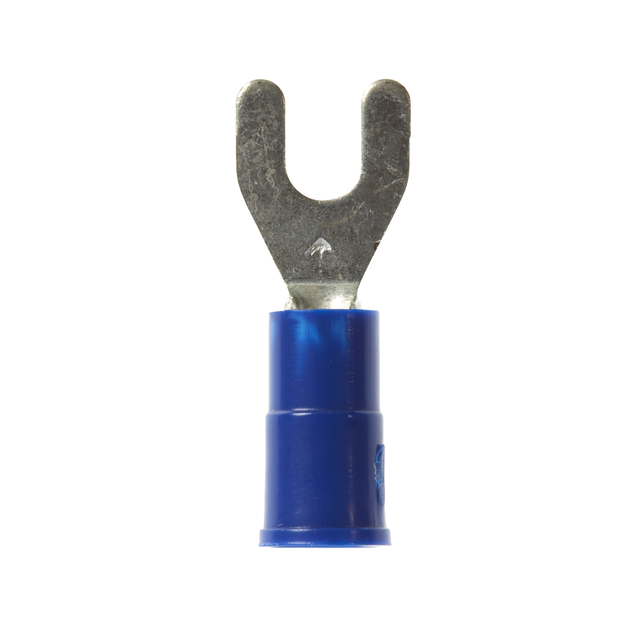

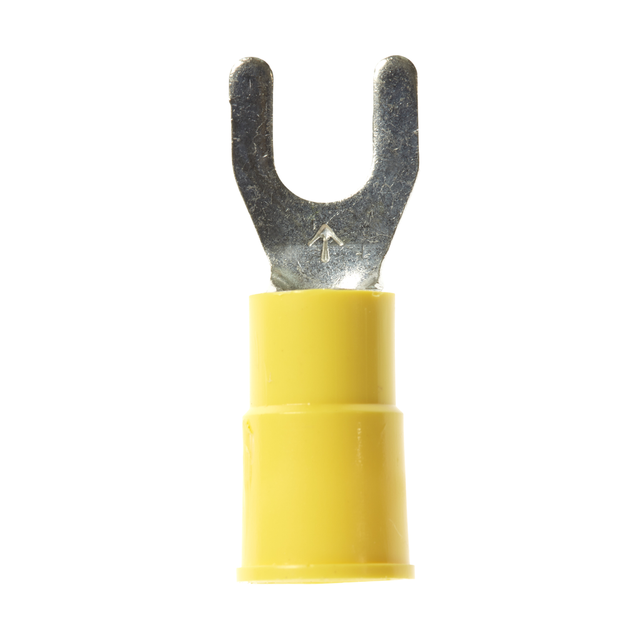

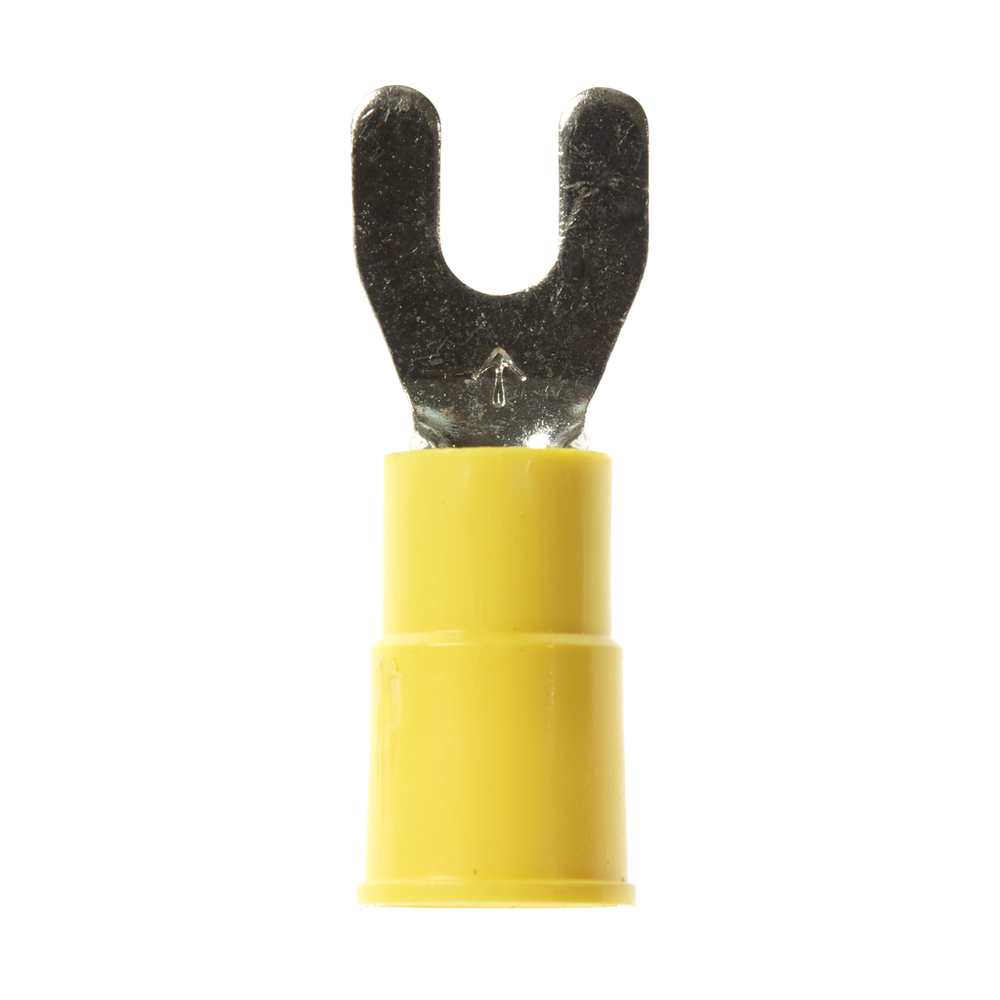

3M™ Scotchlok™ Fork Vinyl Insulated, 50/bottle, MVU10-6FX, wider-tongue design for use on free-standing studs, 500/Case - 7010351290

Sold As: 500-Pack
SKU: 7010351290
MPN: 7010351290
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128588564
3M ID: 80611465024
5 Digit UPC: 58856
$214.66 ($0.43 / Count)
Hurry up! Current stock:

Product Description

Downloads

Specifications

Country of OriginUnited States
Stud Diameter (Imperial) UOMin
Terminal StyleStandard
Maximum Conductor Size (Metric)5.26 mm²
Overall Length (Imperial)1.03
Packaging50 per bottle
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Conductor Size (Metric)3.31 mm²
Stud Size#6
Maximum Insulation Outer Diameter (Imperial) UOMin
Barrel StyleButted
Maximum Operating Temperature (Celsius) UOMDegree
UL File NumberE70512
Overall Width (Imperial) UOMin
Overall Width (Imperial)0.38
Maximum Operating Temperature (Fahrenheit) UOMDegree
Terminal TypeFork
Stud Diameter (Metric) UOMmm
Stud Diameter (Metric)3.505
Maximum Operating Temperature (Fahrenheit)221.0
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Imperial)10 AWG
Fork TypeBlock
Overall Length (Imperial) UOMin
Stud Diameter (Imperial)0.138
Maximum Operating Temperature (Celsius)105.0
Units per Case500.0
Insulation MaterialVinyl
Dimension E0.84 Inch
Clearance (C)0.29 Inch
Maximum Insulation Outer Diameter (Imperial)0.25
Barrel Inside Diameter0.135 Inch
Minimum Conductor Size (Imperial)12 AWG
