3M Products & Supplies

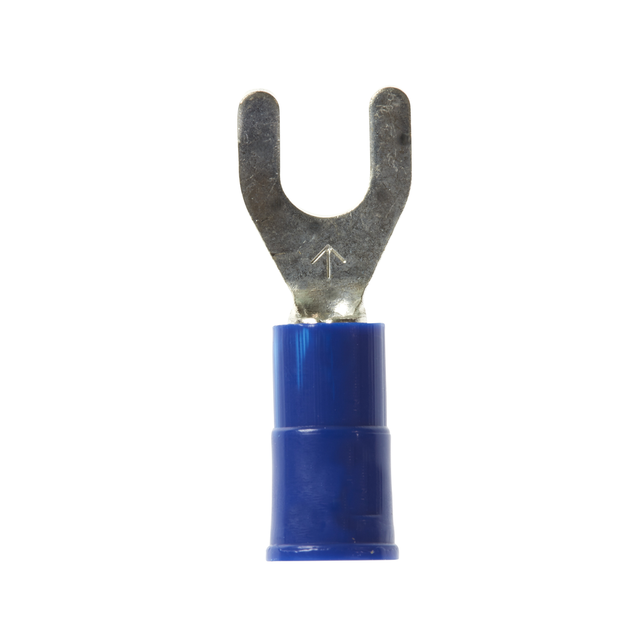

3M™ Scotchlok™ Fork, Vinyl Insulated Brazed Seam MV14-6FK, 16-14 AWG, 1000/Case - 7100184975

Sold As: 1000-Pack
SKU: 7100184975
MPN: 7100184975
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007015284
3M ID: 80610042725
5 Digit UPC: 1528
$404.52 ($0.40 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Electrolytic copper construction offers good conductivity
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Wider-tongue design for use on free-standing studs
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Dimension E0.74 Inch
Maximum Operating Temperature (Celsius) UOMDegree
Terminal TypeFork
Clearance (C)0.29 Inch
Terminal StyleStandard
Maximum Operating Temperature (Fahrenheit)221.0
Barrel Inside Diameter0.09 Inch
Overall Length (Imperial) UOMin
Maximum Conductor Size (Imperial)14 AWG
Barrel Length (Imperial)0.25 Inch
Maximum Insulation Outer Diameter (Imperial)0.17
Stud Size#6
Packaging1000 per bulk box
Overall Width (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Metric)2.08 mm²
Minimum Conductor Size (Imperial)16 AWG
Operating Temperature Range (Celsius)-40 °C to 105 °C
Barrel StyleBrazed
Maximum Operating Temperature (Fahrenheit) UOMDegree
Units per Case1000.0
Maximum Operating Temperature (Celsius)105.0
Fork TypeStandard Fork
Insulation MaterialVinyl
Maximum Insulation Outer Diameter (Imperial) UOMin
Overall Length (Imperial)0.9
Minimum Conductor Size (Metric)1.31 mm²
UL File NumberE23438
Overall Width (Imperial)0.34
