3M Products & Supplies

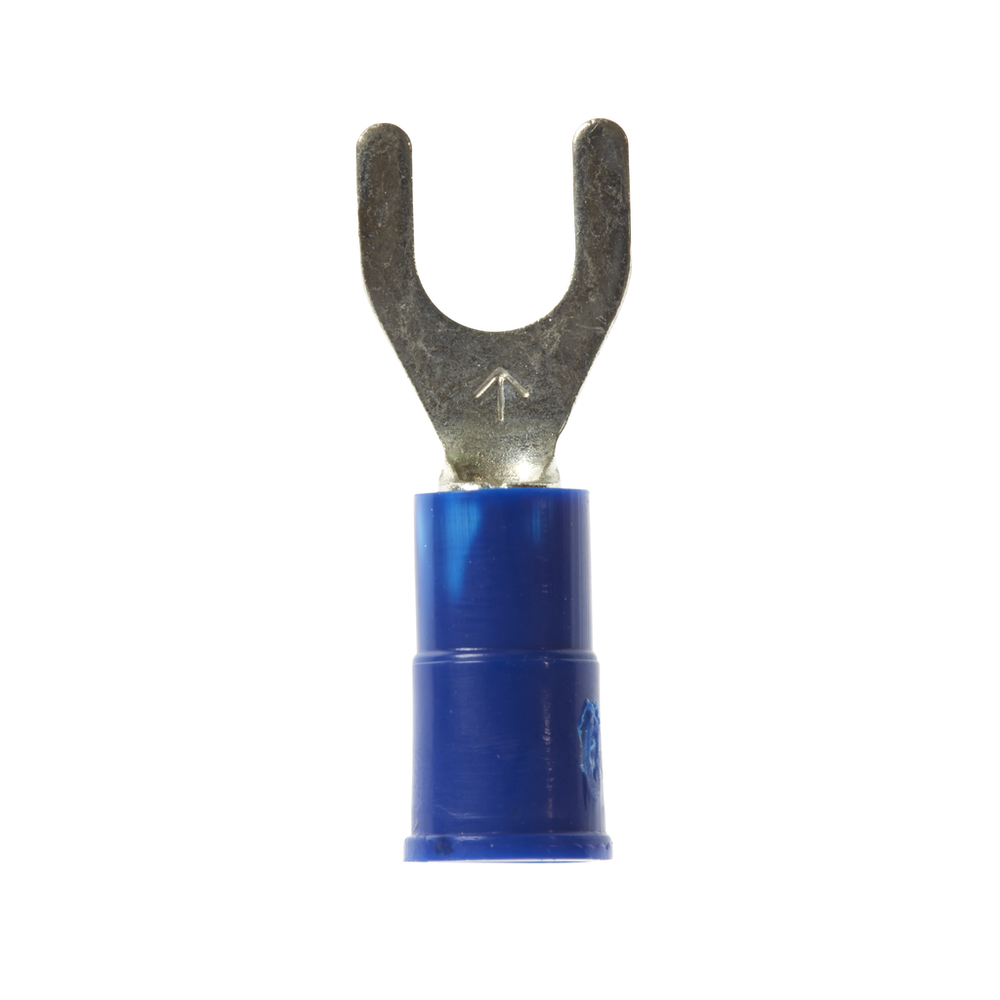

3M™ Scotchlok™ Fork, Vinyl Insulated Brazed Seam MV14-10FK, 16-14 AWG, 1000/Case - 7100164018

Sold As: 1000-Pack
SKU: 7100164018
MPN: 7100164018
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007015321
3M ID: 80610042766
5 Digit UPC: 1532
$404.52 ($0.40 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Electrolytic copper construction offers good conductivity
  • Wider-tongue design for use on free-standing studs
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Celsius)105.0
Maximum Conductor Size (Metric)2.08 mm²
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Fork TypeStandard
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Operating Temperature Range (Celsius)-40 °C to 105 °C
Packaging1000 per bulk box
Maximum Conductor Size (Imperial)14 AWG
Stud Size#10
Barrel StyleBrazed
Maximum Operating Temperature (Celsius) UOMDegree
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Barrel Inside Diameter0.09 Inch
Barrel Length (Imperial)0.25 Inch
Minimum Conductor Size (Imperial)16 AWG
Clearance (C)0.29 Inch
Maximum Operating Temperature (Fahrenheit)221.0
Minimum Conductor Size (Metric)1.31 mm²
Overall Length (Imperial) UOMin
Units per Case1000.0
Maximum Insulation Outer Diameter (Imperial)0.17
Terminal StyleStandard
Terminal TypeFork
Insulation MaterialVinyl
Overall Width (Imperial)0.34
Overall Width (Imperial) UOMin
Overall Length (Imperial)0.9
UL File NumberE23438
Dimension E0.74 Inch
