3M Products & Supplies

3M™ Scotchlok™ Fork, Non-Insulated Brazed Seam M14-10FK, 16-14 AWG, 1000/Case - 7100164016

Sold As: 1000-Pack
SKU: 7100164016
MPN: 7100164016
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007015208
3M ID: 80610042634
5 Digit UPC: 1520
$245.69 ($0.25 / Count)
Hurry up! Current stock:

Product Description

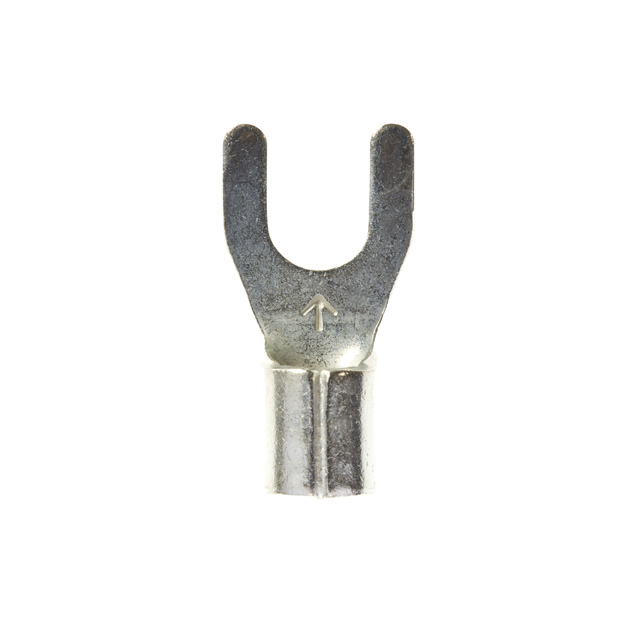

3M™ Fork Terminal has a wider tongue for use on free-standing studs. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Electrolytic copper construction offers good conductivity
  • Wider tongue design for use on free-standing studs
  • Beveled mouth offers easy insertion of wires
  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial) UOMin
Maximum Conductor Size (Imperial)14 AWG
Units per Case1000.0
UL File NumberE23438
Barrel Length (Imperial)0.25 Inch
Overall Length (Imperial)0.7
Minimum Conductor Size (Imperial)16 AWG
Barrel StyleBrazed
Maximum Conductor Size (Metric)2.08 mm²
Barrel Inside Diameter0.09 Inch
Overall Width (Imperial) UOMin
Stud Size#10
Minimum Conductor Size (Metric)1.31 mm²
Terminal StyleStandard
Dimension E0.54 Inch
Clearance (C)0.29 Inch
Packaging1000 per bulk box
Fork TypeStandard
Insulation MaterialNon-insulated
Terminal TypeFork
Overall Width (Imperial)0.34
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
