3M Products & Supplies

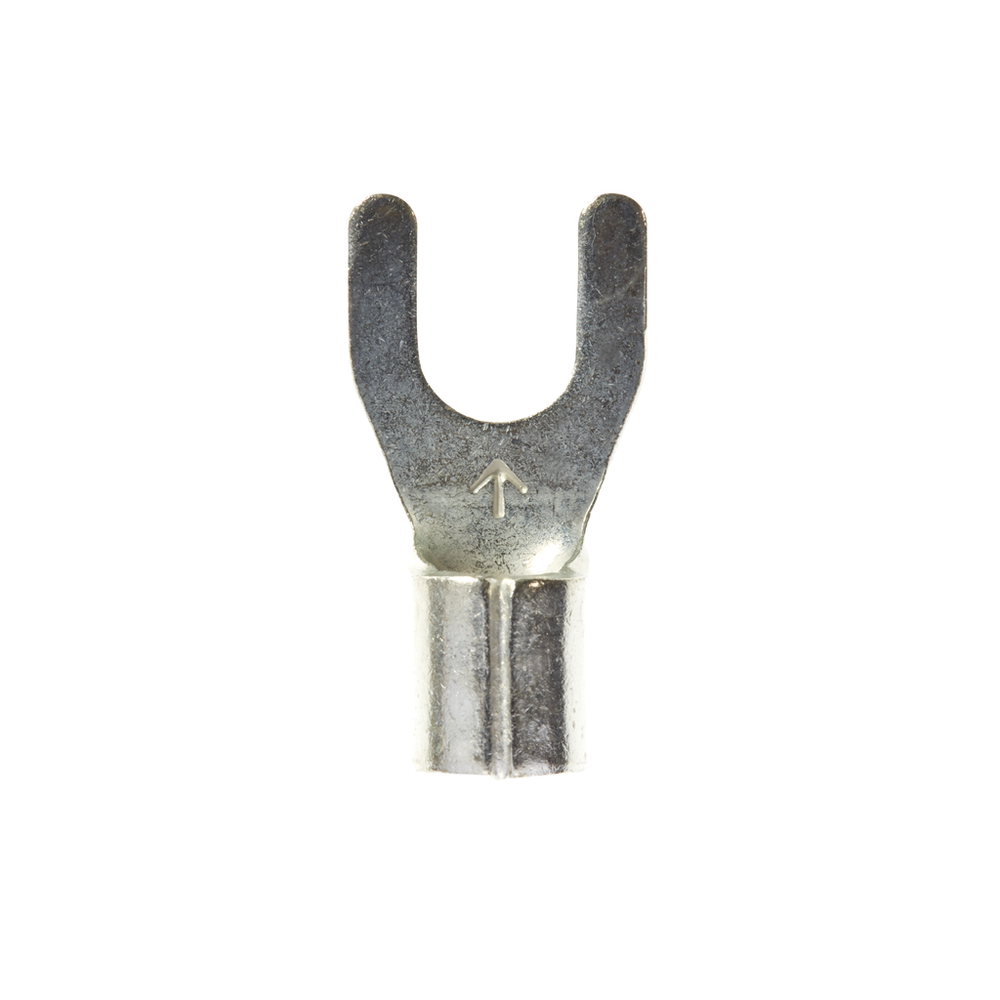

3M™ Scotchlok™ Fork, Non-Insulated Brazed Seam M10-10FK, 12-10 AWG, 500/Case - 7100164100

Sold As: 500-Pack
SKU: 7100164100
MPN: 7100164100
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007019749
3M ID: 80610049589
5 Digit UPC: 1974
$153.56 ($0.31 / Count)
Hurry up! Current stock:

Product Description

3M™ Fork Terminal has a wider tongue for use on free-standing studs. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Beveled mouth offers easy insertion of wires
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Wider tongue design for use on free-standing studs
  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Electrolytic copper construction offers good conductivity
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial)0.73
Packaging500 per bulk box
Minimum Conductor Size (Metric)3.31 mm²
Dimension E0.54 Inch
Barrel StyleBrazed
Overall Width (Imperial)0.38
Barrel Length (Imperial)0.25 Inch
Barrel Inside Diameter0.135 Inch
Stud Size#10
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMin
Minimum Conductor Size (Imperial)12 AWG
Maximum Conductor Size (Imperial)10 AWG
Maximum Conductor Size (Metric)5.26 mm²
Terminal StyleStandard
Fork TypeStandard
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal TypeFork
UL File NumberE23438
Insulation MaterialNon-insulated
Units per Case500.0
Clearance (C)0.29 Inch
