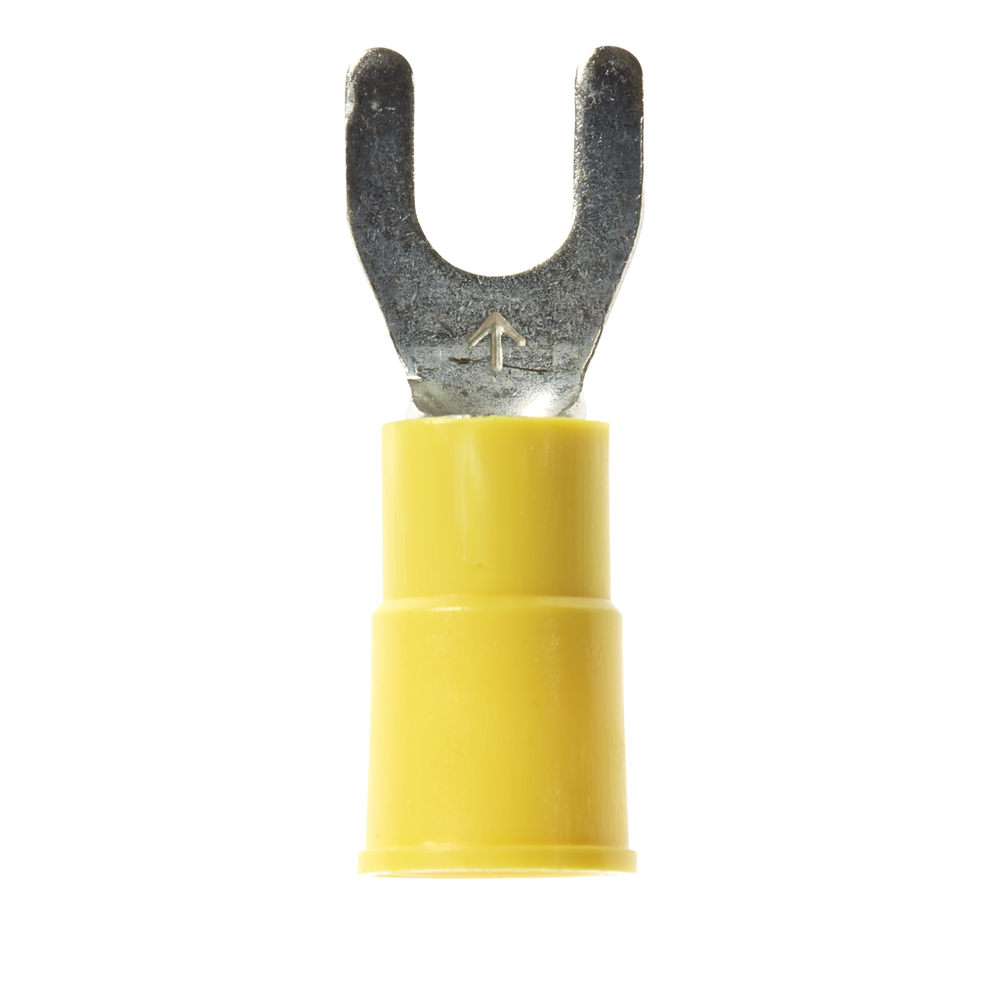

3M™ Scotchlok™ Fork, Vinyl Insulated Brazed Seam MV10-10FK, 12-10 AWG, 500/Case - 7100164102

Sold As: 500-Pack
SKU: 7100164102
MPN: 7100164102
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007019800
3M ID: 80610049647
5 Digit UPC: 1980
$233.36 ($0.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Wider-tongue design for use on free-standing studs
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Electrolytic copper construction offers good conductivity
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Overall Length (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)221.0
Stud Size#10
Barrel Length (Imperial)0.25 Inch
Minimum Conductor Size (Imperial)12 AWG
Overall Width (Imperial)0.38
Maximum Insulation Outer Diameter (Imperial)0.25
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Terminal StyleStandard
Overall Length (Imperial)1.03
Barrel StyleBrazed
Barrel Inside Diameter0.135 Inch
UL File NumberE23438
Packaging500 per bulk box
Terminal TypeFork
Insulation MaterialVinyl
Maximum Conductor Size (Metric)5.26 mm²
Units per Case500.0
Clearance (C)0.29 Inch
Dimension E0.84 Inch
Minimum Conductor Size (Metric)3.31 mm²
Overall Width (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Operating Temperature Range (Celsius)-40 °C to 105 °C
Maximum Conductor Size (Imperial)10 AWG
Maximum Operating Temperature (Celsius)105.0
Fork TypeStandard
