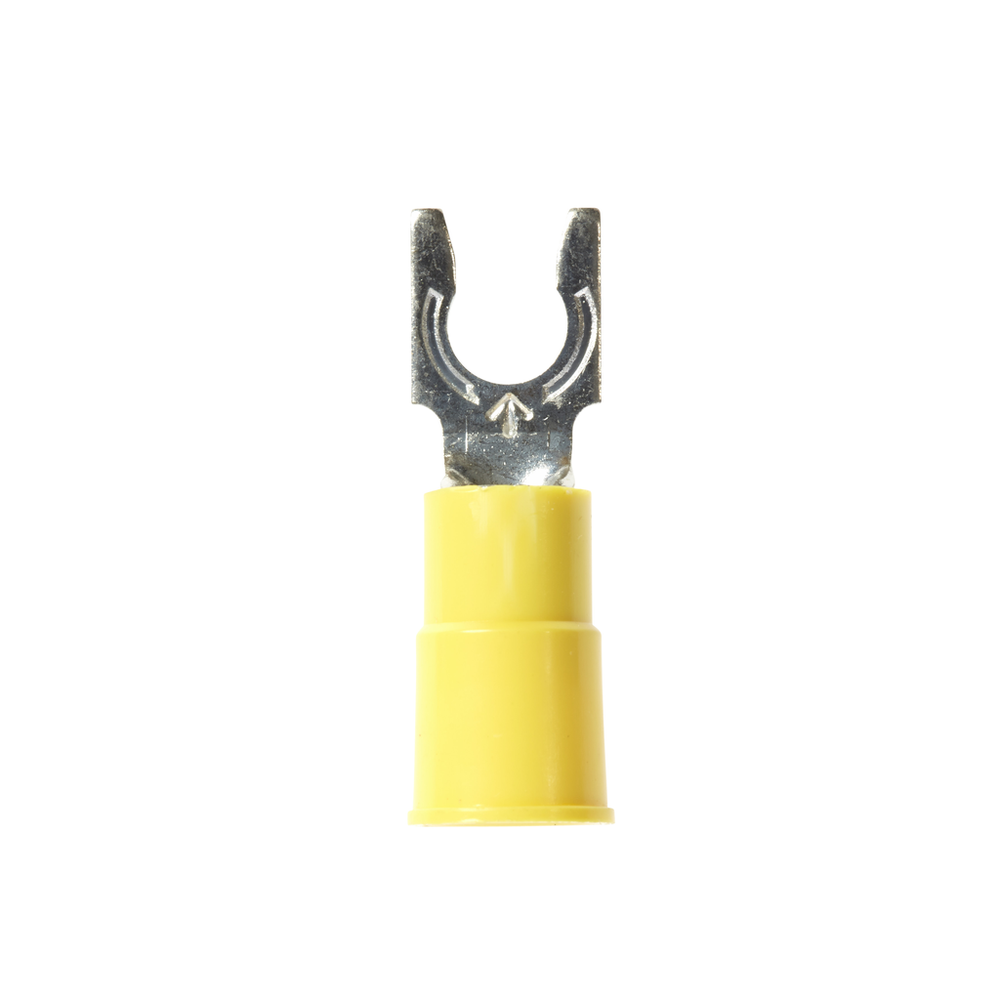

3M™ Scotchlok™ Locking Fork, Vinyl Insulated Brazed Seam MV10-10FLK, Stud Size 10, 500/Case - 7100164201

Sold As: 500-Pack
SKU: 7100164201
MPN: 7100164201
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007139645
3M ID: 80610134191
5 Digit UPC: 13964
$233.36 ($0.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Electrolytic copper construction offers good conductivity
  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Insulation MaterialVinyl
Maximum Conductor Size (Imperial)10 AWG
Maximum Operating Temperature (Fahrenheit)221.0
Barrel Length (Imperial)0.25 Inch
Minimum Conductor Size (Metric)3.31 mm²
Terminal StyleLocking
Overall Length (Imperial) UOMin
Clearance (C)0.28 Inch
Maximum Lock Width0.36 Inch
Fork TypeLocking
Maximum Operating Temperature (Fahrenheit) UOMDegree
Barrel Inside Diameter0.135 Inch
Maximum Insulation Outer Diameter (Imperial)0.25
Maximum Operating Temperature (Celsius) UOMDegree
Terminal TypeFork
Maximum Operating Temperature (Celsius)105.0
Dimension E0.83 Inch
Overall Length (Imperial)1.03
Maximum Insulation Outer Diameter (Imperial) UOMin
Stud Diameter (Imperial)0.19
Stud Diameter (Imperial) UOMin
Stud Diameter (Metric) UOMmm
Packaging500 per bulk box
Minimum Conductor Size (Imperial)12 AWG
Overall Width (Imperial)0.32
Stud Size#10
Maximum Conductor Size (Metric)5.26 mm²
UL File NumberE23438
Barrel StyleBrazed
Units per Case500.0
Overall Width (Imperial) UOMin
Stud Diameter (Metric)4.826
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
