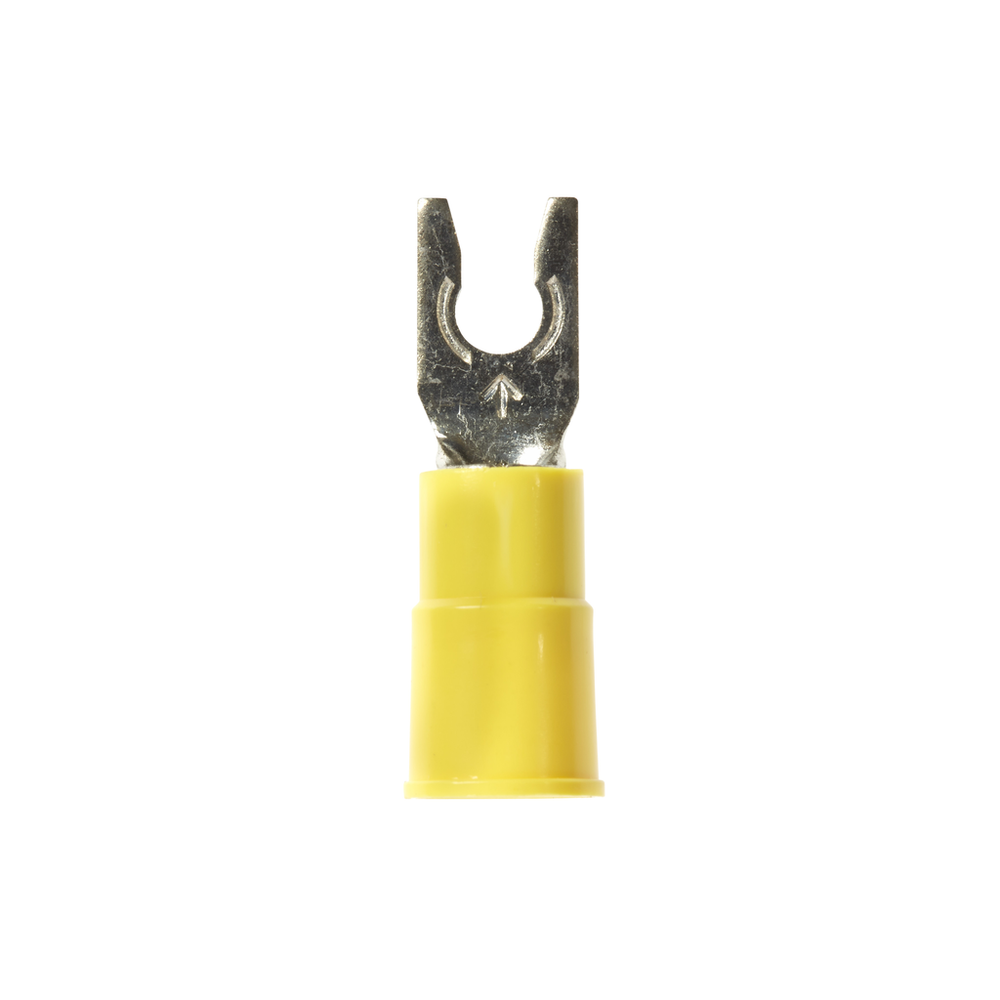

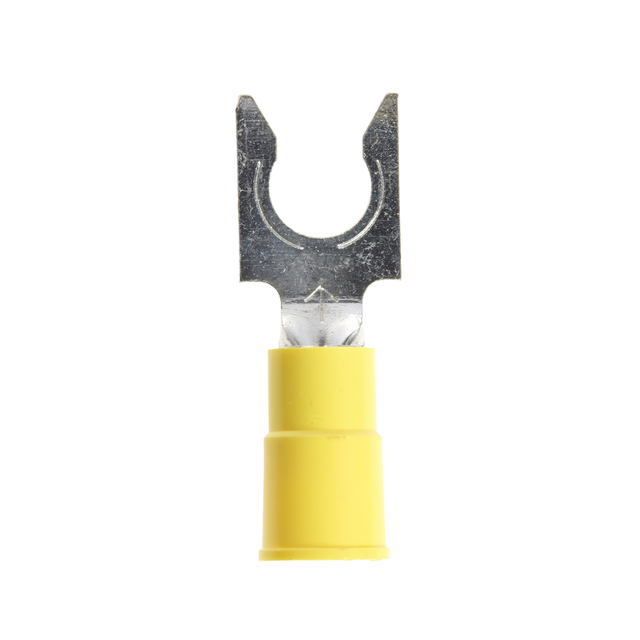

3M™ Scotchlok™ Locking Fork, Vinyl Insulated Brazed Seam MV10-6FLK, Stud Size 6, 500/Case - 7100164203

Sold As: 500-Pack
SKU: 7100164203
MPN: 7100164203
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007139492
3M ID: 80610134233
5 Digit UPC: 13949
$233.36 ($0.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Spring-like tongue firmly fits around the stud
  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Electrolytic copper construction offers good conductivity
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Metric)5.26 mm²
Minimum Conductor Size (Metric)3.31 mm²
Maximum Lock Width0.3 Inch
Maximum Conductor Size (Imperial)10 AWG
Maximum Operating Temperature (Celsius)105.0
Overall Length (Imperial)1.03
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Conductor Size (Imperial)12 AWG
Barrel StyleBrazed
Terminal TypeFork
Units per Case500.0
Stud Diameter (Metric)3.505
Barrel Inside Diameter0.135 Inch
Fork TypeLocking
Stud Size#6
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
UL File NumberE23438
Stud Diameter (Imperial) UOMin
Terminal StyleLocking
Packaging500 per bulk box
Clearance (C)0.28 Inch
Maximum Operating Temperature (Fahrenheit)221.0
Dimension E0.83 Inch
Stud Diameter (Imperial)0.138
Overall Width (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial)0.25
Maximum Insulation Outer Diameter (Imperial) UOMin
Stud Diameter (Metric) UOMmm
Overall Length (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
Overall Width (Imperial)0.28
Insulation MaterialVinyl
