3M Products & Supplies

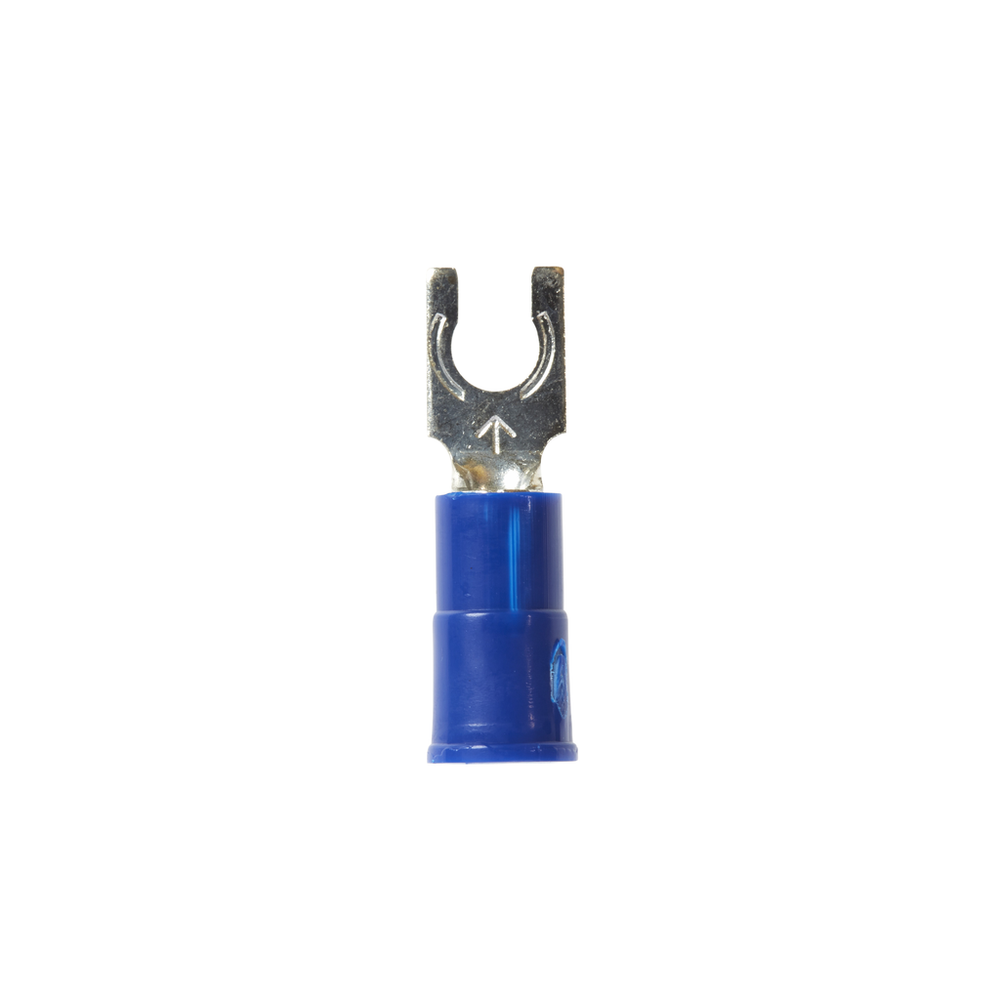

3M™ Scotchlok™ Locking Fork, Vinyl Insulated Brazed Seam MV14-6FLK, Stud Size 6, 1000/Case - 7100164206

Sold As: 1000-Pack
SKU: 7100164206
MPN: 7100164206
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007139072
3M ID: 80610134399
5 Digit UPC: 13907
$429.32 ($0.43 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial) UOMin
Overall Length (Imperial)0.88
Minimum Conductor Size (Imperial)16 AWG
Stud Diameter (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial)0.17
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
UL File NumberE23438
Units per Case1000.0
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)221.0
Terminal StyleLocking
Maximum Conductor Size (Imperial)14 AWG
Barrel StyleBrazed
Fork TypeLocking
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Metric)2.08 mm²
Overall Width (Imperial) UOMin
Stud Diameter (Metric) UOMmm
Barrel Inside Diameter0.09 Inch
Maximum Lock Width0.27 Inch
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial)0.25
Stud Diameter (Imperial)0.138
Maximum Operating Temperature (Celsius)105.0
Terminal TypeFork
Maximum Insulation Outer Diameter (Imperial) UOMin
Packaging1000 per bulk box
Clearance (C)0.25 Inch
Insulation MaterialVinyl
Dimension E0.7 Inch
Stud Diameter (Metric)3.505
Stud Size#6
Minimum Conductor Size (Metric)1.31 mm²
