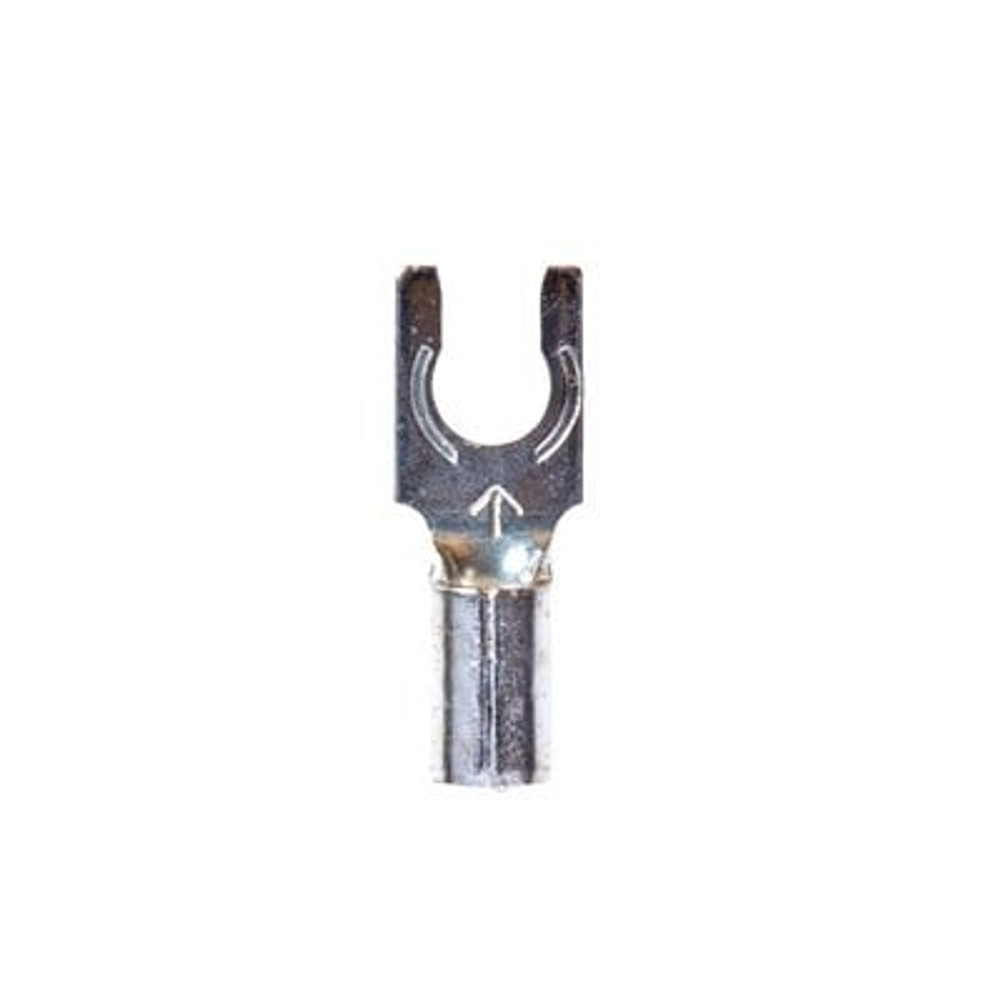

3M™ Scotchlok™ Locking Fork, Non-Insulated Brazed Seam M14-6FLK, Stud Size 6, 1000/Case - 7100164207

Sold As: 1000-Pack
SKU: 7100164207
MPN: 7100164207
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007137757
3M ID: 80610134456
5 Digit UPC: 13775
$292.21 ($0.29 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Beveled mouth offers easy insertion of wires
  • Electrolytic copper construction offers good conductivity
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Spring-like tongue firmly fits around the stud
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Barrel Length (Imperial)0.25 Inch
Insulation MaterialNon-insulated
Maximum Conductor Size (Metric)2.08 mm²
Packaging1000 per bulk box
Terminal StyleLocking
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
UL File NumberE23438
Dimension E0.5 Inch
Overall Width (Imperial)0.25
Stud Diameter (Metric)3.505
Barrel StyleBrazed
Maximum Conductor Size (Imperial)14 AWG
Overall Length (Imperial) UOMin
Stud Diameter (Imperial) UOMin
Stud Diameter (Imperial)0.138
Overall Length (Imperial)0.68
Overall Width (Imperial) UOMin
Stud Size#6
Fork TypeLocking
Terminal TypeFork
Minimum Conductor Size (Imperial)16 AWG
Barrel Inside Diameter0.09 Inch
Clearance (C)0.25 Inch
Units per Case1000.0
Minimum Conductor Size (Metric)1.31 mm²
Stud Diameter (Metric) UOMmm
Maximum Lock Width0.27 Inch
