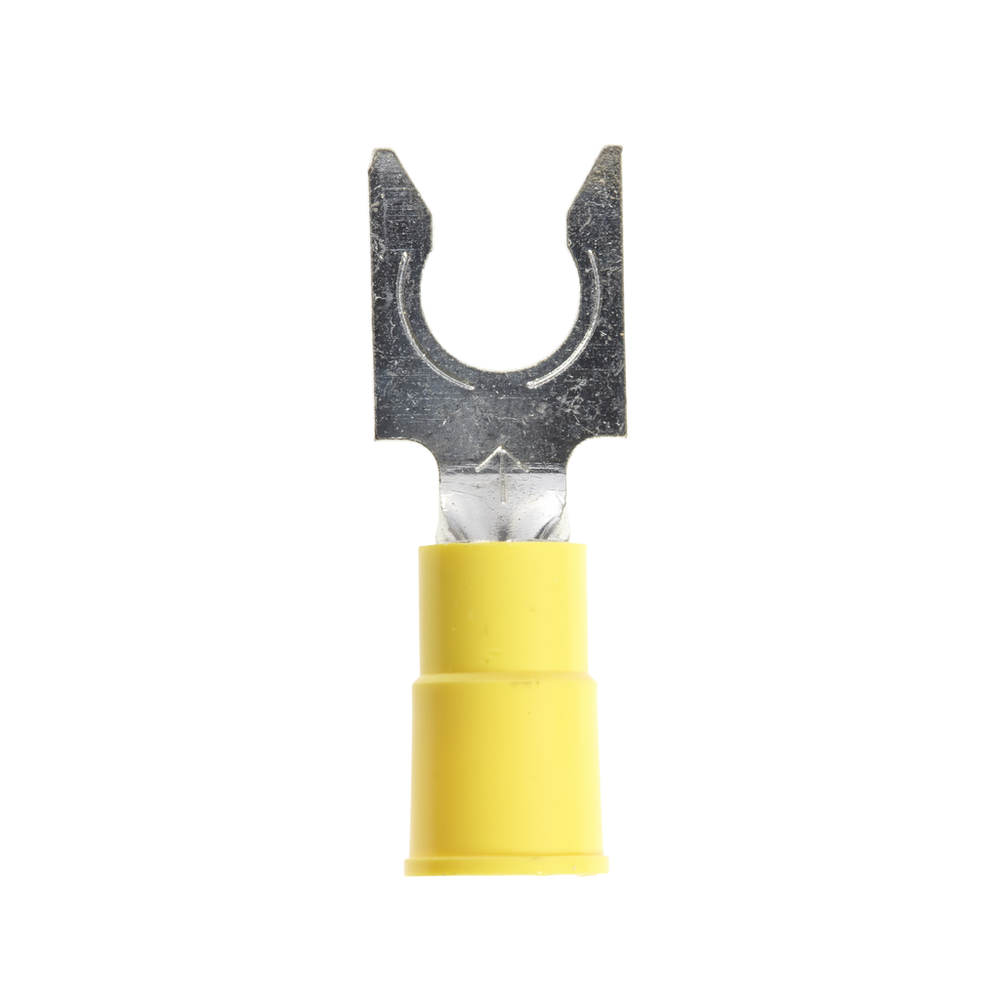

3M™ Scotchlok™ Locking Fork, Vinyl Insulated Brazed Seam MV10-14FLK, Stud Size 1/4, 500/Case - 7100164199

Sold As: 500-Pack
SKU: 7100164199
MPN: 7100164199
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007139720
3M ID: 80610134159
5 Digit UPC: 13972
$306.02 ($0.61 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Spring-like tongue firmly fits around the stud
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial)0.43
Barrel StyleBrazed
Fork TypeLocking
Maximum Operating Temperature (Fahrenheit) UOMDegree
Stud Size1/4 Inch
Maximum Insulation Outer Diameter (Imperial)0.25
Barrel Inside Diameter0.135 Inch
Maximum Lock Width0.48 Inch
Terminal StyleLocking
UL File NumberE23438
Overall Width (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Stud Diameter (Imperial)0.25
Terminal TypeFork
Dimension E0.99 Inch
Minimum Conductor Size (Metric)3.31 mm²
Stud Diameter (Metric) UOMmm
Maximum Conductor Size (Imperial)10 AWG
Overall Length (Imperial) UOMin
Maximum Conductor Size (Metric)5.26 mm²
Maximum Operating Temperature (Fahrenheit)221.0
Stud Diameter (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)1.24
Insulation MaterialVinyl
Maximum Operating Temperature (Celsius)105.0
Clearance (C)0.44 Inch
Maximum Insulation Outer Diameter (Imperial) UOMin
Units per Case500.0
Stud Diameter (Metric)6.35
Minimum Conductor Size (Imperial)12 AWG
Packaging500 per bulk box
