3M Products & Supplies

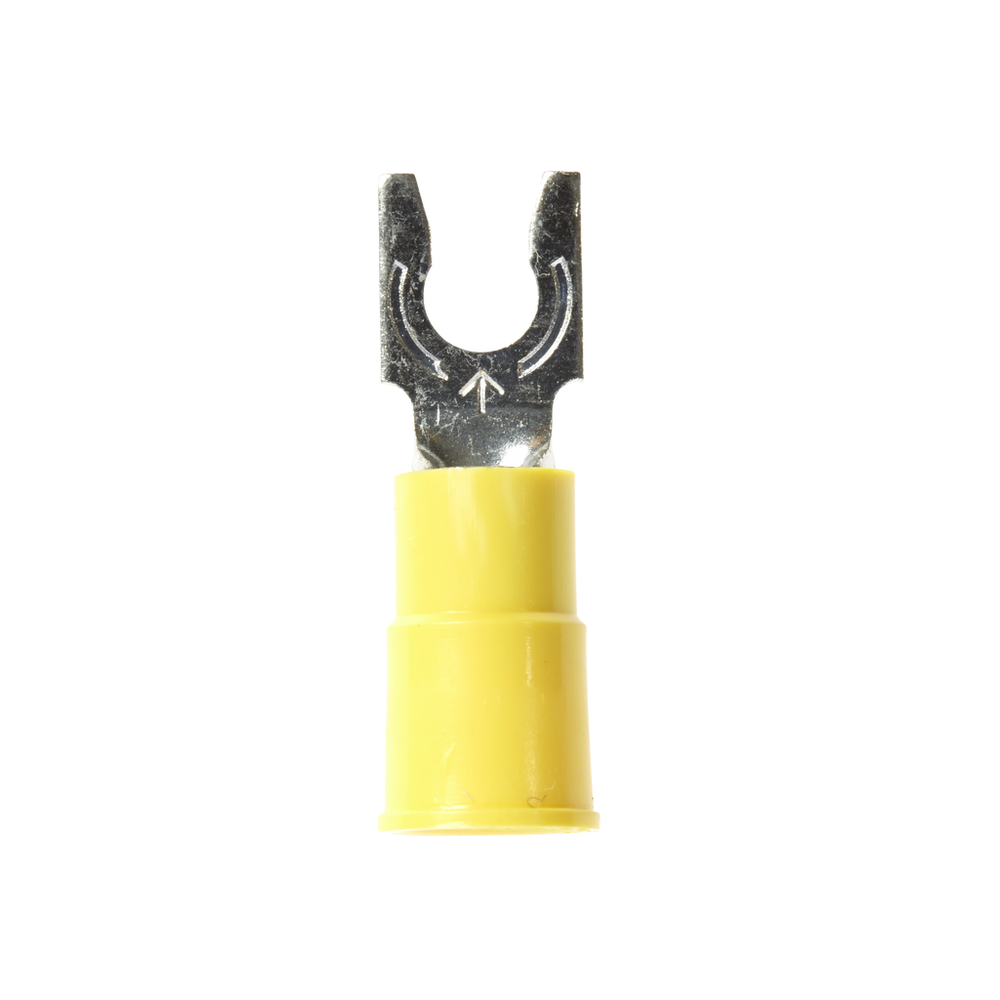

3M™ Scotchlok™ Locking Fork, Vinyl Insulated Brazed Seam MV10-8FLK, Stud Size 8, 500/Case - 7100164200

Sold As: 500-Pack
SKU: 7100164200
MPN: 7100164200
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007139560
3M ID: 80610134175
5 Digit UPC: 13956
$233.36 ($0.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Spring-like tongue firmly fits around the stud
  • Electrolytic copper construction offers good conductivity
  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Imperial)12 AWG
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Celsius) UOMDegree
Terminal TypeFork
Overall Width (Imperial)0.32
Maximum Insulation Outer Diameter (Imperial)0.25
Barrel Length (Imperial)0.25 Inch
Dimension E0.83 Inch
Stud Diameter (Metric) UOMmm
Barrel Inside Diameter0.135 Inch
Stud Diameter (Imperial)0.164
Stud Diameter (Imperial) UOMin
Clearance (C)0.28 Inch
Stud Diameter (Metric)4.166
Overall Length (Imperial) UOMin
Maximum Lock Width0.35 Inch
Maximum Operating Temperature (Fahrenheit)221.0
Overall Width (Imperial) UOMin
Terminal StyleLocking
Maximum Conductor Size (Metric)5.26 mm²
Units per Case500.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Insulation Outer Diameter (Imperial) UOMin
Minimum Conductor Size (Metric)3.31 mm²
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Conductor Size (Imperial)10 AWG
Barrel StyleBrazed
Packaging500 per bulk box
Insulation MaterialVinyl
Overall Length (Imperial)1.03
Fork TypeLocking
Stud Size#8
UL File NumberE23438
