3M Products & Supplies

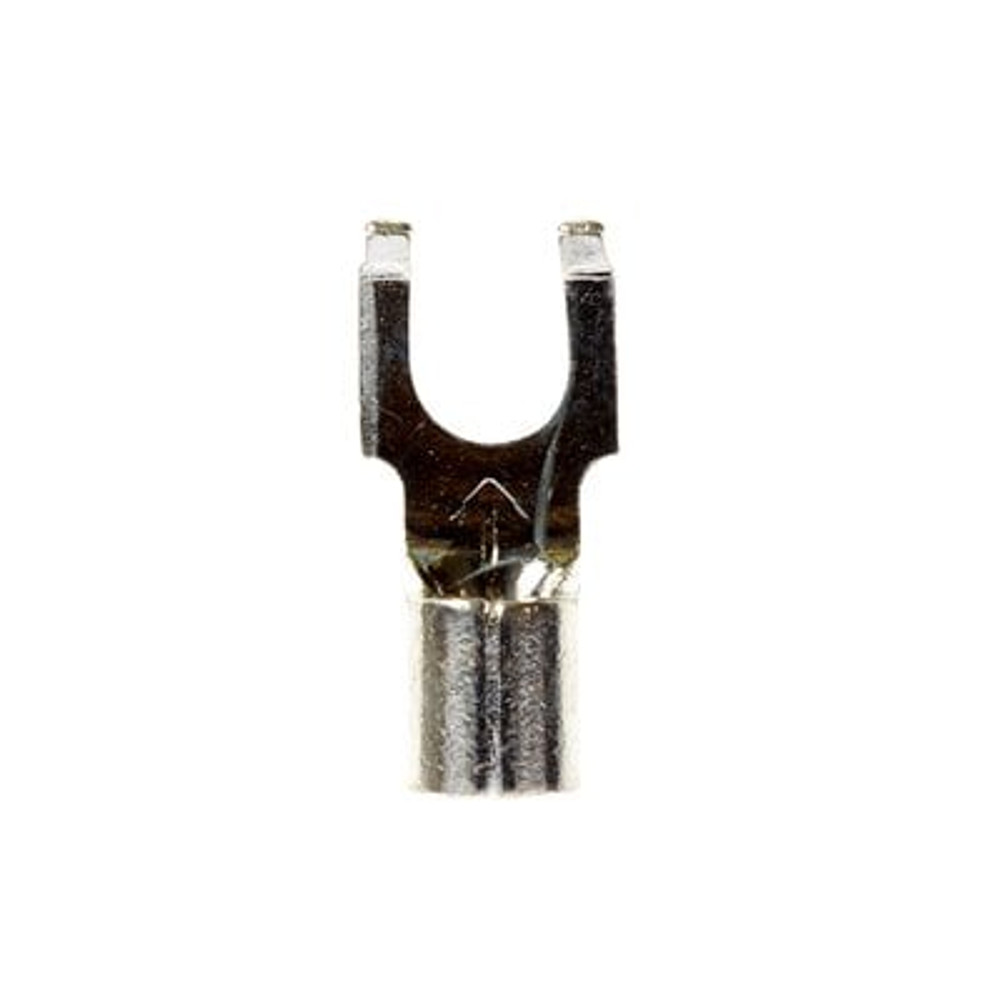

3M™ Scotchlok™ Block Flanged Fork, Non-Insulated Brazed Seam M10-10FFBK, 12-10 AWG, 500/Case - 7100164121

Sold As: 500-Pack
SKU: 7100164121
MPN: 7100164121
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007020288
3M ID: 80610050173
5 Digit UPC: 2028
$218.39 ($0.44 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Flanged Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands temperatures of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Beveled mouth offers easy insertion of wires
  • Stud size #10
  • Suitable for use in a terminal block
  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Electrolytic copper construction offers good conductivity
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Fork TypeFlanged Block
Terminal StyleFlanged Block
Overall Width (Imperial) UOMin
Insulation MaterialNon-insulated
Barrel StyleBrazed
Packaging500 per bulk box
Clearance (C)0.29 Inch
Stud Size#10
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
UL File NumberE23438
Minimum Conductor Size (Metric)3.31 mm²
Minimum Conductor Size (Imperial)12 AWG
Overall Length (Imperial)0.73
Barrel Length (Imperial)0.25 Inch
Terminal TypeFork
Maximum Conductor Size (Metric)5.26 mm²
Maximum Conductor Size (Imperial)10 AWG
Units per Case500.0
Barrel Inside Diameter0.135 Inch
Overall Width (Imperial)0.32
Overall Length (Imperial) UOMin
Dimension E0.54 Inch
