3M Products & Supplies

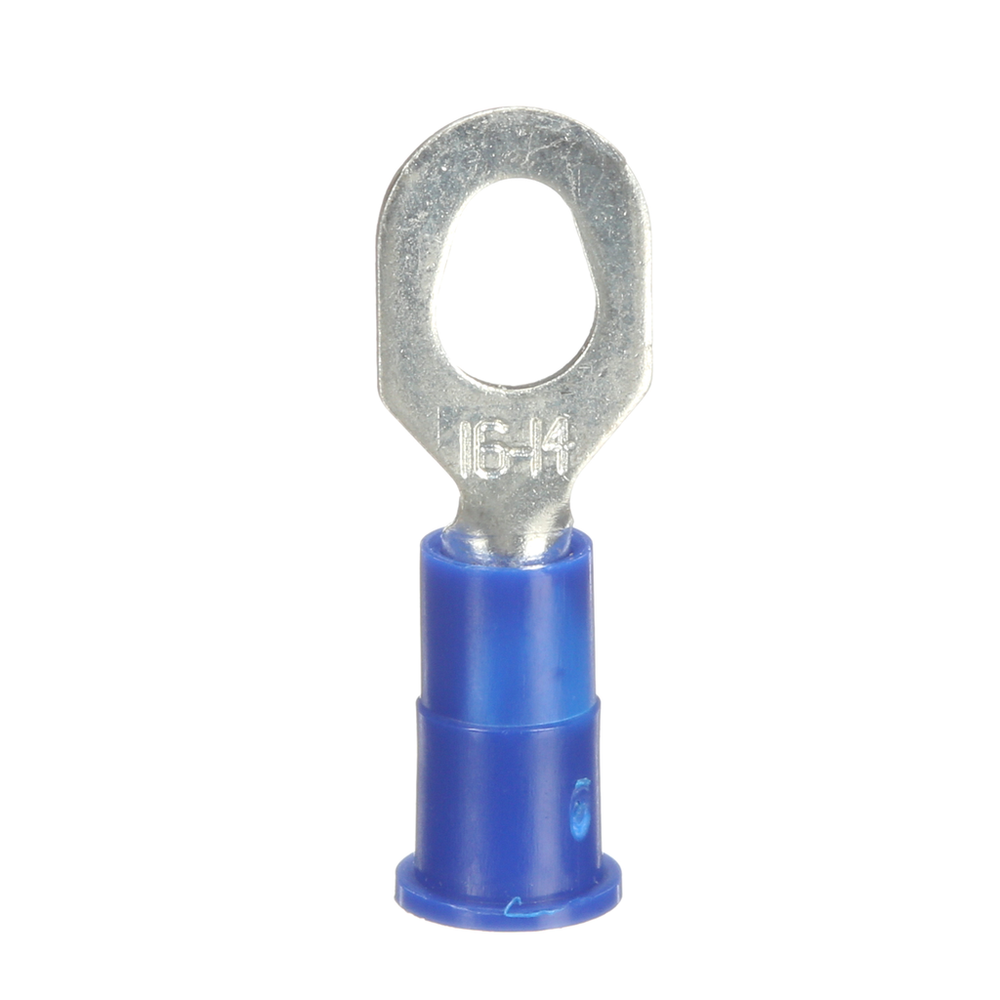

3M™ Scotchlok™ Multi-Stud Ring Tongue, Vinyl Insulated Brazed Seam MV14-610RK, 16-14 AWG, 1000/Case - 7000132259

Sold As: 1000-Pack
SKU: 7000132259
MPN: 7000132259
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007018513
3M ID: 80610047781
5 Digit UPC: 1851
$429.32 ($0.43 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Brazed Seam Multi-Stud Ring Tongue terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Multi-stud style ring tongue fits around multiple stud sizes
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)1.01
Terminal TypeRing
Maximum Conductor Size (Metric)2.08
Minimum Conductor Size (Metric)1.31 mm²
Product ColorBlue
Overall Width (Imperial)0.34
Insulation MaterialVinyl
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMin
Maximum Conductor Size (Imperial)14 AWG
Minimum Conductor Size (Imperial)16 AWG
Maximum Operating Temperature (Celsius)105.0
