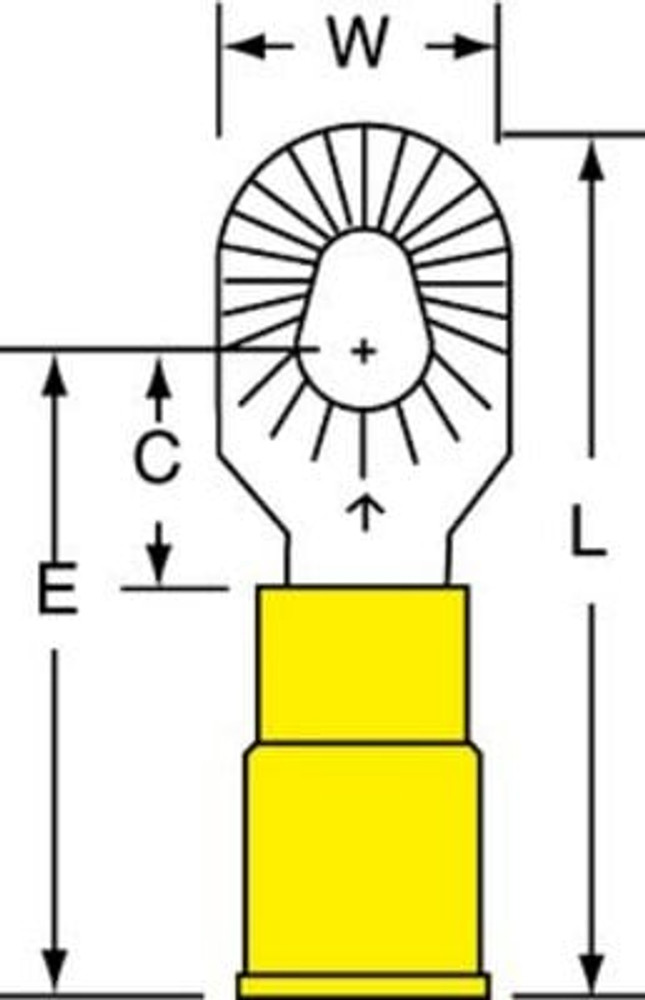

3M™ Scotchlok™ Multi-Stud Ring Tongue, Vinyl Insulated Brazed Seam MV10-610RK, 12-10 AWG, 500/Case - 7000132269

Sold As: 500-Pack
SKU: 7000132269
MPN: 7000132269
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007020998
3M ID: 80610050991
5 Digit UPC: 2099
$233.36 ($0.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Brazed Seam Multi-Stud Ring Tongue terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Multi-stud style ring tongue fits around multiple stud sizes
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Imperial)10 AWG
Minimum Conductor Size (Metric)3.31 mm²
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
Minimum Conductor Size (Imperial)12 AWG
Insulation MaterialVinyl
Overall Length (Imperial)1.19
Product ColorYellow
Overall Length (Imperial) UOMin
Terminal TypeRing
Maximum Operating Temperature (Celsius)105.0
Maximum Conductor Size (Metric)5.26
Overall Width (Imperial)0.39
