3M Products & Supplies

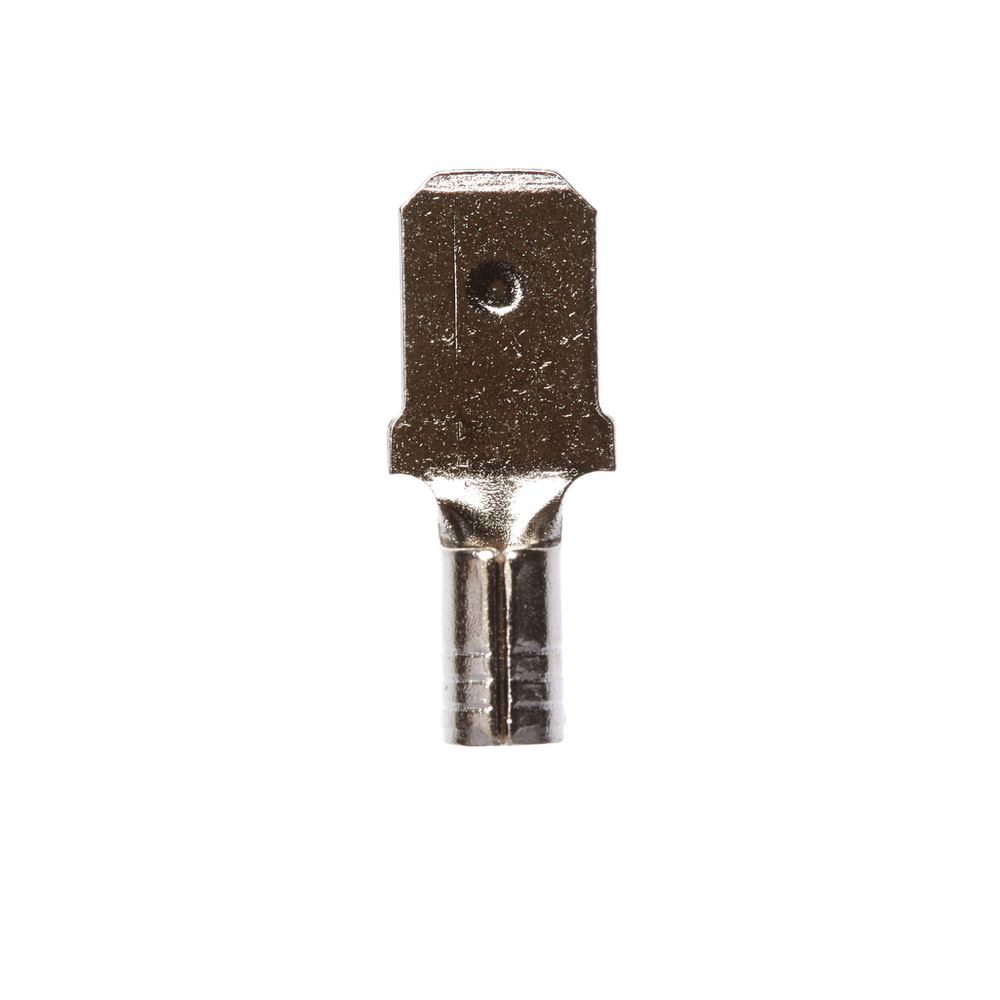

3M™ Scotchlok™ High Temperature Male Disconnect Non-Insulated, 100/bottle, MU14-250DMHTX, 500/Case - 7100165315

Sold As: 500-Pack
SKU: 7100165315
MPN: 7100165315
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128589793
3M ID: 80611466253
5 Digit UPC: 58979
$486.95 ($0.97 / Count)
Hurry up! Current stock:

Product Description

Features

  • Made of durable steel for high-temperature applications and has corrosion-resistant nickel plating
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
  • This high-temperature male disconnect terminal offers excellent holding force
  • Allows for quick and easy disconnect of wires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Male Tab Width (W')0.250 Inch
Connection Width (Metric) UOMmm
Connection Width (Imperial)0.25
Pad Width0.25
Insulation MaterialNon-insulated
Disconnect TypeMale
Units per Case500.0
Solution forWireless Network: Infrastructure Accessories
Barrel StyleButted
Connection Width (Imperial) UOMin
Minimum Conductor Size (Metric)1.5 mm²
Packaging100 per bottle
Maximum Conductor Size (Metric)2.5 mm²
Terminal StyleHigh Temp
Minimum Conductor Size (Imperial)16 AWG
Maximum Conductor Size (Imperial)14 AWG
Overall Length (Imperial)0.73
Connection Width (Metric)6.35
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial) UOMin
Terminal TypeDisconnect
Barrel Inside Diameter0.090 Inch
Barrel Length (Imperial)0.25 Inch
Fastener OrientationMale
