3M Products & Supplies

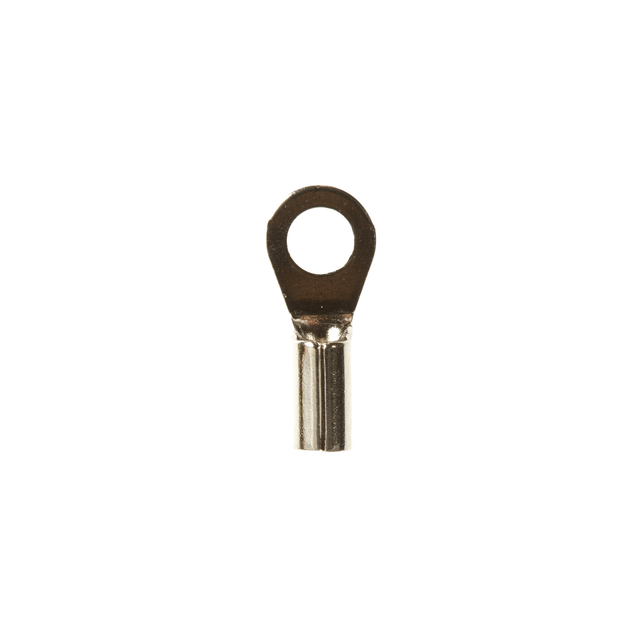

3M™ Scotchlok™ High Temperature Ring Non-Insulated, 100/bottle, MU14-6RHT/SX, 500/Case - 7100165314

Sold As: 500-Pack
SKU: 7100165314
MPN: 7100165314
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128589755
3M ID: 80611466212
5 Digit UPC: 58975
$337.12 ($0.67 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Butted Seam High-Temperature Ring Tongue ensures an ideal fit while offering reliable and safe performance. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 900 degrees F (482 degrees C). Steel construction offers durability and a nickel-plated finish resists corrosion.

Features

  • Beveled mouth offers easy insertion of wires
  • Withstands a maximum temperature of 900 degrees F (482 degrees C)
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • For use in ovens, motors, light fixtures and other applications
  • Made of durable steel for high-temperature applications and has nickel plating for corrosion resistance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Insulation MaterialNon-insulated
Maximum Conductor Size (Metric)2.08
Maximum Operating Temperature (Celsius) UOMDegree
Connection Width (Imperial) UOMin
Connection Width (Metric) UOMmm
Minimum Conductor Size (Metric)1.31 mm²
Maximum Conductor Size (Imperial)14 AWG
Connection Width (Imperial)0.138
Overall Width (Imperial) UOMin
Terminal TypeRing
Overall Width (Imperial)0.25
Maximum Operating Temperature (Celsius)482.0
Overall Length (Imperial) UOMin
Minimum Conductor Size (Imperial)16 AWG
Connection Width (Metric)3.5
Overall Length (Imperial)0.6
