3M Products & Supplies

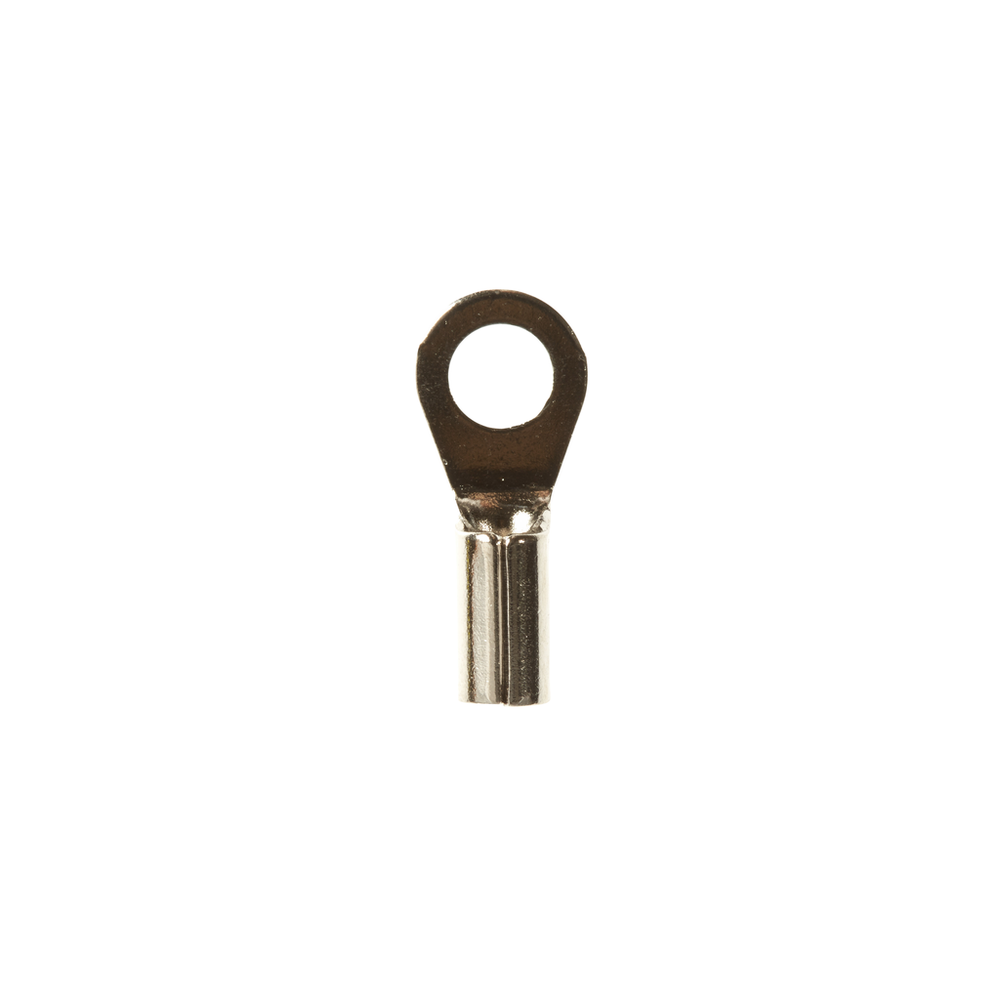

3M™ Scotchlok™ High Temperature Ring Non-Insulated, 100/bottle, MU18-6RHT/SX, 500/Case - 7000133410

Sold As: 500-Pack
SKU: 7000133410
MPN: 7000133410
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128589557
3M ID: 80611466014
5 Digit UPC: 58955
$337.12 ($0.67 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Butted Seam High-Temperature Ring Tongue ensures an ideal fit while offering reliable and safe performance. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 900 degrees F (482 degrees C). Steel construction offers durability and a nickel-plated finish resists corrosion.

Features

  • For use in ovens, motors, light fixtures and other applications
  • Made of durable steel for high-temperature applications and has nickel plating for corrosion resistance
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a maximum temperature of 900 degrees F (482 degrees C)
  • Beveled mouth offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Insulation MaterialNon-insulated
Overall Width (Metric)6.35
Overall Length (Metric)15.24
Maximum Conductor Size (Imperial)18 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMin
Minimum Conductor Size (Metric)0.326 mm²
Maximum Operating Temperature (Celsius)482.0
Connection Width (Imperial) UOMin
Connection Width (Metric)3.5
Maximum Conductor Size (Metric)0.823
Connection Width (Imperial)0.138
Connection Width (Metric) UOMmm
Overall Width (Imperial)0.25
Product ColorMetal
Overall Width (Metric) UOMmm
Overall Length (Imperial)0.6
Overall Width (Imperial) UOMin
Minimum Conductor Size (Imperial)22 AWG
Overall Length (Metric) UOMmm
Terminal TypeRing
