3M Products & Supplies

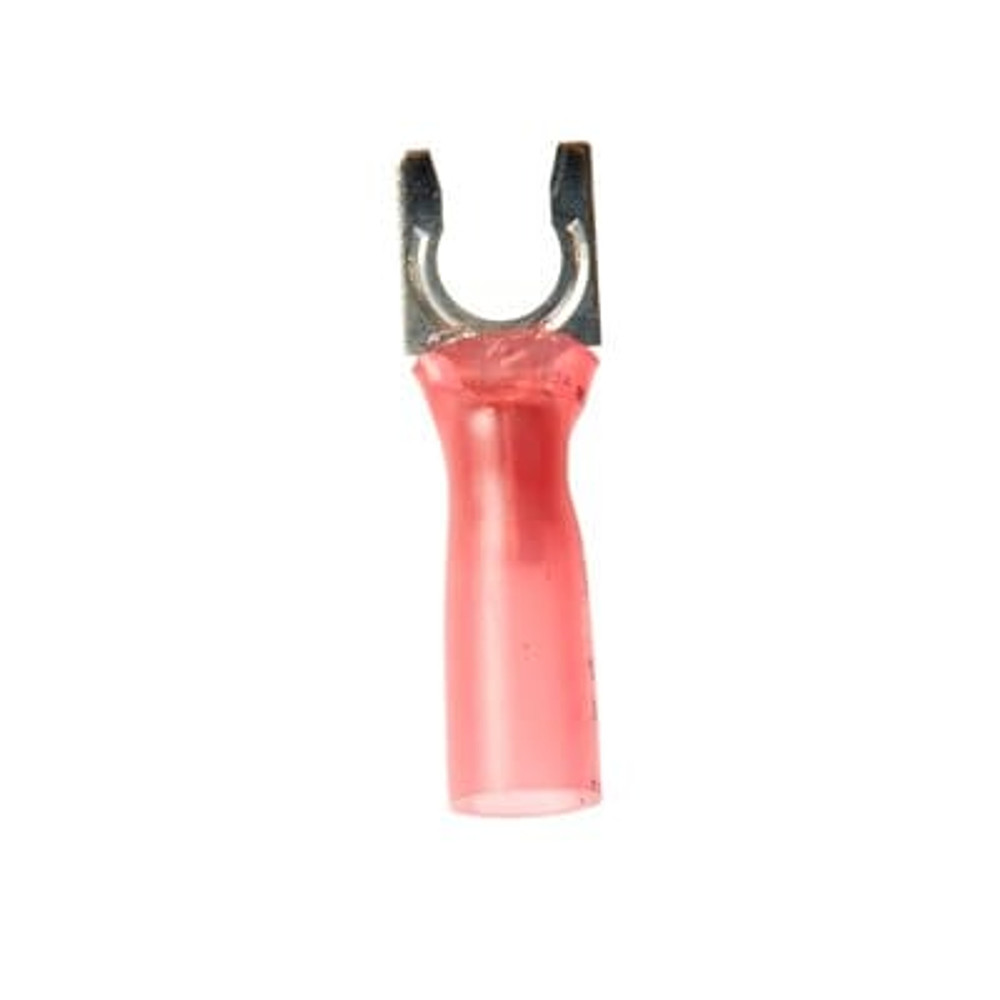

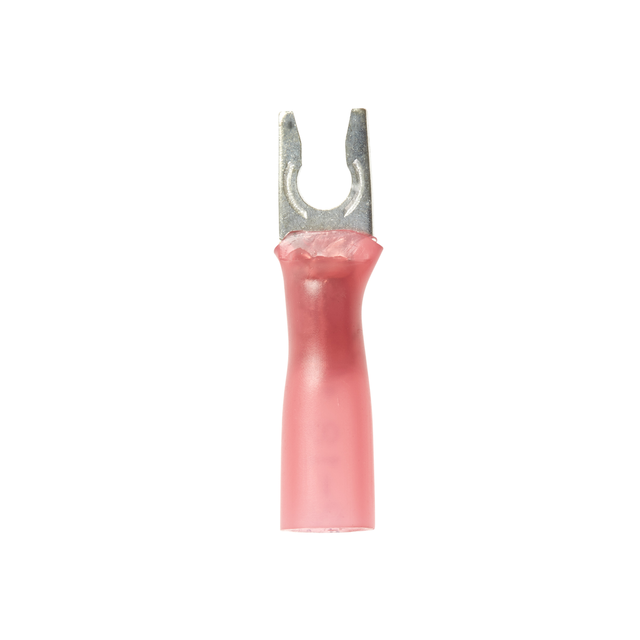

3M™ Scotchlok™ Locking Fork Heatshrink, 25/bottle, MH18-10FLX, spring-like tongue firmly fits around the stud, 125/Case - 7010398218

Sold As: 25-Pack
SKU: 7010398218
MPN: 7010398218
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128589158
3M ID: 80611465610
5 Digit UPC: 58915
$30.90 ($1.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Heat Shrink Locking Fork terminal has a spring-like tongue to securely lock around the stud. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Electrolytic copper construction offers good conductivity
  • Spring-like tongue firmly fits around the stud
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)

Downloads

Specifications

Country of OriginUnited States
Terminal TypeFork
Minimum Conductor Size (Metric)0.326 mm²
Maximum Operating Temperature (Fahrenheit)221.0
Insulation MaterialHeat Shrink
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Conductor Size (Imperial)18 AWG
Units per Case125.0
Barrel Inside Diameter0.070 Inch
Maximum Conductor Size (Metric).0823 mm²
Overall Length (Imperial)1.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Fahrenheit) UOMDegree
Fork TypeLocking
Clearance (C)0.15 Inch
Dimension E0.76 Inch
Barrel StyleBrazed
Terminal StyleLocking
Minimum Conductor Size (Imperial)22 AWG
Maximum Operating Temperature (Celsius)105.0
Overall Width (Imperial)0.32
Stud Size#10
Packaging25 per bottle
UL File NumberE23438
Overall Width (Imperial) UOMin
