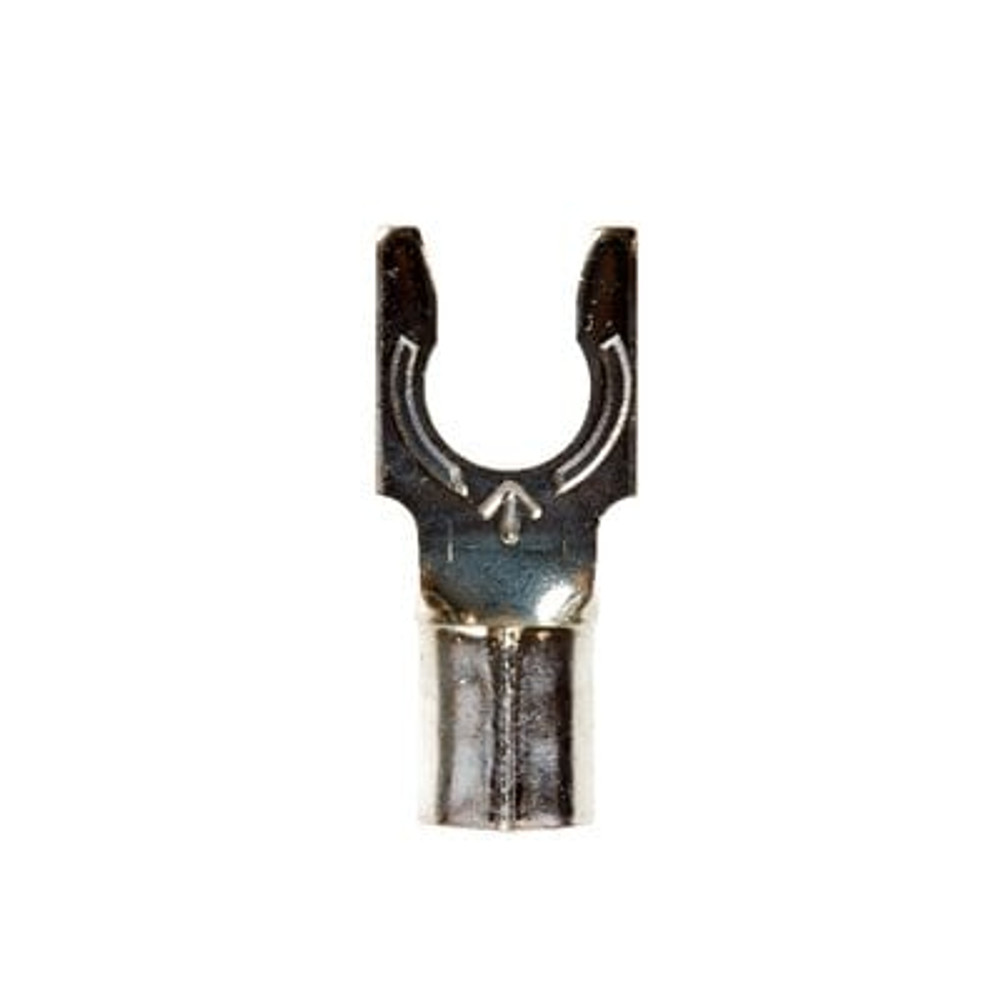

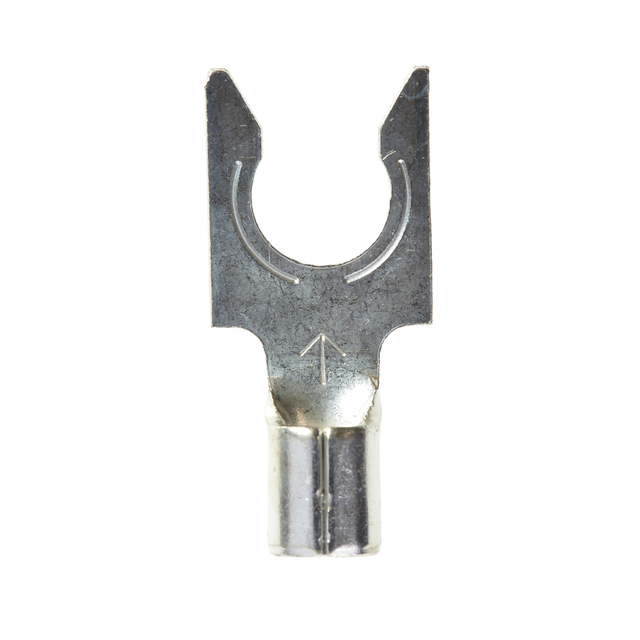

3M™ Scotchlok™ Locking Fork Non-Insulated, 50/bottle, M10-10FLX, spring-like tongue firmly fits around the stud, 500/Case - 7100165263

Sold As: 500-Pack
SKU: 7100165263
MPN: 7100165263
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128588342
3M ID: 80611464803
5 Digit UPC: 58834
$383.57 ($0.77 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Spring-like tongue firmly fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Beveled mouth offers easy insertion of wires
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Electrolytic copper construction offers good conductivity

Downloads

Specifications

Country of OriginUnited States
Packaging50 per bottle
Overall Length (Imperial)0.73
Insulation MaterialNon-insulated
Stud Size#10
Overall Width (Imperial) UOMin
Fork TypeLocking
Maximum Conductor Size (Imperial)10 AWG
Minimum Conductor Size (Imperial)12 AWG
Clearance (C)0.28 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal StyleLocking
Maximum Lock Width0.36 Inch
Minimum Conductor Size (Metric)3.31 mm²
Maximum Conductor Size (Metric)5.26 mm²
Overall Width (Imperial)0.32
Dimension E0.53 Inch
Barrel StyleBrazed
Terminal TypeFork
UL File NumberE23438
Overall Length (Imperial) UOMin
Barrel Inside Diameter0.135 Inch
Units per Case500.0
