3M™ Scotchlok™ Locking Fork, Non-Insulated Brazed Seam M10-14FLK, Stud Size 1/4, 500/Case - 7100164202

Sold As: 500-Pack
SKU: 7100164202
MPN: 7100164202
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007138501
3M ID: 80610134217
5 Digit UPC: 13850
$214.66 ($0.43 / Count)
Hurry up! Current stock:

Product Description

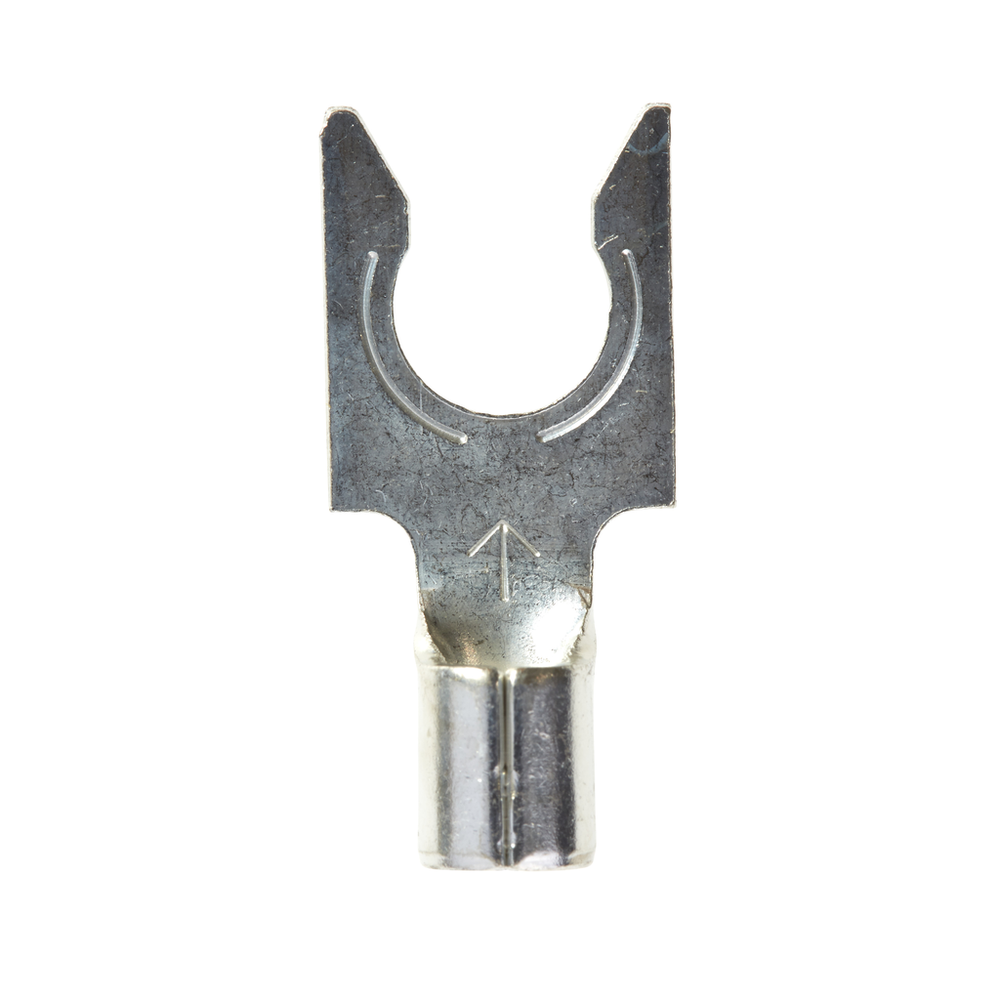

3M™ Scotchlok™ Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Beveled mouth offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Electrolytic copper construction offers good conductivity
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Terminal TypeFork
Maximum Conductor Size (Metric)5.26 mm²
Packaging500 per bulk box
Fork TypeLocking
Barrel Inside Diameter0.135 Inch
Dimension E0.69 Inch
Barrel StyleBrazed
Minimum Conductor Size (Imperial)12 AWG
Maximum Conductor Size (Imperial)10 AWG
Maximum Lock Width0.48 Inch
Stud Diameter (Metric)6.35
Minimum Conductor Size (Metric)3.31 mm²
Overall Length (Imperial)0.94
Terminal StyleLocking
Stud Size1/4 Inch
Overall Width (Imperial) UOMin
UL File NumberE23438
Stud Diameter (Imperial) UOMin
Units per Case500.0
Stud Diameter (Metric) UOMmm
Stud Diameter (Imperial)0.25
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial) UOMin
Insulation MaterialNon-insulated
Overall Width (Imperial)0.43
Barrel Length (Imperial)0.25 Inch
Clearance (C)0.44 Inch
