3M Products & Supplies

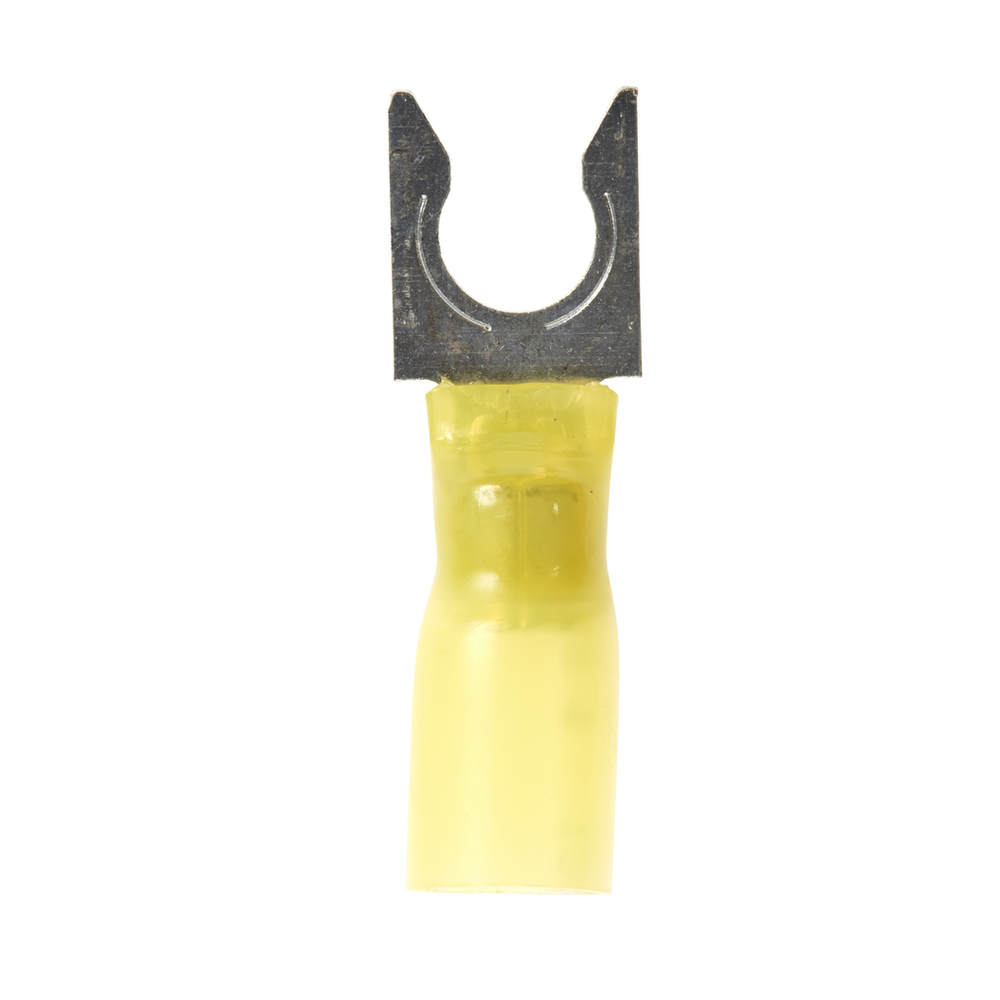

3M™ Scotchlok™ Locking Fork, Heat Shrink Brazed Seam MH10-14FLK, Stud Size 1/4, 250/Case - 7100164269

Sold As: 250-Pack
SKU: 7100164269
MPN: 7100164269
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007063117
3M ID: 80610456446
5 Digit UPC: 6311
$138.23 ($0.55 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Heat Shrink Locking Fork terminal has a spring-like tongue to securely lock around the stud. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Spring-like tongue firmly fits around the stud
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Electrolytic copper construction offers good conductivity
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Barrel Length (Imperial)0.25 Inch
Stud Diameter (Imperial) UOMin
Terminal TypeFork
Insulation MaterialHeat Shrink
Minimum Conductor Size (Imperial)12 AWG
Overall Length (Imperial)1.2
Clearance (C)0.3 Inch
Barrel Inside Diameter0.135 Inch
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)0.43
Overall Width (Imperial) UOMin
Fork TypeLocking
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Dimension E0.95 Inch
Stud Diameter (Metric)6.35
Terminal StyleLocking
Maximum Operating Temperature (Fahrenheit)221.0
Overall Length (Imperial) UOMin
Stud Diameter (Imperial)0.25
Stud Diameter (Metric) UOMmm
Barrel StyleBrazed
Minimum Conductor Size (Metric)3.31 mm²
Maximum Operating Temperature (Celsius)105.0
Maximum Conductor Size (Imperial)10 AWG
Packaging250 per bulk box
Maximum Conductor Size (Metric)5.26 mm²
Stud Size1/4 Inch
Maximum Operating Temperature (Fahrenheit) UOMDegree
Units per Case250.0
