3M Products & Supplies

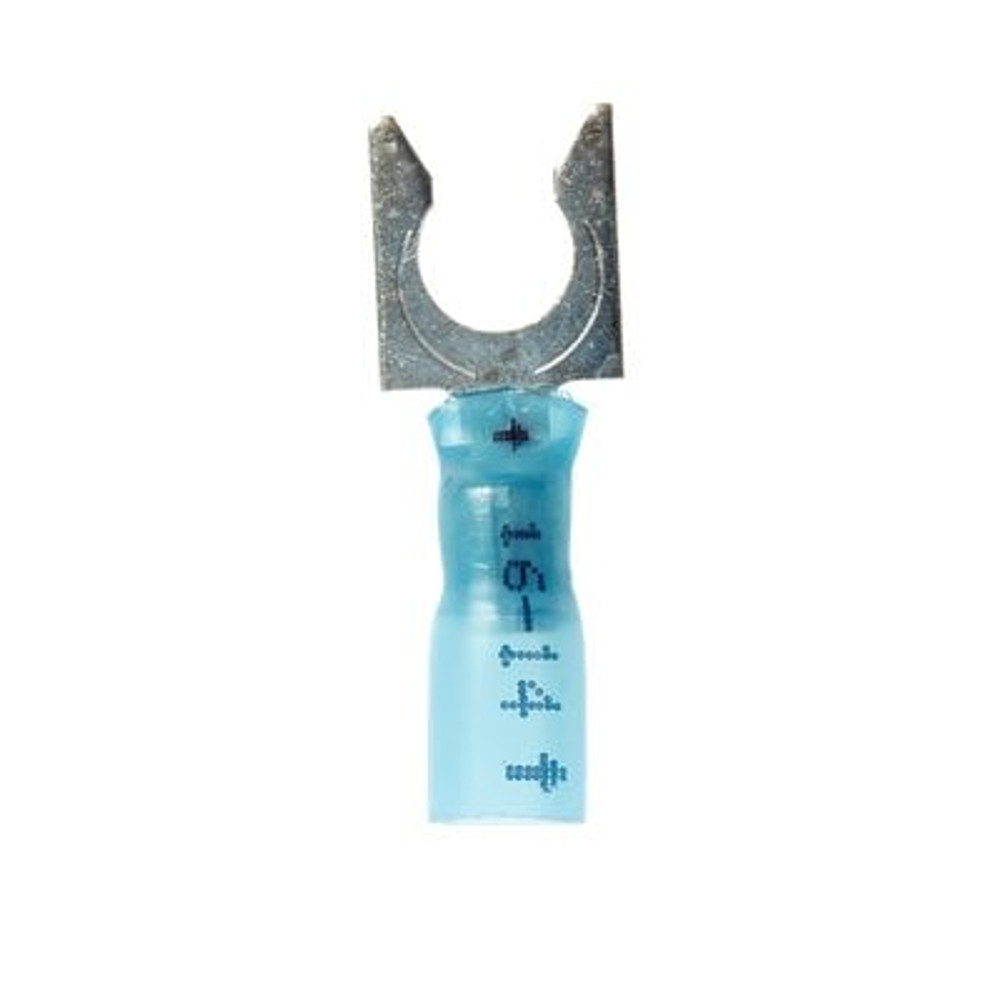

3M™ Scotchlok™ Locking Fork, Heat Shrink Brazed Seam MH14-14FLK, Stud Size 1/4, 250/Case - 7100164276

Sold As: 250-Pack
SKU: 7100164276
MPN: 7100164276
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007063339
3M ID: 80610530166
5 Digit UPC: 6333
$191.79 ($0.77 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Heat Shrink Locking Fork terminal has a spring-like tongue to securely lock around the stud. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Electrolytic copper construction offers good conductivity
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Spring-like tongue firmly fits around the stud
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)

Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Imperial)16 AWG
Barrel Inside Diameter0.09 Inch
Overall Length (Imperial)1.1
Stud Diameter (Imperial) UOMin
Barrel StyleBrazed
Minimum Conductor Size (Metric)1.31 mm²
Stud Size1/4 Inch
Maximum Operating Temperature (Fahrenheit)221.0
Dimension E0.85 Inch
Overall Width (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Stud Diameter (Metric)6.35
Packaging250 per bulk box
Maximum Conductor Size (Imperial)14 AWG
Stud Diameter (Metric) UOMmm
Overall Length (Imperial) UOMin
Fork TypeLocking
Terminal TypeFork
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)0.43
Stud Diameter (Imperial)0.25
Terminal StyleLocking
Maximum Operating Temperature (Fahrenheit) UOMDegree
Insulation MaterialHeat Shrink
Clearance (C)0.27 Inch
Maximum Operating Temperature (Celsius)105.0
Maximum Conductor Size (Metric)2.08 mm²
Units per Case250.0
